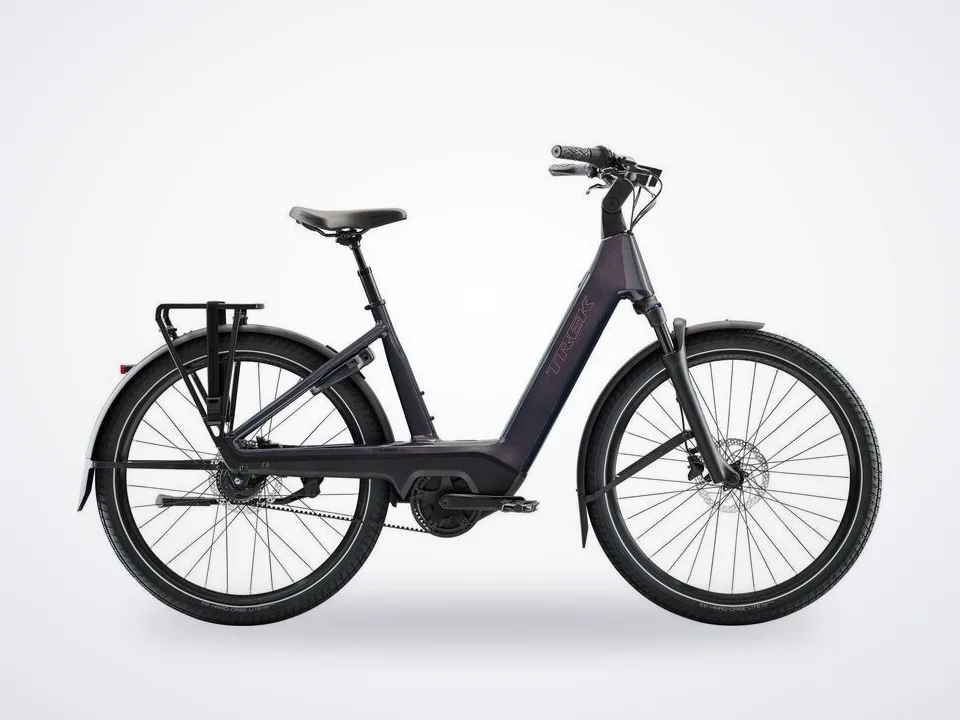

Trek Charter+ 4 Nexus 5 Belt 800 Wh Lowstep
In stock at 2 shops in Edinburgh
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The Charter+ 4 Nexus 5 Belt 800 Wh low-step is a low-maintenance and easy-to-use city e-bike for commutes, joyrides and everyday errands. Its adjustable cockpit lets you customise the ride fit from an upright, comfort-first position to a more active pedal-efficient fit. It comes ready to roll with an e-bike-specific Shimano Nexus 5 internal gear hub paired with a long lasting and silent Gates CDC belt and a Bosch Performance Line motor with 800 Wh battery for your biggest adventures. It's topped off with a 63 mm SR Suntour coil-sprung fork to smooth out rough r
Show full description and specs
Technology
Assembled in Germany: Explore the factory in Saxony, Germany, where every European Trek, Electra, and Diamant bike is built.
Specification
Frame: Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR
- Frame Material
- Aluminium
- Rim Size
- 27.5
- Fork
- SR Suntour
- Fork
- SR Suntour SF25-NVX32, coil spring, preload adjuster, 5mm ThruSkew, 63mm travel
- Tires
- Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
- Hub Front
- Shimano Tourney HB-QC300, centerlock
- Hub Rear
- Shimano Nexus C7000, 5-speed
Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
- Shifter
- Shimano
- Shifters
- Shimano Nexus C7000, 5 speed
- Crank
- ProWheel alloy, 170 mm length
- Cassette
- Gates CDX 32T, stainless steel
- Brake
- Shimano
- Brakeset
- Shimano MT200 hydraulic disc
- Brake Rotor
- Shimano RT30, CentreLock, 180 mm // Shimano CL300, centerlock, 180mm
- Pedals
- Bontrager City pedals
- Saddle
- Bontrager Boulevard
- Seatpost
- Alloy, suspension, 31.6 mm, 300 mm length
- Handlebar
- Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
- Stem
- Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length
- Grips
- Trek ergonomic PRO, lock-on
- Fenders
- Trek Charter alloy mudguard
- Kickstand
- Pletscher Comp Flex 40
- Battery
- Bosch PowerTube 800Wh, smart system
- Controller
- Bosch Purion 200
- Motor
- Bosch Performance Line, 250W, 75Nm, 20mph
- Size Chart Rider Height
- Rider Height - 170.0 - 185.0
- Size Chart Rider Inseam
- Inseam - 80.0 - 99.0
