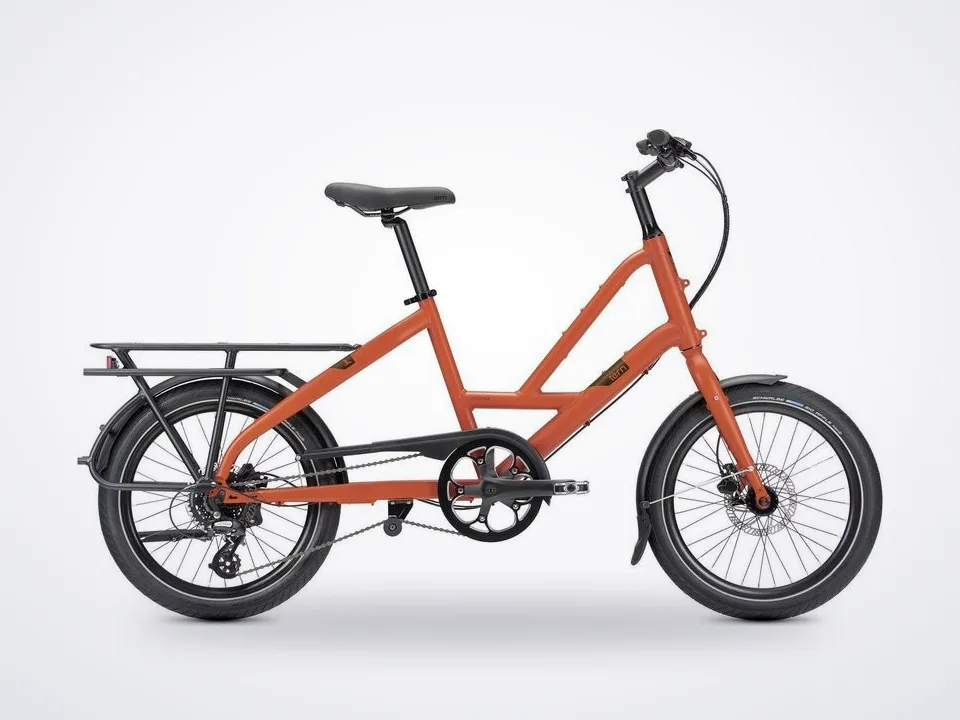

Tern Short Haul Cargo

• Compact cargo bike that carries up to 50 kg on the rear rack, plus an additional 20 kg with an optional front rack
• Create your ideal setup with different accessory options to carry your kid, your stuff, or even your dog
• Proven safe and reliable: frame and fork are EFBE-tested up to the 140 kg (308 lb) Maximum Gross Vehicle Weight
• Fits riders of different heights from 147 - 190 cm (4'10" - 6'3"), weighing up to 120 kg (264 lb)
• Low standover height (49 cm or 19") makes (dis)mounting and waiting at stops easier
• 1 x 8-speed Shimano Altus derailleur with trigger shifter
• Hydraulic disc brakes for great stopping power, even when carrying heavy loads

Frame & Build

Frame

Tern Short Haul, patented design, 6061-AL, EFBE Tri-Test approved: 140 kg

Fork

Steel, EFBE approved: 140 kg

Drivetrain: Speeds: 1 x 8, Shifter: 1 x 8-speed, trigger, Rear Derailleur: Shimano Altus, Crankset: Forged 6061-AL crankarm

Cassette

11-34T, 8-speed

Bottom Bracket

FSA, cartridge, sealed bearings

Chain

KMC, 8-speed

Gear Range

31"-95" (2.45-7.57 m)

Brakes: Front & Rear: Hydraulic disc, Wheels & Tires, Front Hub: Disc, aluminum, Rear Hub: 8-speed, disc, aluminum

Rims

Doublewall, for disc

Tires

Schwalbe Big Apple, 55-406, puncture protection, Reflex

Spokes

Stainless steel

Capacity & Weight

Bike Weight

16.1 kg (35.5 lb)

Max Gross Vehicle Weight

140 kg (308.6 lb)

Max Rider Weight

120 kg (264.6 lb)

Rear Rack Capacity

50 kg

Optional Front Rack Capacity

20 kg

Geometry

Standover Height

49 cm (19 in)

Seatpost to Handlebar

60-64 cm (23.6-25.2 in)

Saddle to Pedal

62-110 cm (24.4-43.3 in)

Suggested Rider Height

147-190 cm (57.9-74.8 in)

One-size, human-powered frame (no motor/battery); figures via ternbicycles.com/us/bikes/471/short-haul-d8.
