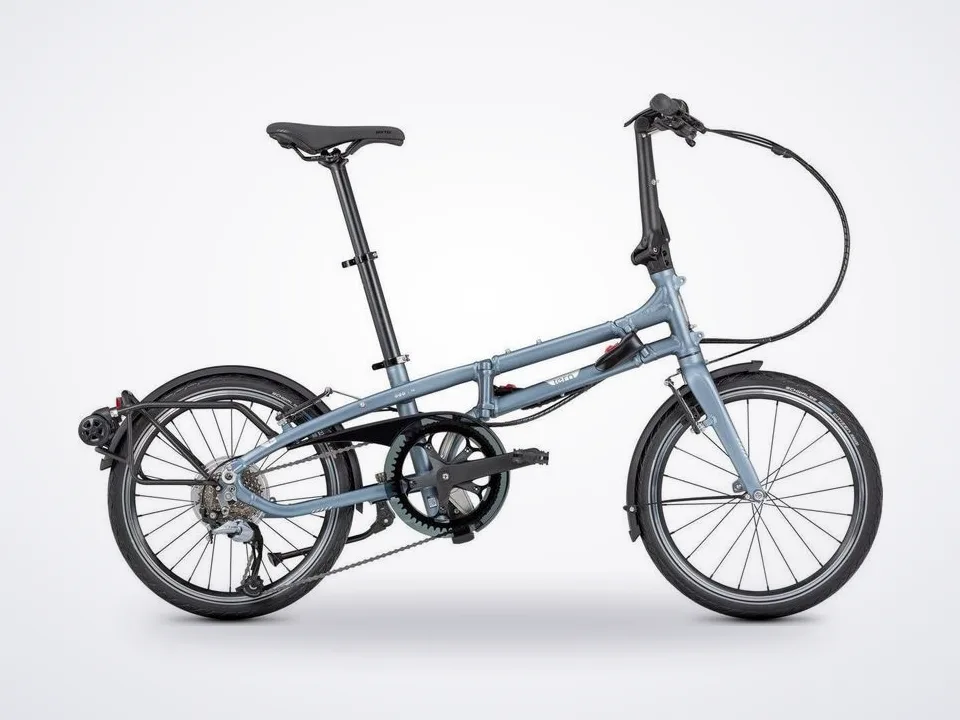

Tern BYB P8
In stock at 1 shop in Philadelphia
Buy at Mechanic Bicycle Pro ShopPrices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
BYB P8 Overview
- 30% smaller than traditional 20” folding bikes
- Fits conveniently into lockers, closets, or any narrow space
- Metro Transit Rack with built-in spinner wheels for easier trolleying
- Fits riders from 147 to 195 cm (4’10” – 6’5”)
- New TFL Joint with 3D interface, DeadBolt design and SpringLock technology
- New 3D-forged Physis RF Handlepost
- Tern Porter saddle with patented GripPad design
- 8-speed Shimano Alivio, Shadow RD derailleur
- Color
- Satin Silver-Blue
Show full description and specs
Component Specifications
Sourced from Tern's published specifications for the BYB P8. Data note: Tern's published spec sheet for the BYB P8 lists no motor, battery, or display component — this is a manual (non-electric) folding bike, despite being grouped with Vektron e-bikes in this batch. Built in one universal frame size.
Frame & Build
- Frame
- Tern BYB, aluminum, TriFold patented technology, EFBE tested to ISO 4210
- Fork
- Tern Tarsus, 6061-AL, hydroformed
- Frame Size
- One size, fits riders 147–195 cm (4′10″–6′5″)
- Color
- Satin Silver-Blue
Drivetrain: Shifter: Shimano, 1 x 8-speed, Rear Derailleur: Shimano Alivio, Shadow RD, Crankset: Forged 6061-AL, 52T, Cassette: Shimano, 11–32T, 8-speed
- Chain
- KMC, 8-speed
Brakes: Front & Rear Brake: Kinetix SpeedStop V-brakes, stainless hardware, Wheels & Tires, Wheel Size: 20-inch (406 mm), Rims: Doublewall aluminum
- Tires
- Schwalbe Citizen, 42-406, puncture protection, Reflex
Cockpit
- Handlepost
- Tern Physis RF, 3D forged (5 patented technologies)
- Stem
- Tern Andros (G2), adjustable, forged construction
- Headset
- Flux, cartridge bearings, Physis-integrated
- Handlebar
- Flat bar, 6061-AL, Andros adapted
- Saddle
- Tern Porter, patented GripPad design
- Seatpost
- Tern Telescope, 34.9/30.9 mm
- Rack
- Metro Transit Rack with built-in spinner wheels for trolleying
Folded Dimensions
Folded Size (L x W x H): 35 x 81 x 52 cm (13.8 x 31.9 x 20.5 in)
- Folding Time
- 30 seconds
- Weight
- 14.3 kg (31.5 lb)
Geometry
The BYB P8 is built in a single universal frame size with an adjustable handlepost/seatpost rather than multiple frame sizes. Tern does not publish a stack/reach/tube-angle geometry chart for this model — folded dimensions and rider height range above are the published fit data.
