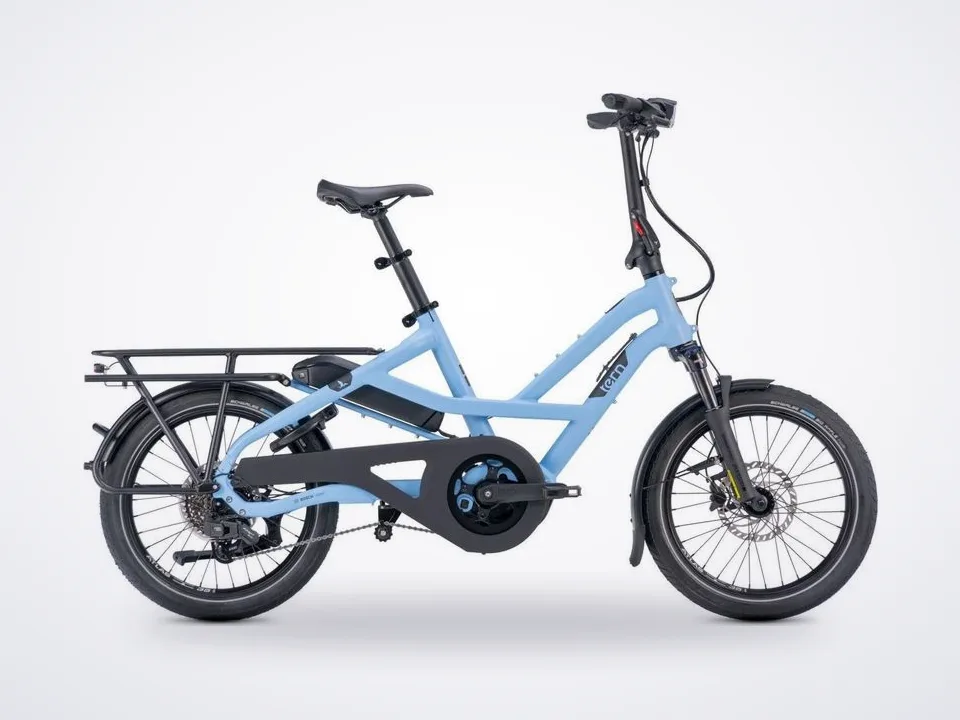

Tern HSD P10e Sport

• Bosch Performance Sport motor delivers up to 90 Nm of torque and 600% pedal assist with Performance Upgrade 2.0, supporting a max speed of 28 mph (Class 3)
• Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more
• Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
• Bosch eShift automatically shifts for you based on your preferred cadence and starting gear, with a wireless design that reduces maintenance
• Custom TRP E.A.S.I. A10, 10-speed derailleur
• Bosch PowerPack 545 battery provides long range of up to 67 mi (107 km)

HSD Highlights

• Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 419 lb (190 kg) with a rear rack load capacity of 176 lb (80 kg)
• Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
• Magura hydraulic disc brakes deliver precise and responsive stopping power
• Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
• Easy-sharing cockpit adjusts without tools to fit riders 4'11" - 6'7" (150 - 200 cm) tall and weighing up to 287 lb (130 kg)
• Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 419 lb) for proven cargo e-bike safety and reliability

Frame & Fork

Frame

Tern HSD, 6061-AL, patented design, EN17860 certified (190 kg)

Fork

Suntour custom for Tern, 32 mm stanchions, thru-axle, EN17860 certified (190 kg)

Frame Size

One size

Bike Weight

28.4 kg (62.6 lb)

Drivetrain & Motor

Motor: Bosch Performance Sport (BDU34), 90 Nm torque, 600% assist w/ Performance Upgrade 2.0, Class 3, max 28 mph

Battery

Bosch PowerPack 545 Wh

Range

56-107 km (35-67 mi)

Display / Control

Bosch Purion 200, Bosch eBike Flow app connectivity, electronic bike lock

Shifter / Derailleur

TRP E.A.S.I. A10 wireless e-shifter w/ Bosch eShift, 10-speed, built for Tern

Cassette

Shimano CUES Linkglide 11-39T, 10-speed

Chain

KMC eGlideS, 10-speed, EPT corrosion-resistant coating

Crankset

Tern HSD

Gear Range

27"-97" (2.18-7.72 m)

Brakes: Front & Rear: Magura hydraulic disc, 180 mm rotor, Wheels & Tires, Wheels: Tern Atlas H cargo wheels, Novatec sealed-bearing thru-axle hubs, Tires: Schwalbe Big Apple, 55-406, puncture protection, Reflex

Capacity & Weight

Max Gross Vehicle Weight

190 kg (418.9 lb)

Max Rider Weight

130 kg (286.6 lb)

Rear Rack Capacity

80 kg (176 lb)

Suggested Rider Height

150-200 cm (4'11"-6'7")

Geometry

Overall Dimensions

174 x 112.5 x 68 cm

Wheelbase

119 cm (46.9 in)

Standover Height

48.5 cm (19.1 in)

Seatpost to Handlebar (Reach)

52-59 cm (20.5-23.2 in)

Saddle to Pedal

68-101 cm (26.8-39.8 in)

Folded Dimensions

166 x 42 x 87 cm (5-second fold)
