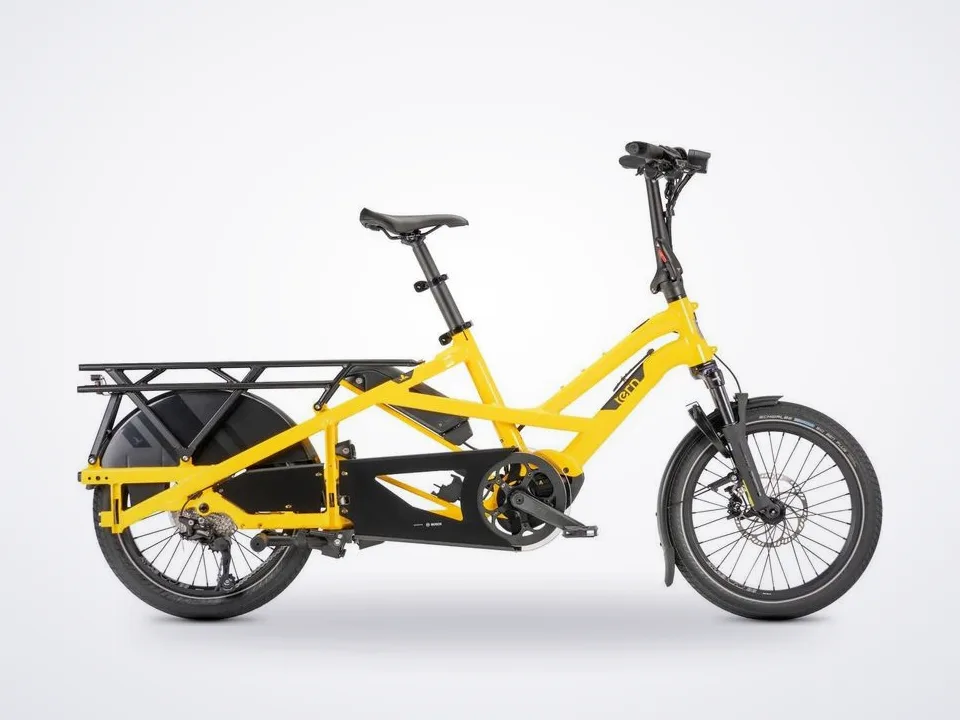

Tern GSD P10 Electric Cargo

GSD highlights

• Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
• Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
• Magura 4-piston hydraulic disc brakes deliver precise and responsive stopping power
• Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
• Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
• UL 2849-certified Bosch e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
• EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)

Frame & Build

Frame

Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg

Fork

Suntour, 1.5" tapered, 32 mm stanchions, 50 mm travel

Folding

Folds in 5 seconds; folded size 182 x 46 x 87 cm (71.7 x 18.1 x 34.3 in)

Drivetrain & Motor

Motor

Bosch Cargo Line, 85 Nm torque, 400% support

Battery

Bosch 500 Wh PowerPack, dual-battery capable, max 1000 Wh

Display

Bosch Purion

Range

25-63 mi on 500 Wh; 51-129 mi on 1000 Wh

Shifter & Derailleur

Shimano Deore, 1 x 10-speed

Cassette

Shimano 11-42T, 10-speed

Chain

KMC 10-speed eBike chain

Crankset

Tern GSD forged crankset

Brakes: Front & Rear: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Wheels & Tires, Wheels: Tern Atlas heavy-duty cargo wheels, 36 mm rims, dual-reinforced, Front Tire: Schwalbe Big Ben Plus

Rear Tire

Tern x Schwalbe Super Moto-X

Capacity & Weight

Bike Weight

34.64 kg (76.4 lb)

Max Gross Vehicle Weight

210 kg (463 lb)

Max Rider Weight

130 kg (286.6 lb)

Rear Rack Capacity

100 kg (220 lb)

Suggested Rider Height

150-200 cm (59.1-78.7 in)

Geometry

Overall Size

191 x 68 x 116 cm (75.2 x 26.8 x 45.7 in)

Wheelbase

135 cm (53.1 in)

Standover Height

49 cm (19.3 in)

Seatpost to Handlebar

49-59 cm (19.3-23.2 in)

Saddle to Pedal

69-105 cm (27.2-41.3 in)

GSD P10 is a one-size-fits-most frame (adjustable cockpit); figures via ternbicycles.com/us/bikes/473/gsd-p10. North America offers this model in School Bus Yellow only.
