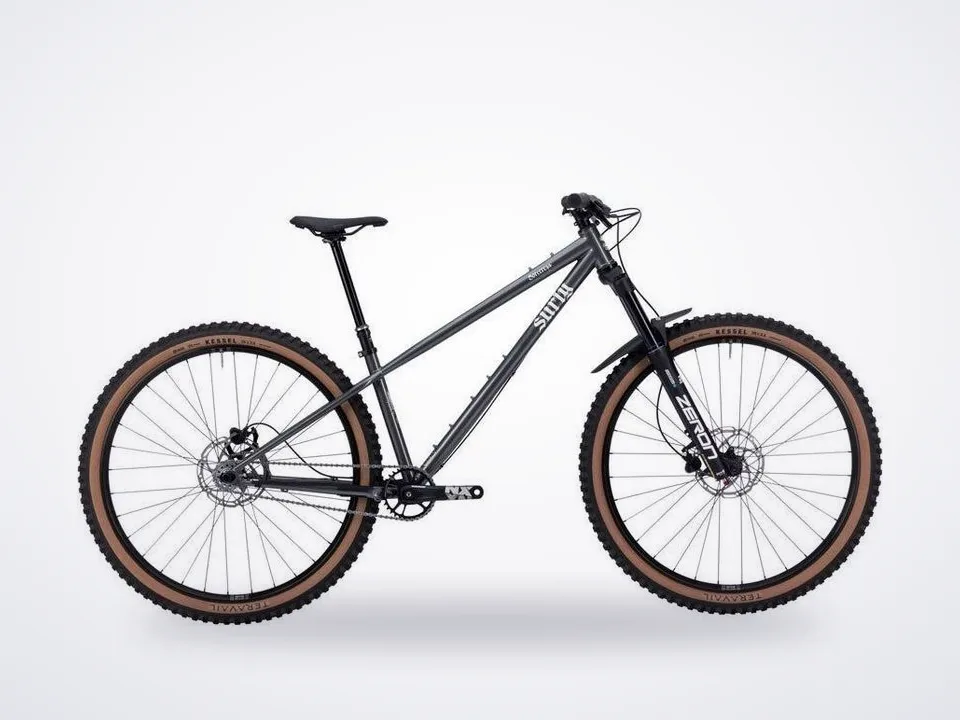

Surly Sorceress Single Speed

• Steel frame with modern, hard-charging trail geometry designed around a 140mm fork for a spirited ride
• Patent-pending Surly DUH dropout system for compatibility with SRAM UDH, Full-Mount and single speed setups
• Room for one or two bottles depending on frame size: two on MD–XL, one on XS–SM
• Inclusive standover clearance and maximized dropper post insertion designed to welcome riders from 4′9″ (146cm) and up
• SR Suntour Zeron36 Boost EQ fork, 140mm travel
• Single-speed drivetrain
• Tektro HD-M280 2-piston hydraulic disc brakes
• Teravail Kessel tires (29 x 2.5″ or 27.5 x 2.5″ on XS) for enhanced traction, control, and grip

Build Kit

• Frame: Surly Sorceress - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
• Fork: SR Suntour Zeron36 Boost EQ 29", 15 × 110mm, 44mm offset, 140mm travel (27.5" on XS), Short fender included

Color

Swamp Water Taffy

Front Derailleur

N/A

Rear Derailleur

N/A

Cassette

Surly 18T Single Speed Cog

Chain

KMC X9 EPT Anti-Rust

Crankset

SRAM NX Eagle, 32T

Bottom Bracket

SRAM PowerSpline BSA 73mm

Shifter

N/A

Brakes and Rotors

Tektro HD-M280, 2 piston, Tektro 180/180, Center Lock

Headset

FSA Orbit ITA

Stem

Promax DA-205

Handlebar

TranzX Alloy 31.8mm (0mm rise on XS/SM, 20mm rise on MD/LG, 38mm rise on XL)

Grips / Bar Tape

Velo Ultra Light Foam

• Seatpost: TranzX YSI05 +RAD Dropper Post, 30.9mm (170mm travel on XS, 200mm travel on SM-XL)

Saddle

WTB Solano Medium

Front Hub

Shimano TC500 15 × 110mm, 32h, Center Lock

Rear Hub

Shimano TC500 12 × 148mm, 32h, Center Lock

Rims

WTB ST i30 29" TCS 2.0, 32h (27.5" on XS)

• Tires: Teravail Kessel 29 × 2.5" Durable (27.5" on XS), Tan Sidewalls, WTB TCS Sealant Included

Spokes

14G Black

Pedals

N/A

Sizing

Surly recommends the following sizes based on rider height:

XS

5' - 5'5"

SM

5'4" - 5'8"

MD

5'7" - 6'

LG

5'11" - 6'3"

XL

6'2" - 6'6"
