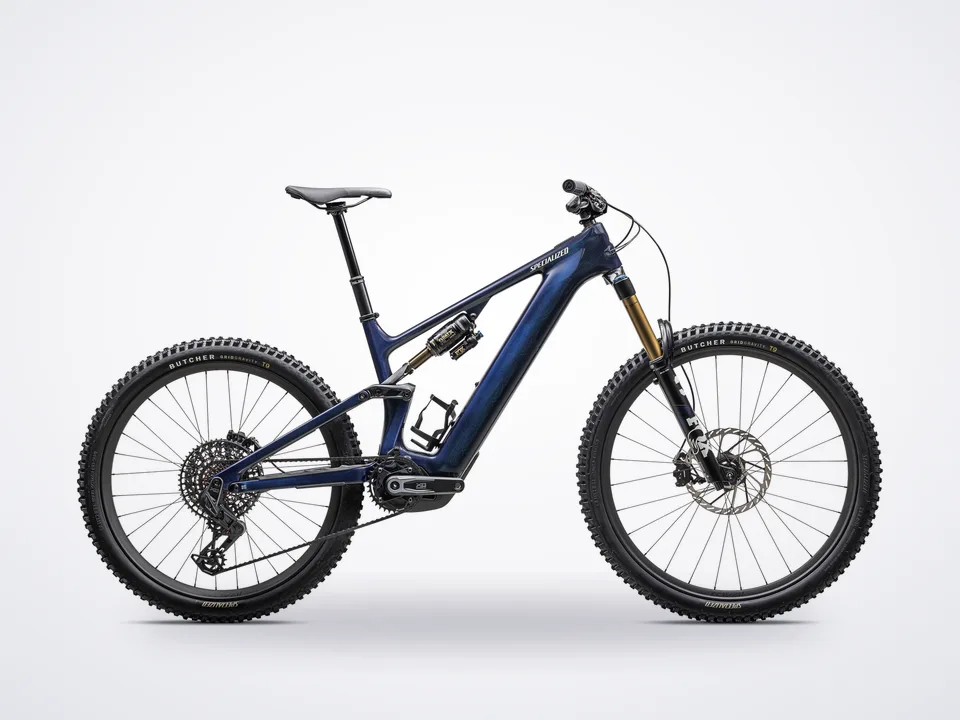

Specialized Levo 4 Pro Carbon

Frame

FACT 11m Carbon, Geo Adj & SWAT Storage

Suspension

Front: 160mm FOX 38 Factory GRIPX2, Rear: 150mm Genie - FOX Float X Factory

Drivetrain

SRAM XO Eagle T-Type AXS

Wheels

Roval Traverse HD Carbon / DT 350, Specs, E-bike, UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Motor

All New Specialized 3.1 Motor, 101Nm torque, 666W power

Charger

Specialized 4amp charger

Battery

840wh battery

Frameset

Seat Binder, Alloy, 38.6mm

Frame

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Fork

FOX Float 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Rear Shock

FOX Float X Factory with Specialized Genie Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

Brakes

Front Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Chainrings

SRAM 34T T-Type chainring, 104 BCD, steel, Shift Levers, SRAM AXS POD Controller

Chain

SRAM X0

Rear Derailleur

SRAM X0 Eagle Transmission

Crankset

SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm

Cassette

SRAM XO 1295, 12 speed, 10-52, Wheels & tires

Rear Tire

Butcher, GRID Gravity casing, Gripton® T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire: Butcher, GRID Gravity casing, Gripton® T9 compound, 2Bliss Ready, 29x2.3", Inner Tubes, Standard, Presta valve

Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h

Cockpit

SeatPost

Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

Saddle

Bridge Mimic Expert, Hollow Ti rails

Grips

Deity Lockjaw grips

Handlebars

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

Stem: Industry 9 Mountain stem, 35mm clamp, 40mm length, Accessories, SWAT, SWAT internal downtube storage

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.

For information on lithium-ion battery…
