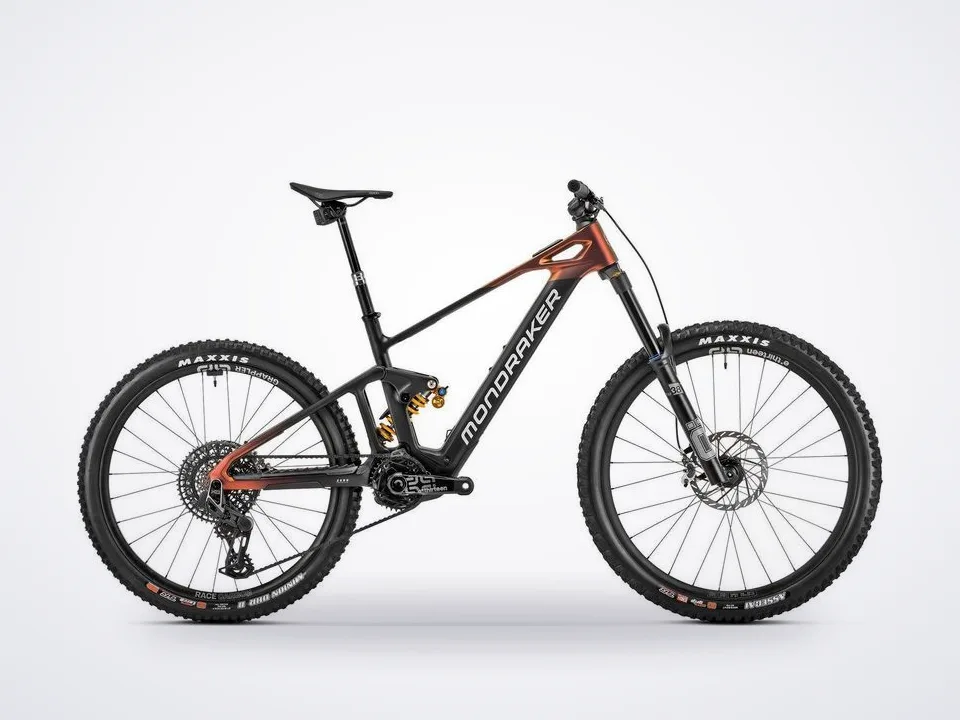

Mondraker Dune XR
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Technical specs
- Frame
Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Rear shock
Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Show full description and specs
Shock settings
C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
- Fork
Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
- Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
- Saddle
Front brake
Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Rear brake
Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
- Rims
E*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''''5 rear
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers, • Front hub, e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
E*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
- Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
- Crankset
E*Thirteen TRS Race carbon ebike, All sizes: 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
- Chain
Sram X0 Eagle AXS T-Type,12s
- Shift levers
Sram XS-1295, 10-52T, T-Type, 12s
- Weight
42,9 lbs
Display: Purion 400 / Bosch Mini Remote / Bosch System Controller, • Motor, Bosch Performance Line SX (20 Mph) GEN4 Smart System Diagonal, Wide
- Battery
- Bosch Compact…
