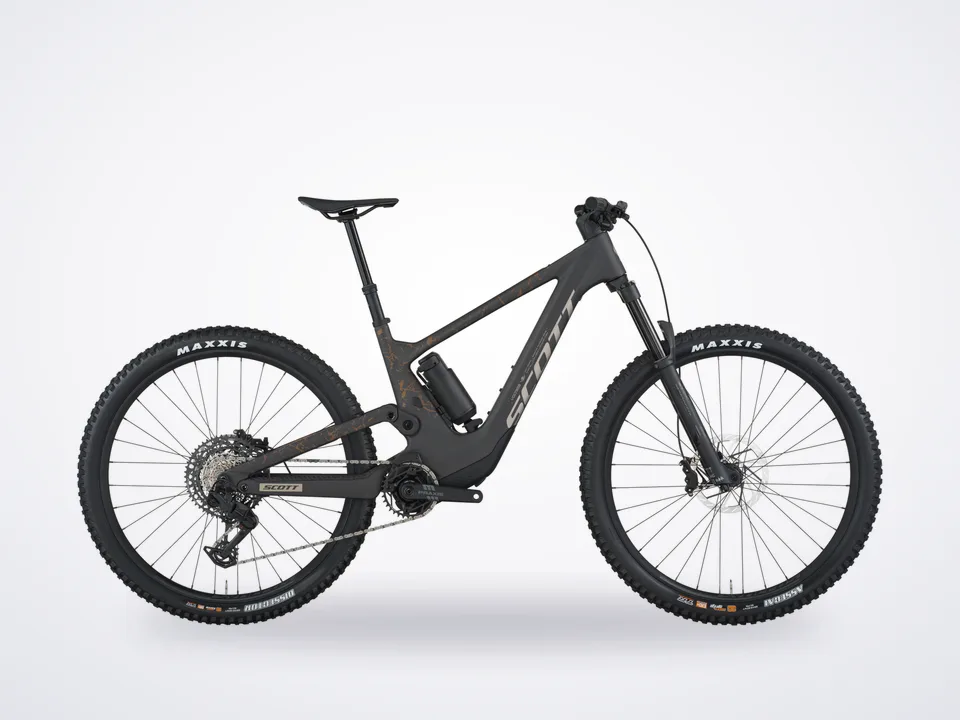

Scott Voltage 920
In stock at 1 shop in Dublin
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Voltage 920 is our long-travel e-MTB with a carbon front and alloy rear triangle for riders who want all the heart-pumping excitement of a top-tier trail bike without the top-tier price tag. With its lightweight design, 160mm front and 155mm rear travel suspension, and an updated, high-performance motor unit, Voltage 920 is the ideal big riding, epic sending, e-rig that handles its own shuttle laps.
Show full description and specs
Power is boosted to 60Nm compared to the 50Nm on the previous Voltage thanks to TQ’s new HPR60 motor, which leaves you feeling like there’s no switchback too tight and no obstacle is too challenging. Range is also upgraded also with an included Range Extender Battery. It attaches with a quick-release mount and supplies 160 additional watt hours to the 360Wh main battery. It’s the assist you need to enjoy bigger days on the trails, and it’s small enough to pack if you want to have it along on any given ride.
Our NUDE Suspension technology with the X-Fusion NUDE shock that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up.
This Voltage also comes with SRAM’s Transmission groupset and powerful Maven four-piston brakes to give you the range and the stopping power to make every ride one to remember.
Please note that bike specifications are subject to change without prior notice.
Specifications
Frame: Carbon HMF Main Frame, Alloy SST-CSTIntegrated Suspension TechnologyVirtual 4 Link kinematic, Adjustable head angleSyncros Cable Integration SystemTQ HPR60, UDH Interface, 12x148mm with 55mm Chainline
Fork: Marzocchi Z2 Air Rail, Sweep Adj, 15x110mm QR axle, tapered steerer44mm offset, Reb. Adj., Lockout, 150mm travel
Rear Shock: X-Fusion NUDE 5 RLX TrunnionSCOTT custom w. travel, geo adj.3 modes: Lockout-Traction Control-DescendReb. Adj.Travel 155-100-Lockout, T185X55mm
- Remote System
- Scott TracLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes
Headset: Syncros - Acros Angle adjust & Cable Routing HS SystemStainless, +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Stem: Syncros AM 2.0Syncros Cable Integration System4° rise, 6061 Alloy, 31.8mm, 1 1/8"
Handlebars: Syncros Hixon 2.0 Alloy 6061Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm Syncros Endurance lock-on grips
- Rims
- Syncros X-30S, 32H, 30mm, Sleeve JointTubeless ready
- Front Hub
- Formula CL-811, 15x110mm
- Rear Hub
- Formula CL-148S, 12x148mm
- Spokes
- Stainless Black 15G, 1.8mm
- Front Tyre
- Maxxis Assegai, 2.5", 60TPI FoldableTubeless Ready, EXO+ 3C Maxx Terra
- Rear Tyre
- Maxxis Dissector, 2.5", 60TPI FoldableTubeless Ready, EXO+ 3C Maxx Terra
- Shifter
- SRAM Eagle 70 Shifter
- Rear Derailleur
- SRAM Eagle 70 Transmission 12 Speed
- Crankset
- Praxis Alloy Praxis alloy spider, SRAM Eagle Transmission 34T chainring
- Cassette
- SRAM Eagle XS 1270 Transmission 10-52
- Chain
- SRAM CN Eagle 70…
