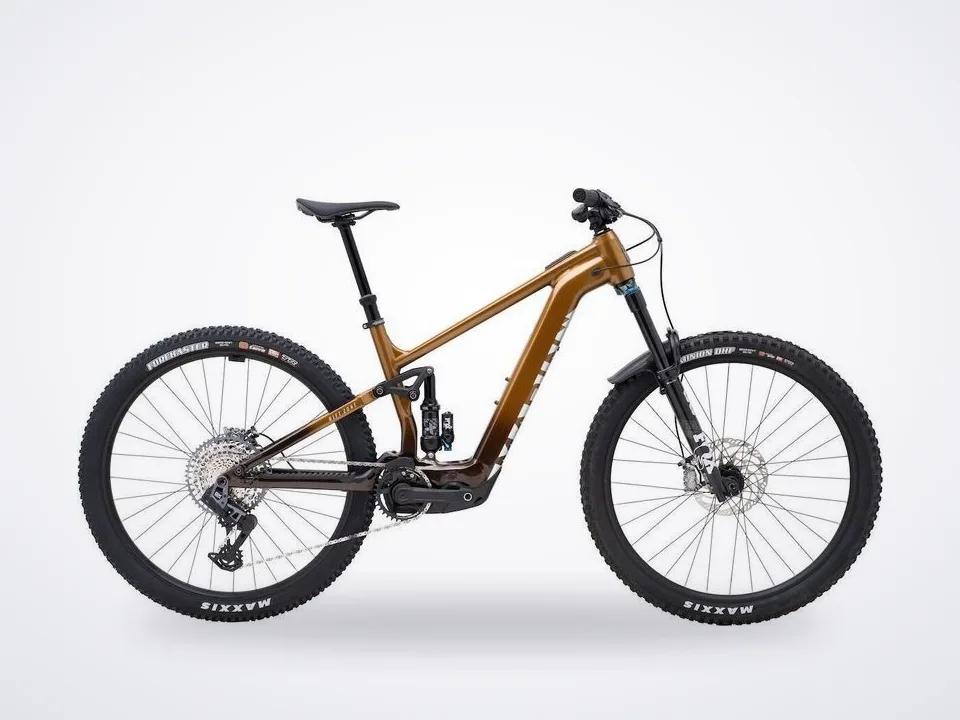

Marin Rift Zone El XR Bosch
In stock at 1 shop in Dublin
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The new Rift Zone EL charts a different path within the Rift Zone E family. These models take the proven geometry, travel and trail prowess of the proven Rift Zone E in a nimble and lighter package.
Marin’s all-new Rift Zone EL (“Electric Light”) trail eMTBs take everything you love about the Rift Zone formula and repurposes it into bikes that share the capability as the full-powered versions, but in lighter-weight packages.
Show full description and specs
Made possible in part by Bosch’s new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride, with a power delivery so natural you might forget it’s an ebike. All of the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don’t require the full range and power output of more traditional eMTBs.
All three models are well-equipped with performance-focused components from top-tier supplier partners such as Fox, SRAM, Shimano, TRP and more. Throw a leg over one and discover just how agile and fun an eMTB can be.
The flagship Rift Zone EL XR is decked out with a gamut of high performance components, including the impressive Fox 36/Float X Performance Elite suspension combo, Sram's GX AXS wireless T-type transmission drivetrain and Magura MT-7 4-piston brakes.
Specifications
Frame: All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
- Fork
- Fox 36 Performance Elite, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset
Shock: Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper Mount, No Lower DU or Hardware
- Headset
- FSA Custom, Adjustable HTA Design
- Stem
- Marin CNC, 35mm Length, 35mm Bar Bore
Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
- Grips
- Marin Grizzly Lock On
Rims: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible
- Spokes
- 14g Black Stainless Steel
- Front Hub
- Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
- Rear Hub
- Formula DC-711, 110x15, 6-Bolt, 32H
Tyres: Front: Maxxis Minion DHF, 29x2.4" Maxxgrip, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX Terra EXO+
- Rear Shifter
- SRAM AXS Pod
- Rear Derailleur
- SRAM GX AXS T-Type
- Crankset
- e*thirteen e*spec Plus, 160mm Length, 34T
- Cassette
- SRAM CS-XS-1275 T-Type, 10-52T
- Chain
- SRAM GX T-Type
- Chainguide
- e*thirteen e*Spec Chainguide
- Front Brake
- Magura MT7, 4-Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
- Rear Brake
- Magura MT7, 4-Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
- Brake Levers
- Magura HC3
Seatpost: PNW Loam Post with Range Lever, Size S 150mm Travel, Size M-L 170mm Travel, Size XL 200mm Travel, 34.9mm
- Saddle
- Marin Speed Concept
- Extras
- Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
- Switch
- Bosch BRC3300 Bluetooth Remote 22.2mm…
