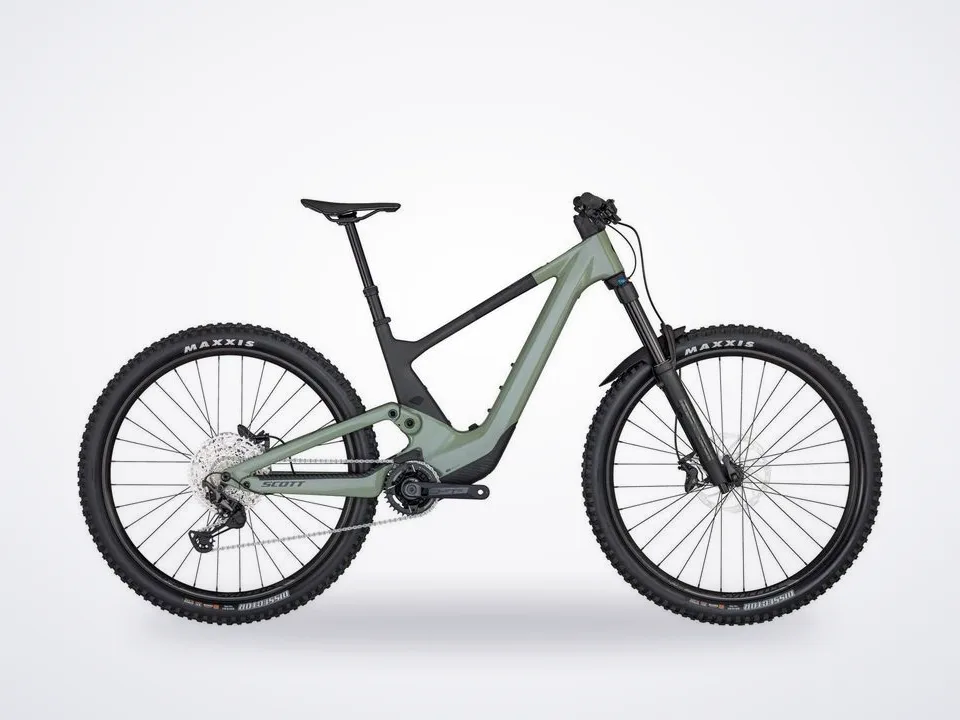

Scott Voltage 910 eRide
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Imagine giving the world's best trail bike a secret weapon. With the Voltage eRIDE, that's just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail... after trail.
Technical Specifications
- Specification
- Details
Frame: Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline, Range Extender Ready
Show full description and specs
Fork: FOX 36 Float Rhythm Air Grip, 3 modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 160mm travel
Shock: FOX NUDE 6T EVOL Trunnion, Scott custom w. travel / geo adj., 3 modes: Lockout-Traction Control Descend, Low Speed Adj. / Custom large Air volume / Reb. Adj, Travel 155-100-Lockout / T185X55mm
- Suspension Remote
- Scott TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes
Headset: Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Handlebar: Syncros Hixon 1.5 Alloy 7050, Size S & M 15mm rise / Size L & XL 25mm rise, back sweep 8° / 780mm,
- Grips
- Syncros Endurance lock-on grips
Stem: Syncros AM 1.5, Syncros Cable Integration System, 4° rise / 7050 Alloy / 31.8mm / 1 1/8”
- Shifters
- Shimano Deore SL-M6100-IR / Rapidfire Plus, I-spec EV clamp
- Rear Derailleur
- Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed
- Chain
- Shimano CN-M6100 12spd
- Cassette
- Shimano CS-M6100 / 10-51T 12spd
- Crankset
- FSA Alloy crankset / 175mm / 34T
- Chainring
- Scott custom spider / FSA 12Speed 34T chainring
- Chainguide
- e*thirteen / e*spec Slider
- Brakes
- Shimano Deore M6120 4-Piston Disc, Shimano SM-RT64 CL / F&R 203mm
- Saddle
- Syncros Tofino 1.5 Regular, Titanium rails
Seatpost: Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm, S size 140mm / M size 180mm / L & XL size 210mm
- Front Hub
- Formula CL-811 / 15x110mm
- Rear Hub
- Formula CL-148M / 12x148mm
- Rims
- Syncros X-30S / 32H / 30mm / Sleeve Joint, Tubeless ready
- Front Tire
- Maxxis Dissector / 2.6” / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra
- Rear Tire
- Maxxis Dissector / 2.6” / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra
- Battery
- TQ Internal 360Wh
- Motor
- TQ HPR50 Mid Motor drive 50Nm max Torque
- Display
- TQ HPR, Bluetooth / ANT+ / Dedicated Smartphone app
- Charger
- TQ 100-240V-4A
