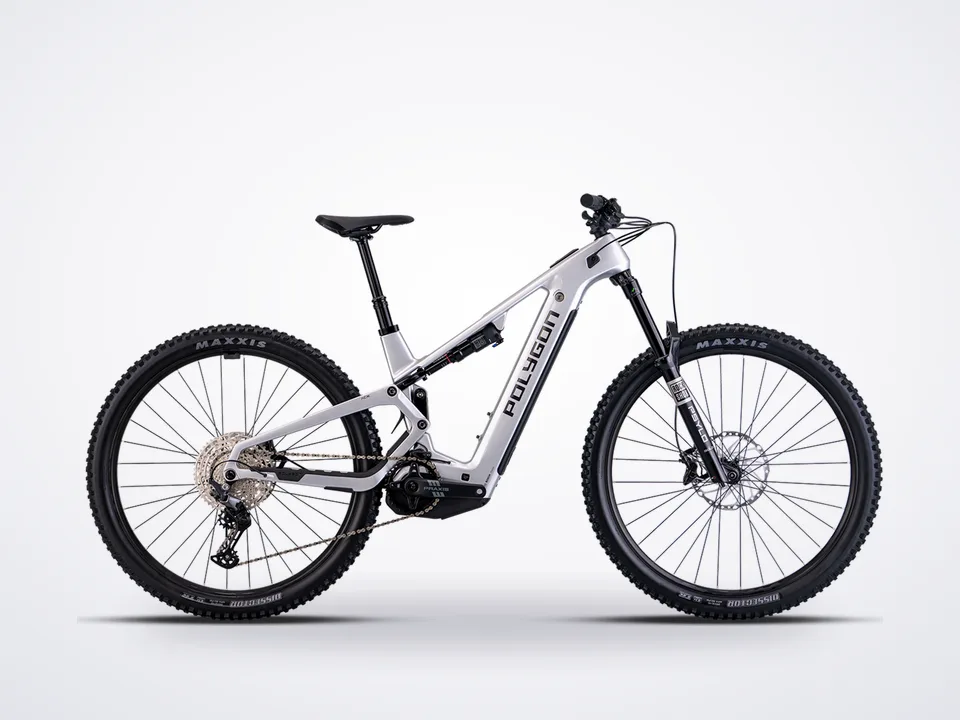

Polygon Collosus TE6 CB C1

Crafted for big missions and aggressive riders, the 2026 Collosus TE8 electric MTB is Polygon's new e-trail machine. It's built with a full carbon frame, and both the front and rear triangles are designed to be agile, responsive, and ready for anything.​The Collosus TE8 electric MTB features the proven compact model of the IFS (Independent Floating Suspension) system, used on the Collosus N and DH series. This system delivers exceptional small-bump sensitivity and strong mid-stroke support, pairing perfectly with air shocks for a confident and balanced ride.​The 29er-wheel setup provides a playful yet planted feel. The quiet and natural-feeling Bosch Performance Line CX motor, with 100 Nm of torque and an 800 Wh battery, brings effortless power to every climb and sprint.​An extended chainstay enhances rear-wheel traction, and the UDH-compatible hanger supports modern drivetrains. The low standover height keeps your center of gravity low and lets you charge harder and ride sharper, no matter what the trail throws your way.Technical Specifications

Frameset: • Frameset: ACX Carbon E-Trail 150mm Travel, • Fork: Rockshox Psylo GOLD RC 160mm Travel, • Rear Shock: Rockshox Deluxe Select+, E2E: 230x60mm, • Size: S, M ,L, XL

Frame Color

Silver

Decal Color

Black

Drivetrain: • Shifter: Shimano Deore SL-M6100 1x12-Speed Trigger, • Crank: Praxis EC TYPE 2, 34T, • Cassette: Shimano Deore CS-M6100 12-Speed 10-51T Microspline, • Rear Derailleur: Shimano Deore RD-M6100 12-Speed

Chain

Kmc E12 12-Speed

Cockpit

Saddle

Fizik Terra Alpaca X5, Alloy ø7mm

• Seatpost: Tranz X JD-YSP39KL Alloy 170mm (S, M) / 200mm (L, XL) Travel, DxL: 34.9 x 495mm (S, M) / 556mm (L, XL)

Handlebar

Polygon Expert, W: 780mm, BB: 35mm, R/D: 30mm, B: 9degree

Handlestem

Polygon Expert, EXT: 40mm, BB: 35mm, R/D: 0mm

Headset

FSA NO42/47/Acb, IS 42/28.6 | IS 52/40

Wheel & Tire

Wheel Set

MT6 Tubeless Ready

Tire

Maxxis Dissector 29"x2.40" 622x61 Tubeless Ready

Rim

Alloy Double WALL FV H:18mm 622x32 32H W/ Tubeless TAPE

• Hub: F: Shimano TC500 THRU AXLE 15x110mm 32H CL, R: Shimano TC500 THRU AXLE 12x148mm 32H CL FOR Microspline
• Spokes: F: Stainless 14G NDS:292mm DS:294mm W/ 12mm Brass Nipple, R: Stainless 14G NDS:294mm DS:292mm W/ 12mm Brass Nipple

Brake: • Brake Lever: Shimano BL-MT501, • Brake Caliper: Shimano MT520 Hydraulic DISC, • Rotor: Shimano SM-RT64 203MM CL, Electric Parts

Motor

Bosch Performance Line CX BDU3840

Sensor

Bosch Rim Magnet

Battery

Bosch Powertube 800 Horizontal

• Extras: Charger: Bosch Fast Charger 4A | Remote: Bosch Mini Remote BRC3300 | Hmi: Bosch System Controller BRC3100

Geometry
