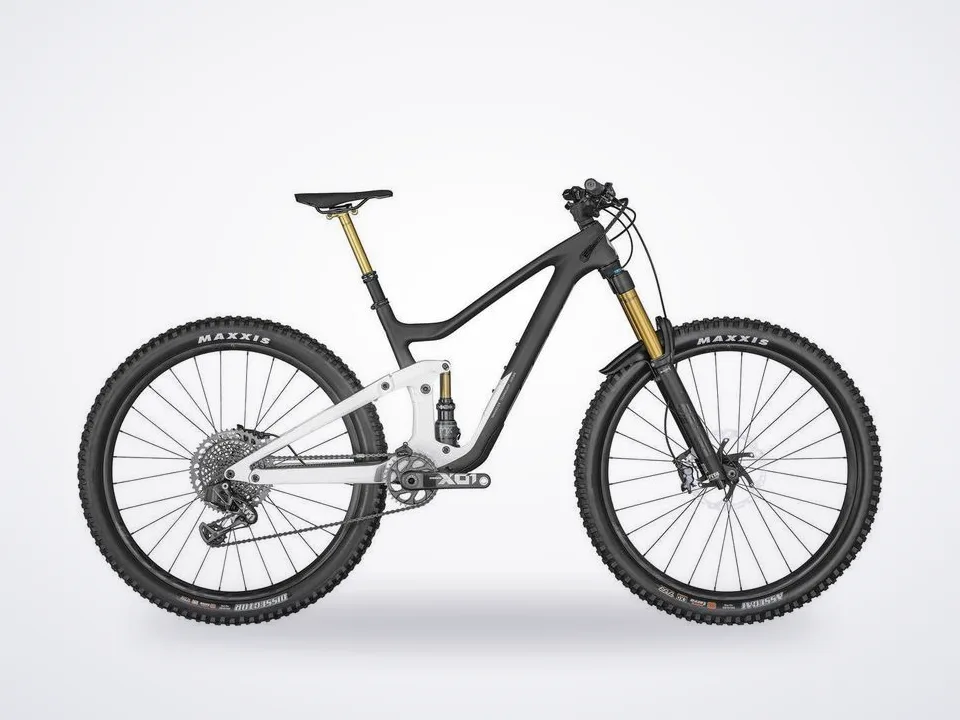

Scott Ransom 900 Tuned AXS

Frame: Ransom Carbon / IMP Technology / HMX, BB92 / Carbon swingarm, VLK Virtual 4 Link kinematic, 27.5” (2.6 & 2.8) and 29” (2.4 & 2.6) tire compatible with Geo-BB adj., SW dropouts for Boost 12x148mm, TBC Trunnion box construction

Fork: FOX 38 Float Factory Air / Kashima / FIT4, 3-Modes with low Speed adj. / Kabolt 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout / 170mm travel

Shock: FOX NUDE TR EVOL Trunnion, Scott custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, custom Ramp Adjust with linear and progressive setting, DPS / Kashima / Reb. Adj., Travel 170-120-Lockout / 205X65mm

Remote System: Scott TwinLoc TSP Technology, Suspension-Seatpost Remote, below Bar / 3 modes / integ. Grip clamp

Rear Derailleur

SRAM X01 Eagle AXS / 12 Speed, Wireless Electronic Shift System

Shifter

SRAM Eagle AXS Controller

Crankset

SRAM X01 Eagle DUB Boost Carbon crankarm, QF 168 / 32T

Bottom Bracket

SRAM DUB PF integrated / shell 41x92mm

Chain

SRAM PCXX1 Black Eagle

Cassette

SRAM X01 / XG1295 / 10-52 T

Brakes

Shimano XT M8120 4 Piston Disc

Rotor

Shimano SM-RT86 / 6 Bolt / 203/F and 180/R

Handlebar / Stem

Syncros Hixon iC Rise Carbon, 20mm rise / 8° / 780mm, Syncros Pro lock-on grips

Seatpost: FOX Transfer Factory Dropper Post / Kashima, 31.6mm / S 125mm / M size 150mm / L & XL 175mm

Seat

Syncros Kaslo 1.5, Titanium Rails

Headset

Syncros Pro Press Fit E2 / Tapered 1.5”-1 1/8”, OD 50/62mm / ID 44/56mm

Wheelset: Syncros Revelstoke 1.5 6 Bolt, F: 15x110mm, R: 12x148mm Boost, 30mm Tubeless ready rim 28H / XD Driver, Syncros Axle w/Removable Lever with Tool

Front tire

Maxxis Assegai / 2.6” / 60TPI Foldable / EXO / TR / 3C Maxx Terra

Rear Tire

Maxxis Dissector / 2.6” / 120TPI Foldable / EXO+/ TR / 3C Maxx Terra

Extras

SRAM AXS Powerpack, Fox 38 Fender
