Amflow PR Carbon
In stock at 2 shops in Vancouver and London
Prices and stock checked Oct 22.
Where to buy
2 shopsIn Canada
In the UK
About this bike
Details
Show full description and specs

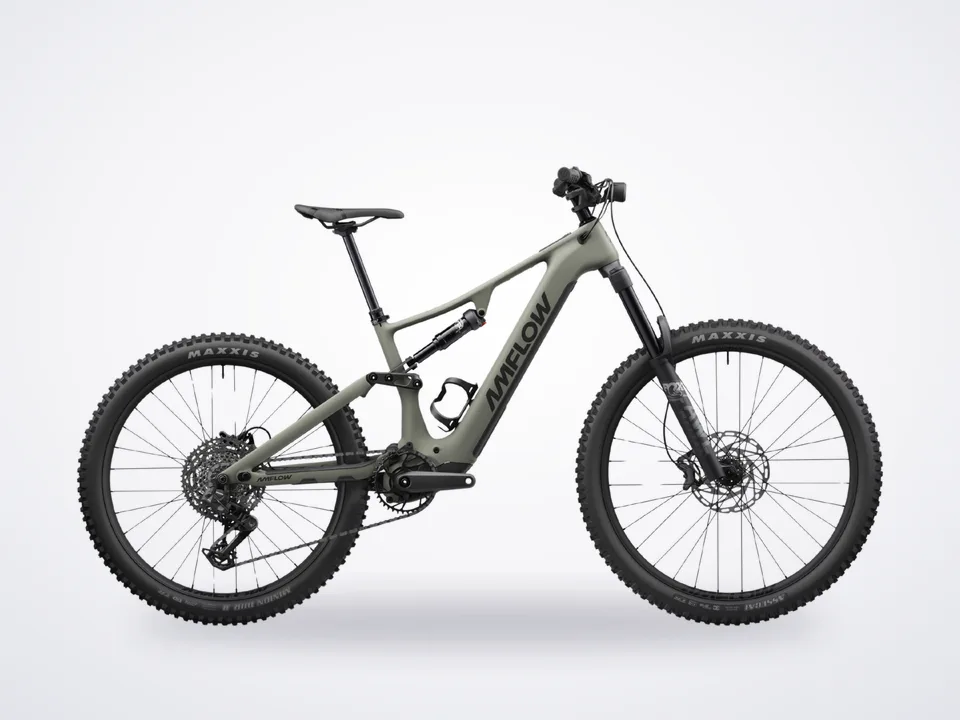

The Amflow PR Carbon is the trail-ready e-MTB built for everyday versatility — strong uphill performance, intuitive handling, and the range to turn your usual loop into a full day out. A full-carbon frame (2.9 kg) is paired with the Avinox M2 drive unit delivering 125 Nm of torque and up to 1,100 W of peak power, powered by an 800 Wh removable battery for up to 158 km of range. Geometry is fully tunable via five head-angle positions, two bottom-bracket heights, and four chainstay lengths — 40 configurations in total — so the PR Carbon can be set up for anything from mellow trail days to steep alpine missions.
Specifications
- Motor
- Avinox M2 drive unit, 250 W rated, 1,100 W peak, 125 Nm torque
- Battery
- 800 Wh removable (optional 600 Wh)
- Range
- Up to 158 km
- Top Speed
- 32 km/h (Class 1)
- Travel
- 160 mm front / 150 mm rear
- Fork
- FOX AWL HD Sport (MY 2027), 160 mm, RAIL 2.0 damper
- Shock
- FOX Float Rhythm (MY 2027), 210×55 mm
- Drivetrain
- SRAM S1000 Eagle AXS Transmission, 1×12, 10-52T
- Crankset
- Avinox SL (155 mm M/L, 160 mm XL/XXL), 38T
- Brakes
- Tektro TKD173 hydraulic disc, 4-piston, 203 mm rotors
- Wheels
- Amflow XMA-30 alloy, mullet (29" front / 27.5" rear)
- Tires
- Maxxis Assegai 29×2.5" front / Maxxis DHR II 27.5×2.5" rear
- Frame
- Full-carbon monocoque, 2.9 kg
Geometry: 40 configurations (5 head angles, 2 BB heights, 4 chainstay lengths), 64.5° default HA
- Cockpit
- Amflow Enduro alloy bar 800 mm / 40 mm rise, 35 mm split stem
- Seatpost
- Amflow dropper (190 mm M, 210 mm L/XL, 230 mm XXL)
- Sizes
- M, L, XL, Xxl
- Color
- Moss Green
