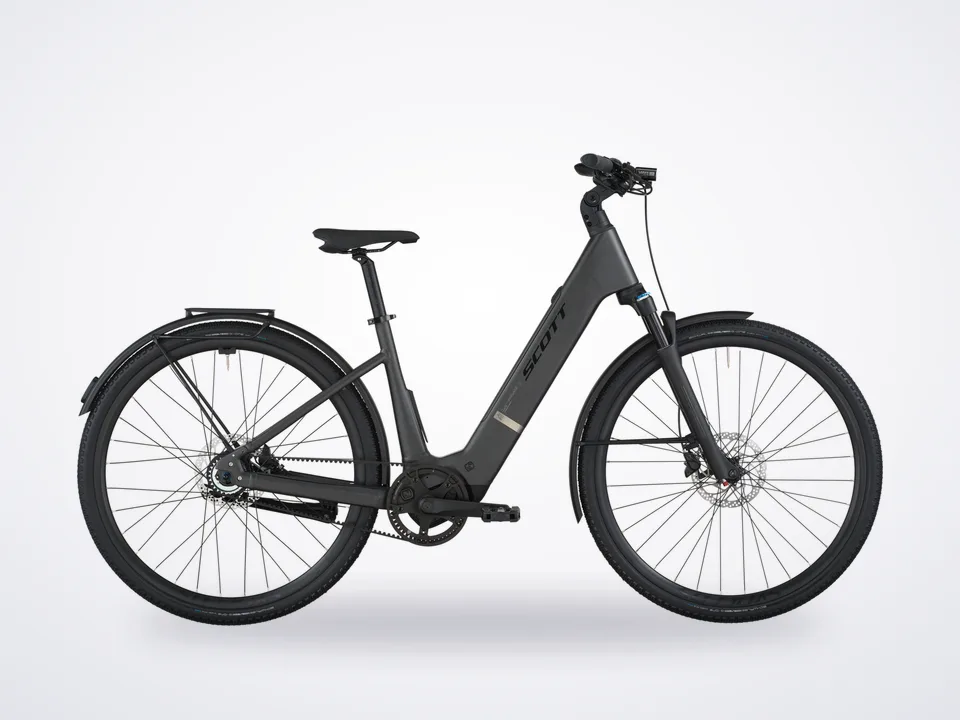

Scott Passage 10 Belt Wave
In stock at 1 shop in Dublin
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The Passage 10 Wave Bike is our e-Urban machine that’s easy to ride, thanks to its low standover height, making it a cinch for everyone in the family to get on and enjoy riding in the city.
At first glance, you may not even register Passage 10 as an E-Bike, with its trim lines and non-intimidating stance. That’s thanks to Bosch’s SX motor (which weighs just 2kg) and slim 400Wh battery. It’s a powerful combo that keeps the bike light, agile, and balanced while delivering power whenever you need it and the range to handle a long commute easily.
Show full description and specs
In addition to being easy to mount, Passage 10 is nicer to ride than larger E-Bikes. The Bosch SX motor features a narrower Q-factor that lets you have a natural pedaling style and handling you may be used to feeling on lightweight bikes. Out front is a 75mm suspension fork that cushions your ride from rougher pavement as you zip around town. And if taking the scenic route or packing extra for the commute in, the rear rack sets you up to stow the day’s essentials.
We equipped this Passage 10 with Shimano’s 8-speed drivetrain for plenty of gearing to enjoy your city streets and 45mm tires to add stability and comfort to navigate any surprises on the route. There’s also a kickstand for easy parking at your destination.
Please note that bike specifications are subject to change without prior notice.
- Frame
- Alloy S-L=29", 6061 Alloy custom butted tubingTop extraction battery
Fork: SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel
- Headset
- Acros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm
Handlebars: Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount
- Rims
- Syncros X15 Disc
- Spokes
- Black Spokes
- Front Hub
- Shimano HBTC50015B CL, 15x100mm
- Rear Hub
- Shimano Nexus 8 Speed
- Front Tyre
- Schwalbe G-One Overland 365 Performance, 700x45C
- Rear Tyre
- Schwalbe G-One Overland 365 Performance, 700x45C
- Shifter
- Shimano Alfine SL-S503 Rapid Fire Plus
- Crankset
- FSA CK-220 170mm
- Chainring
- Gates CDC 52T w/Guard
- Cassette
- Gates CDC 26T
- Chain
- Gates CDC 125T
- Brakes
- Shimano BR-MT200 Disc
- Rotors
- Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
- Seatpost
- Syncros M3.0, 31.6
- Saddle
- Syncros Capilano
- Pedals
- Marwi SP-827
- Mudguards
- Alumee alloy profile Fender
- Rear Rack
- Racktime Micro Rack SnapIt 2.0 8KG
- Lights
- Lezyne Fusion E550SM front lightRear Supernova TL3Z
- Kickstand
- Passage Kickstand
- Weight
- 22.5kg
- Motor
- Bosch Performance Line SX (BDU314Y)EU: 25kmh
- Battery
- Compact Tube 400Wh
- Display
- Bosch Purion 200
- Charger
- 2A Charger
Geometry
