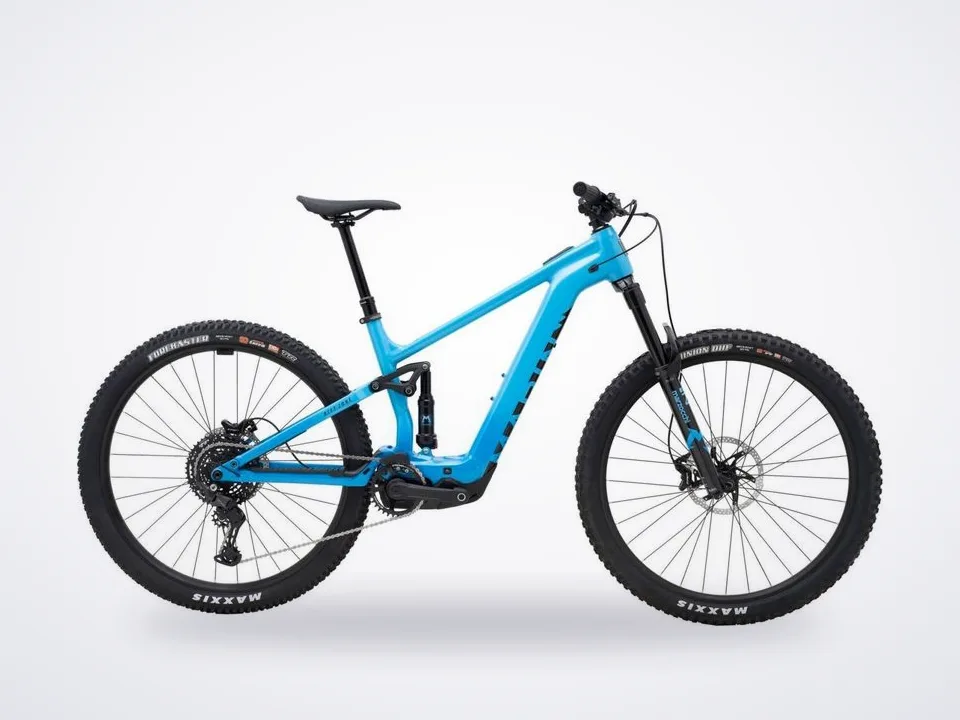

Marin Rift Zone El 1 Bosch

Made possible in part by Bosch’s new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride, with a power delivery so natural you might forget it’s an ebike. All of the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don’t require the full range and power output of more traditional eMTBs.

All three models are well-equipped with performance-focused components from top-tier supplier partners such as Fox, SRAM, Shimano, TRP and more. Throw a leg over one and discover just how agile and fun an eMTB can be.

The Rift Zone EL1 is smartly spec'd with air-sprung Marzozzchi Bomber suspension, Shimano's stout and smooth-shifting CUES 10-speed drivetrain and powerful TRP Slate EVO 4-piston disc brakes.

Specifications

Frame: All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

Fork

Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset

Shock

Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount

Headset

FSA Custom, Adjustable HTA Design

Stem

Marin 3D Forged Alloy, 35mm

Handlebars: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Grips

Marin Grizzly Lock On

Rims: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

Spokes

14g Black Stainless Steel

Front Hub

Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock

Rear Hub

Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock

Tyres: Front: Maxxis Minion DHF, 29x2.4" Maxxgrip, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX Terra EXO+

Rear Shifter

Shimano CUES SL-U6000-10R, 10-Speed

Rear Derailleur

Shimano CUES RD-U6000 GS, 10-Speed

Crankset

e*thirteen e*spec Plus, 160mm Length, 34T

Cassette

Shimano CS-LG300-10, 11-48T

Chain

Shimano LG500

Chainguide

e*thirteen e*Spec Chainguide

Front Brake

TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

Rear Brake

TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

Brake Levers

TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible

Seatpost: TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm

Saddle

Marin Speed Concept

Pedals

Marin MTB Plastic

Extras

Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Motor

Bosch Performance Line SX, 600W, 55Nm torque

Battery

Bosch 400 Wh Internal…
