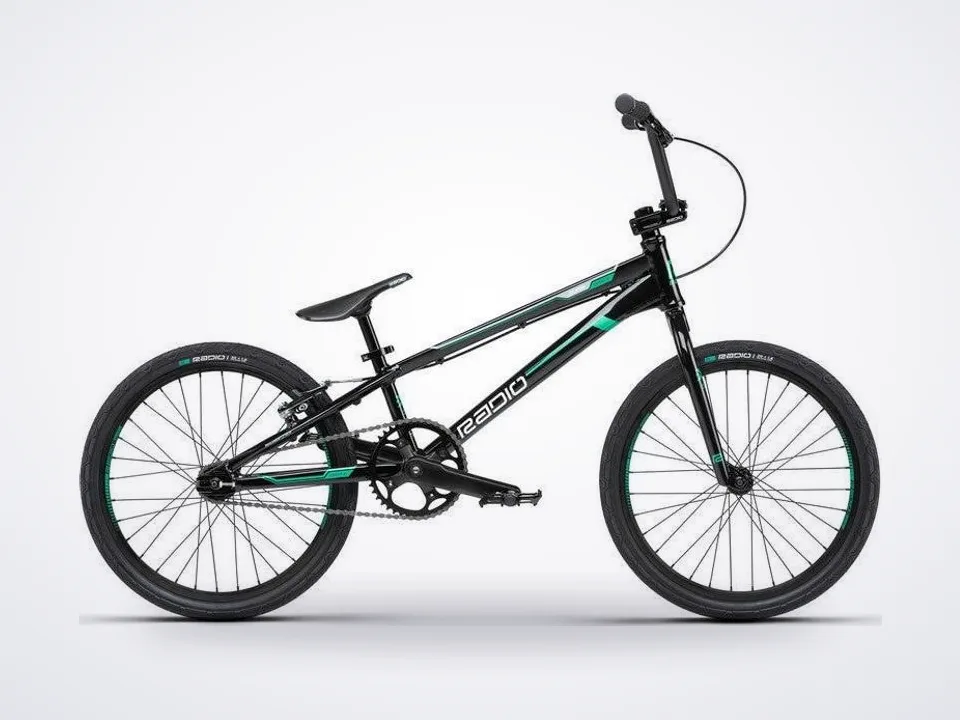

Radio Bikes Raceline Xenon Expert XL Race BMX

Fork

crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset

Bars

6061-T6 alloy bar

Grips

Radio Raceline "Xenon" grips, diamond knurling, clamp on grip, 139mm length

Stem

Radio Raceline "Cobalt" toploader stem, ext. 50mm, alloy

Headset

FSA "No.28" integrated headset, sealed, 1-1/8"

Lever

Promax "XL-378" brake lever, rear

Brakes

Promax "MV-85" brake, rear

Cranks

Radio Raceline "Xenon" 3pc crank, forged alloy, cnc machined, 170mm length

BB

Radio Raceline bb set, BSA square taper, sealed

Pedals

Radio Raceline "Xenon SLIM" pedal, alloy

Chain

KMC "Z6" chain, 1/2" x 3/32"

Sprocket

Radio Raceline sprocket, 42T, alloy

Freewheel/Driver

Radio Raceline driver, 16T, 1/2"- 3/32", sealed cassette

Front Hub

Radio Raceline "Xenon" front hub, alloy cnc, fully sealed, 32T, 3/8" crmo axle

Rear Hub: Radio Raceline "Xenon" rear hub, alloy cnc, fully sealed, 32T, disc brake cassette, 3/8" crmo axle

Front Rim

Radio Raceline "Clipper Expert" rim, pinned joint, 32H, alloy

Rear Rim

Radio Raceline "Clipper Expert" rim, pinned joint, 32H, alloy

Seat

Radio Raceline "Xenon" pivotal seat, no padding

Seat Post

Radio Raceline pivotal seat post, 22.2mm, alloy

Seat Clamp

Radio Raceline "Xenon" seat post, quick-release, alloy

Tires

Radio Raceline "Oxygen" tires, 20" x 1.6"

Weight

9.90kg / 19.86lbs

Frame / Bar Geometry

Top Tube Length

20.5''

Chain Stay Length

13.8''

Head Tube Angle

73.5°

Seat Tube Angle

71°

Bottom Bracket Height

10.8"

Bar Rise

7''

Bar Width

26.25"

Bar Backsweep

6°

Bar Upsweep

3°
