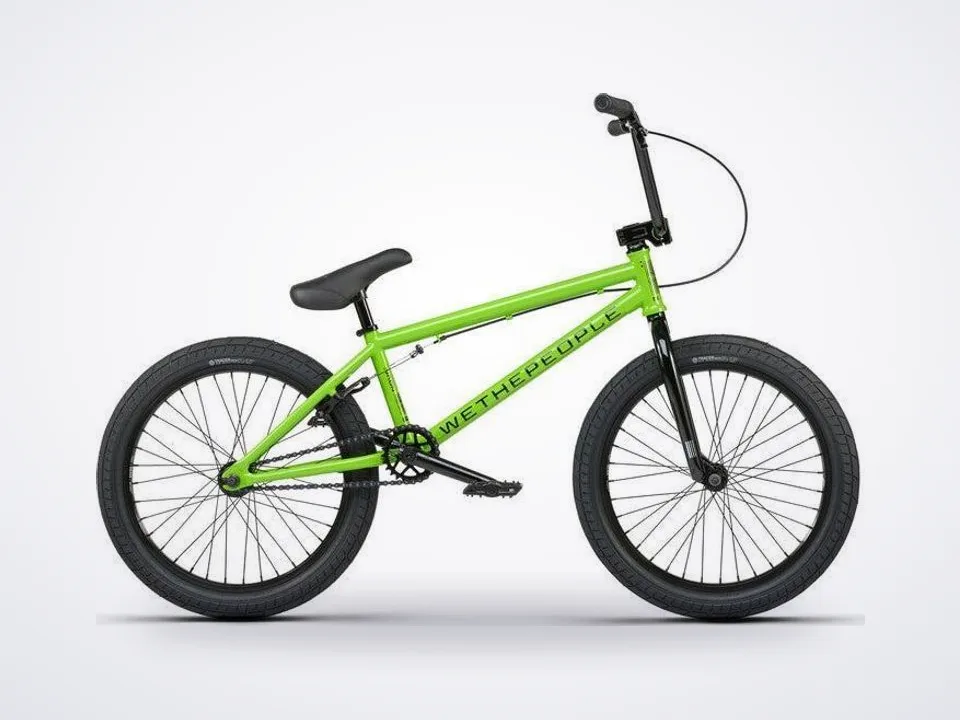

Wethepeople BMX Nova BMX

Color4

Frame

Wethepeople "NOVA" frame, 1020 hi-ten

Fork

SALT "AM 20" fork, 1020 hi-ten , 4130 crmo steerer, 26mm offset

Bars

SALT "NOVA" bar, 1020 hi-ten

Grips

SALT "EX" grips, 154mm, flangless

Stem

SALT "PRO" frontload stem, 50mm reach

Headset

SALT "PRO" int. headset, sealed bearing

Gyro

holes for removable gyro tabs

Lever

SALT "AM" brake lever, alloy

Brakes

Saltplus "GEO XL" alloy u-brake-rear

Cranks

SALT "Rookie" tubular 3pc crank, crmo, 165mm, 8 spline

BB

SALT "MID" bb, 19mm, press fit, sealed bearing

Pedals

ÉCLAT "Slash" pedals, nylon/fiberglass

Chain

SALT "AM" chain, Z1 type

Sprocket

SALT "Gateway" sprocket, steel, 25t

Driver

1pc cassette driver, 9t, loose ball bearing

Front Hub

SALT "NOVA" hub, alloy, loose ball, 3/8"s axle, 36h

Rear Hub

SALT "NOVA" cassette hub, semi sealed, 9t, 14mm axle, 36h

Hub Guards

-

Front Rim

SALT "BEAM" rim, single wall, 36h

Rear Rim

SALT "BEAM" rim, single wall, 36h

Seat

Wethepeople "NOVA" combo seat, mid padded

Seat Post

-

Seat Clamp

ÉCLAT "PURE" seat clamp, 6061-T6 forged alloy

Tires

SALT "Tracer" tires, 2.35", front & rear

Pegs

-

Weight

11.92kg / 26.29lbs

Frame / Bar Geometry

Top Tube Length

20"

Chain Stay Length

12.75"

Head Tube Angle

75°

Seat Tube Angle

71.5°

Bottom Bracket Height

11.75°

Stand Over Height

8.38"

Bar Rise

8.85"

Bar Width

29"

Bar Back Sweep

11°

Bar Upsweep

2°
