Orbea Wild TR M-TEAM 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike

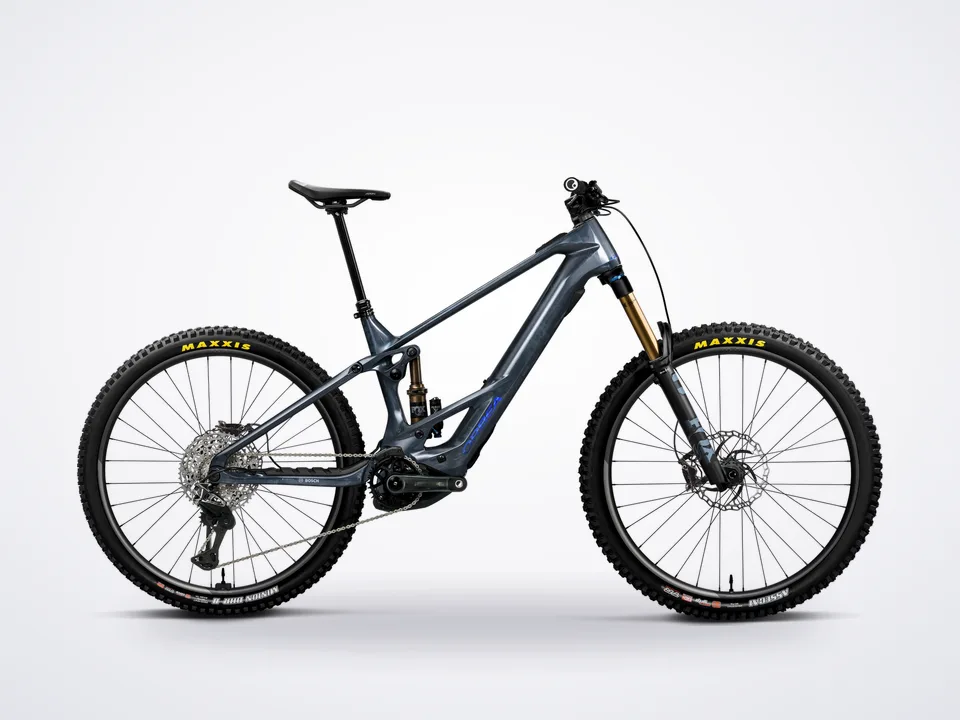

The 2027 Orbea Wild TR M-TEAM is the flagship full-power electric trail mountain bike in the Wild TR carbon range, built around Orbea's lightweight Wild OMR carbon frame. Powered by the Bosch Performance Line CX motor and a 750Wh PowerTube battery, it pairs long-range, high-torque pedal assist with 150mm of trail-tuned travel and full 29" wheels - finished with a top-tier electronic drivetrain and carbon components throughout.
Show full description and specs
Bosch Performance CX Power, All-Day Range
The Bosch Performance Line CX (Gen 5) motor delivers smooth, natural assistance and up to 120Nm of torque for steep, technical climbs, while the integrated 750Wh PowerTube battery and full-color Bosch Kiox 400C display give you the range and ride data to go bigger and stay out longer. An optional 250Wh Range Extender pushes total capacity to 1000Wh. As a Class 1, 20mph pedal-assist e-MTB, it's trail-legal wherever Class 1 ebikes are allowed.
Lightweight OMR Carbon, 150mm Trail Travel
Orbea's Wild OMR carbon frame trims weight and adds stiffness for a livelier, more precise ride. With 150mm of travel from a Fox 36 Float Factory fork with Kashima coat and a Fox Float X Factory shock and big 29" wheels, the M-TEAM climbs efficiently and stays composed on fast, rough descents.
Flagship Electronic Build
Shimano XTR M9260 12-speed electronic Di2 wireless shifting (XT M8250 switch), 4-piston Shimano XT 8220 hydraulic disc brakes, grippy Maxxis Assegai 2.5" MaxxGrip tires, Oquo Mountain Control MC32LTD carbon wheels, and an OC carbon cockpit make this the most capable, highest-spec Wild TR build.
Available in 4 colorways: Carbon - Blue, White - Carbon, Rose - Carbon, and MyO custom paint - in sizes S-XL.
Key Features
- Orbea Wild OMR carbon frame
- Bosch Performance Line CX motor (Gen 5, up to 120Nm) with 750Wh PowerTube battery and Bosch Kiox 400C display
- Class 1 / 20mph pedal-assist eMTB
- 150mm travel, full 29" wheels
- Fox 36 Float Factory Kashima fork + Fox Float X Factory shock
- Shimano XTR M9260 12-speed electronic Di2 drivetrain (XT M8250 wireless switch)
- Maxxis Assegai 2.5" MaxxGrip tires, Shimano XT 8220 4-piston brakes
- Oquo Mountain Control MC32LTD carbon wheels
- OC carbon cockpit; dropper-ready (Shimano SL-MT500 lever included)
Build Kit
- Frame
- Orbea Wild OMR Carbon, 29" Wheels, Concentric Boost 12x148
- Fork
- Fox 36 Float Factory, GRIP X2, Kashima, 150mm, 15x110
- Rear Shock
- Fox Float X Factory Trunnion 2-Pos Evol LV Custom Tune, 205x57.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
- Motor
- Bosch Performance Line CX (BDU3843)
- Battery
- Bosch PowerTube 750Wh Horizontal
- Display
- Bosch System Module Kiox 400C
- Crank
- e*thirteen Helix Core
- Chainguide
- e*thirteen Bosch CX Gen5 CL55 32-36t
- Shifter
- Shimano XT M8250 Di2 (wireless)
- Rear Derailleur
- Shimano XTR M9260 12-Speed Di2 (electronic)
- Cassette
- Shimano CS-M7200 10-51T, 12-Speed
- Chain
- Shimano M8100
- Handlebar
- OC Mountain Control MC10 Carbon, Rise 20mm, Width 800mm
- Stem
- OC Mountain Control…
