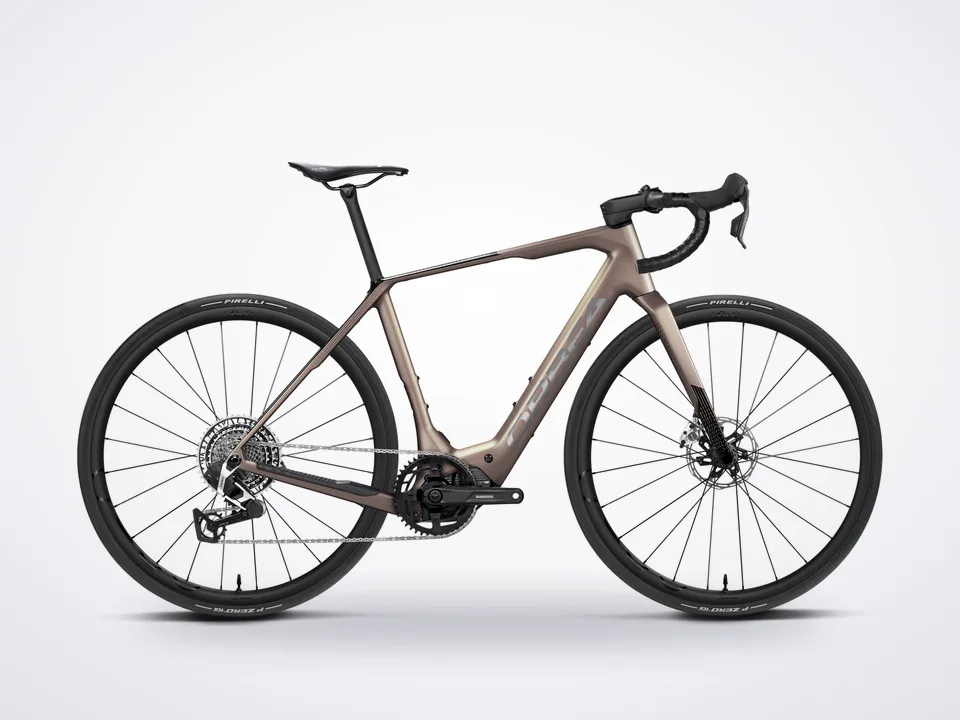

Orbea Denna M11e 28mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Denna M11e is a full-power electric gravel and all-road bike that opens up bigger rides on road, gravel, and everything between. Built on Orbea's carbon Denna frame with a full-carbon fork and powered by Shimano EP801 RS with an integrated 420Wh battery, it blends road-bike efficiency with the range and capability to explore far past the pavement.
Show full description and specs
Shimano Full-Power Assist
The Shimano EP801 RS drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, so the Denna M11e flattens climbs and stretches your range across long mixed-surface days. The integrated 420Wh battery keeps the bike clean and balanced, and as a Class 3 (28 mph) pedal-assist e-bike it's built to keep pace on the road and the trail.
Gravel & All-Road Versatility
The Denna runs 700c wheels with 45mm Pirelli Cinturato Gravel tires, a full-carbon fork, internal cable routing, and endurance geometry - stable and comfortable loaded up for all-day adventures, yet quick and efficient when the road turns smooth.
SRAM Red XPLR AXS Build
The Denna M11e is built with a SRAM Red XPLR AXS drivetrain, SRAM Red AXS hydraulic disc brakes, Oquo Road Control RC30TEAM wheels, and Pirelli tires - a fast, capable carbon e-gravel build ready to ride out of the shop.
Available in four colorways: Nickel / Carbon Raw, Escape Green / Foggy, Caramel / Metallic Gold, and a MyO custom-paint option - in sizes XS-XXL.
Key Features
- Shimano EP801 RS full-power motor (up to 85Nm) with integrated 420Wh battery
- Class 3 / 28mph pedal-assist e-bike
- Carbon OMR Orbea Denna frame, full-carbon fork
- 700c wheels, Pirelli Cinturato Gravel H 700x45c TLR
- SRAM Red XPLR AXS drivetrain
- SRAM Red AXS hydraulic disc brakes
- Oquo Road Control RC30TEAM wheels
Build Kit
- Frame
- Orbea Denna Carbon OMR
- Fork
- Orbea Denna OMR ICR, full carbon
- Motor
- Shimano EP801 RS (up to 85Nm)
- Battery
- Orbea Internal 420Wh
- Rear Derailleur
- SRAM Red XPLR AXS 13-Speed (wireless)
- Cassette
- SRAM XG-1391 XPLR 10-46t 13-Speed
- Brakes
- SRAM Red AXS Hydraulic Disc
- Crank
- Shimano Steps EM600
- Wheels
- Oquo Road Control RC30TEAM
- Tires
- Pirelli Cinturato Gravel H 700x45c TLR
- Seatpost
- OC Performance XP10 Carbon
- Handlebar
- OC Gravel GR31
- Sizing
- Orbea recommended rider height by size (approximate):
- XS
- 160-168 cm (5'0"-5'3")
- S: 166-174 cm (5'4"-5'8")
- M: 172-180 cm (5'8"-5'11")
- L: 178-186 cm (5'10"-6'1")
- XL
- 184-192 cm (6'1"-6'3")
- Xxl
- 190-198 cm (6'3"-6'6")
Frequently Asked
- How fast is the Orbea Denna M11e? It's a Class 3 e-bike with pedal assist up to 28 mph.
- What motor and battery does it use? Shimano EP801 RS (up to 85Nm) with an integrated 420Wh battery.
- Is it road or gravel? Both - the Denna is a do-it-all electric all-road / gravel bike.
- How does the M11e compare to the M20i and the top M10i? The M20i runs Shimano GRX Di2, while the M10i steps up to Shimano Dura-Ace…
