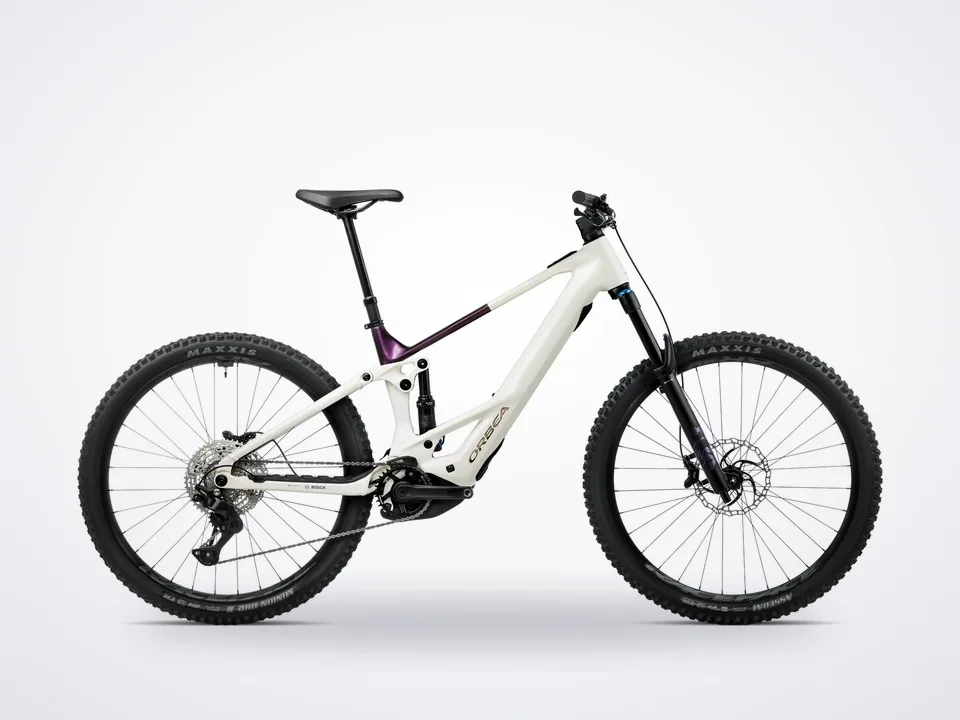

Orbea Wild TR H10 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Wild TR H10 is a full-power electric trail mountain bike built to climb efficiently and let loose on the way down. Powered by the Bosch Performance Line CX motor and a 750Wh PowerTube battery, the Wild TR pairs long-range, high-torque pedal assist with full 29" wheels and Orbea's Wild Hydro aluminum frame for confident, all-day riding on technical terrain.
Show full description and specs
Bosch Performance CX Power, All-Day Range
The Bosch Performance Line CX (Gen 5) motor delivers smooth, natural assistance and up to 120Nm of torque for steep, technical climbs, while the integrated 750Wh PowerTube battery and Bosch System Controller give you the range and ride data to go bigger and stay out longer. An optional 250Wh Range Extender pushes total capacity to 1000Wh. As a Class 1, 20mph pedal-assist e-MTB, it's trail-legal wherever Class 1 ebikes are allowed.
29er Geometry, 150mm Trail Travel
Big 29" wheels roll fast and hold momentum through rough, technical terrain. With 150mm of travel from a Fox 36 Float Performance fork and Fox Float Performance shock, plus Orbea's Wild Hydro aluminum frame, the H10 is dialed for confident climbs and composed, hard-charging descents on all-day trail rides.
Upgraded Trail-Ready Build
Shimano Deore M7200 12-speed shifting, powerful 4-piston Shimano MT620 hydraulic disc brakes with 203mm rotors, grippy Maxxis Assegai 2.5" MaxxGrip tires, Race Face AR30 tubeless-ready wheels, and a dropper-ready cockpit mean it's ready to ride hard right out of the shop.
Available in three colorways: White Cream / Sunset (Gloss), Metallic Rust (Matt/Gloss), and Titanium Grey / Fantasy Purple - in sizes S-XL.
Key Features
- Bosch Performance Line CX motor (Gen 5, up to 120Nm) with 750Wh PowerTube battery and Bosch System Controller
- Class 1 / 20mph pedal-assist eMTB
- 150mm travel, full 29" wheels
- Fox 36 Float Performance fork + Fox Float Performance shock
- Orbea Wild Hydro aluminum frame
- Shimano Deore M7200 12-speed drivetrain
- Maxxis Assegai 2.5" MaxxGrip tires, Shimano MT620 4-piston brakes
- Race Face AR30 tubeless-ready wheels
- Dropper-ready cockpit (Shimano SL-MT500 lever included)
Build Kit
- Frame
- Orbea Wild Hydro Aluminum, 29" Wheels, Concentric Boost 12x148
- Fork
- Fox 36 Float Performance, GRIP 3-Pos, 150mm, 15x110
- Rear Shock
- Fox Float Performance Trunnion 2-Pos Evol LV Custom Tune, 205x57.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
- Motor
- Bosch Performance Line CX (BDU3843)
- Battery
- Bosch PowerTube 750Wh Horizontal (BBP3770)
- Display
- Bosch System Controller + Mini Remote
- Charger
- Bosch 4A Charger
- Crank
- e*thirteen Helix Core
- Chainguide
- e*thirteen Bosch CX Gen5 CL55 32-36t
- Shifter
- Shimano Deore M6200 I-Spec EV
- Rear Derailleur
- Shimano Deore M7200 SGS Shadow Plus
- Cassette
- Shimano CS-M6200 10-51T, 12-Speed
- Chain
- Shimano M6100
- Handlebar
- OC Mountain Control MC30, Rise 20mm, Width 800mm
- Stem
- OC Mountain Control MC21, 0°
- Computer Mount
- OC Computer Mount CM-05 (Garmin/Sigma Compatible)
- …
