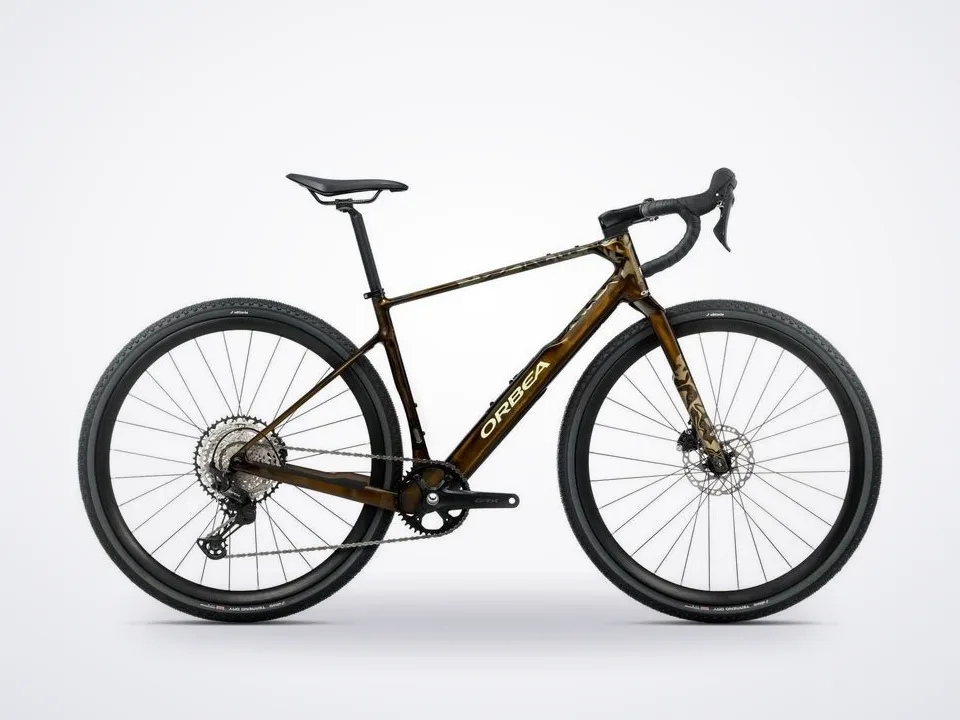

Orbea Terra M30TEAM
In stock at 4 shops in Boulder and Los Angeles and Salt Lake City and Boston
Prices and stock checked Oct 22.
Where to buy
4 shopsAbout this bike
The 2027 Orbea Terra M30TEAM is the most accessible carbon Terra, pairing the lightweight Terra OMR carbon frame with Shimano's gravel-specific GRX 12-speed drivetrain. It's a fast, capable, and versatile gravel bike ready for everything from all-day adventures to race day.
Show full description and specs
Terra OMR Carbon Frame
The Terra OMR monocoque carbon frame is light, efficient, and gravel-tuned, with internal routing, BB386EVO, a UDH dropout, power-meter compatibility, an integrated Lockr downtube storage compartment, plus MMS accessory and fender mounts. The full-carbon Terra Race ICR fork keeps the front end light and controlled.
Shimano GRX 12-Speed Drivetrain
A Shimano GRX RX820 2x12 gravel drivetrain with an 11-36t cassette delivers crisp, gravel-tuned shifting and ergonomic control. Hydraulic disc brakes provide strong, modulated stopping in all conditions.
Gravel-Ready Roll
Tubeless-ready 700c wheels and grippy Vittoria Terreno T30 700x45c tires keep the Terra M30TEAM fast and sure-footed across mixed terrain - and the carbon frame is ready to upgrade as you grow.
Available in three colorways: Nickel - Met Cinnamon, Acid Gum - Fantasy Purple Carbon View, and Caramel Carbon View - plus a custom MyO option - in sizes XS-XXL.
Key Features
- Orbea Terra OMR monocoque carbon frame, 12x142, internal routing, UDH, power-meter ready, Lockr storage
- Orbea Terra Race ICR full-carbon fork, 12x100
- Shimano GRX RX820 2x12 gravel drivetrain, 11-36t range
- Hydraulic disc brakes
- Tubeless-ready 700c wheels
- Vittoria Terreno T30 700x45c gravel tires
- Gravel geometry, sizes XS-XXL
Build Kit
- Frame: Orbea Terra OMR monocoque carbon, 12x142, internal routing, UDH, power-meter compatible, Lockr storage, MMS + fender mounts
- Fork
- Orbea Terra Race ICR full carbon, 12x100
- Brakes
- Shimano RX410 Hydraulic Disc
- Rear Derailleur
- Shimano GRX RX820
- Shifters
- Shimano GRX RX610
- Cassette
- Shimano HG710 11-36t 12-Speed
- Chain
- Shimano M6100
- Wheels
- Alloy, Tubeless, 700c
- Tires
- Vittoria Terreno T30 700x45c
- Saddle
- Fizik Terra Argo X7
- Seatpost
- SP 0.2 Carbon, 27.2mm
- Handlebar
- OC Gravel GR31
- Stem
- OC Road Performance RP23
- Headset
- FSA 1-1/2" Integrated Aluminium
- Sizing
- Orbea's recommended rider height by size (approximate):
- XS
- 155-166 cm (5'1"-5'5")
- S: 167-172 cm (5'6"-5'8")
- M: 173-179 cm (5'8"-5'10")
- L: 180-185 cm (5'11"-6'1")
- XL
- 186-191 cm (6'1"-6'3")
- Xxl
- 192-207 cm (6'4"-6'9")
Frequently Asked
- Is the M30TEAM a real carbon gravel bike? Yes - it uses the same Terra OMR carbon frame as the higher TEAM trims, making it the most accessible way into the carbon Terra line.
- What is the Lockr compartment? An integrated downtube storage door for tools, tubes, and snacks - no extra bags needed.
- Can I add a power meter? Yes - the frame is power-meter compatible.
- Can I run tubeless tires? Yes - the 700c wheels are tubeless-ready.
- What's the step up to the M35TEAM? The M35TEAM adds Oquo RC30TEAM carbon wheels for a faster, lighter-rolling build on…
