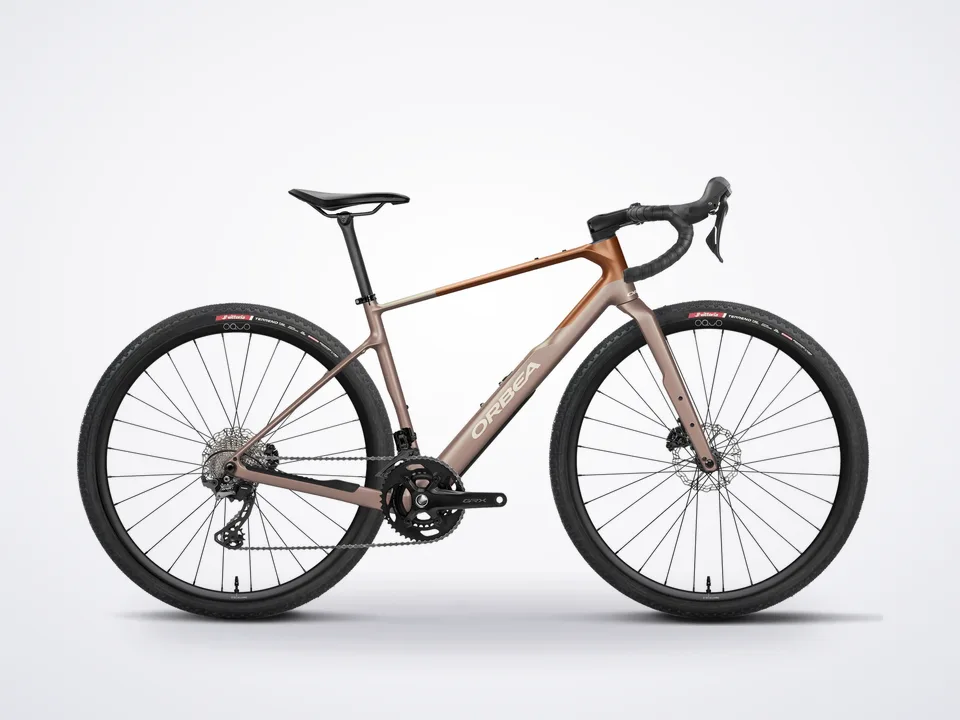

Orbea Terra M20TEAM
In stock at 4 shops in Minneapolis and Boston and Los Angeles and Salt Lake City
Prices and stock checked Oct 22.
Where to buy
4 shopsAbout this bike
The 2027 Orbea Terra M20TEAM steps up the carbon Terra build with a full Shimano GRX RX820 2x12 groupset and Oquo carbon-ready wheels. It's a fast, refined gravel bike that handles big days, mixed terrain, and race efforts with ease.
Terra OMR Carbon Frame
The Terra OMR monocoque carbon frame is light and gravel-tuned, with internal routing, BB386EVO, a UDH dropout, power-meter compatibility, an integrated Lockr downtube storage compartment, plus MMS and fender mounts. The full-carbon Terra Race ICR fork keeps the front end light and precise.
Show full description and specs
Shimano GRX RX820 2x12 Drivetrain
A full Shimano GRX RX820 2x12 gravel groupset delivers crisp, ergonomic shifting and powerful hydraulic braking, paired with an 11-36t cassette for a versatile range.
Oquo Wheels + Gravel Roll
Oquo Road Control RC25PRO wheels and Vittoria Terreno T30 700x45c tubeless tires give the M20TEAM a faster, more confident roll on dirt and pavement alike.
Available in three colorways: Nickel - Met Cinnamon, Acid Gum - Fantasy Purple Carbon View, and Caramel Carbon View - plus a custom MyO option - in sizes XS-XXL.
Key Features
- Orbea Terra OMR monocoque carbon frame, 12x142, internal routing, UDH, power-meter ready, Lockr storage
- Orbea Terra Race ICR full-carbon fork, 12x100
- Full Shimano GRX RX820 2x12 gravel groupset, 11-36t range
- Shimano GRX RX820 hydraulic disc brakes
- Oquo Road Control RC25PRO wheels
- Vittoria Terreno T30 700x45c gravel tires
- Gravel geometry, sizes XS-XXL
Build Kit
- Frame: Orbea Terra OMR monocoque carbon, 12x142, internal routing, UDH, power-meter compatible, Lockr storage, MMS + fender mounts
- Fork
- Orbea Terra Race ICR full carbon, 12x100
- Brakes
- Shimano RX820 Hydraulic Disc
- Rear Derailleur
- Shimano GRX RX820
- Shifters
- Shimano GRX RX820
- Cassette
- Shimano HG710 11-36t 12-Speed
- Chain
- Shimano M7100
- Wheels
- Oquo Road Control RC25PRO
- Tires
- Vittoria Terreno T30 700x45c
- Saddle
- Fizik Terra Argo X7
- Seatpost
- OC Performance XP10 Carbon, 27.2mm
- Handlebar
- OC Gravel GR31
- Stem
- OC Road Performance RP10
- Headset
- FSA 1-1/2" Integrated Aluminium
- Sizing
- Orbea's recommended rider height by size (approximate):
- XS
- 155-166 cm (5'1"-5'5")
- S: 167-172 cm (5'6"-5'8")
- M: 173-179 cm (5'8"-5'10")
- L: 180-185 cm (5'11"-6'1")
- XL
- 186-191 cm (6'1"-6'3")
- Xxl
- 192-207 cm (6'4"-6'9")
Frequently Asked
- How does the M20TEAM compare to the M30TEAM? The M20TEAM upgrades to a full GRX RX820 groupset (shifters and brakes) and Oquo RC25PRO wheels over the M30TEAM's mixed build and alloy wheels.
- Can I add a power meter? Yes - the frame is power-meter compatible.
- What is the Lockr compartment? An integrated downtube storage door for tools and essentials.
- Can I run tubeless tires? Yes - the wheels and tires are tubeless-ready.
- What's the step up to the M20iTEAM? The M20iTEAM moves to Shimano GRX Di2 electronic shifting and Oquo RC30TEAM carbon wheels.
- What's new for 2027? Full GRX RX820 spec and new 2027 Terra colorways.
