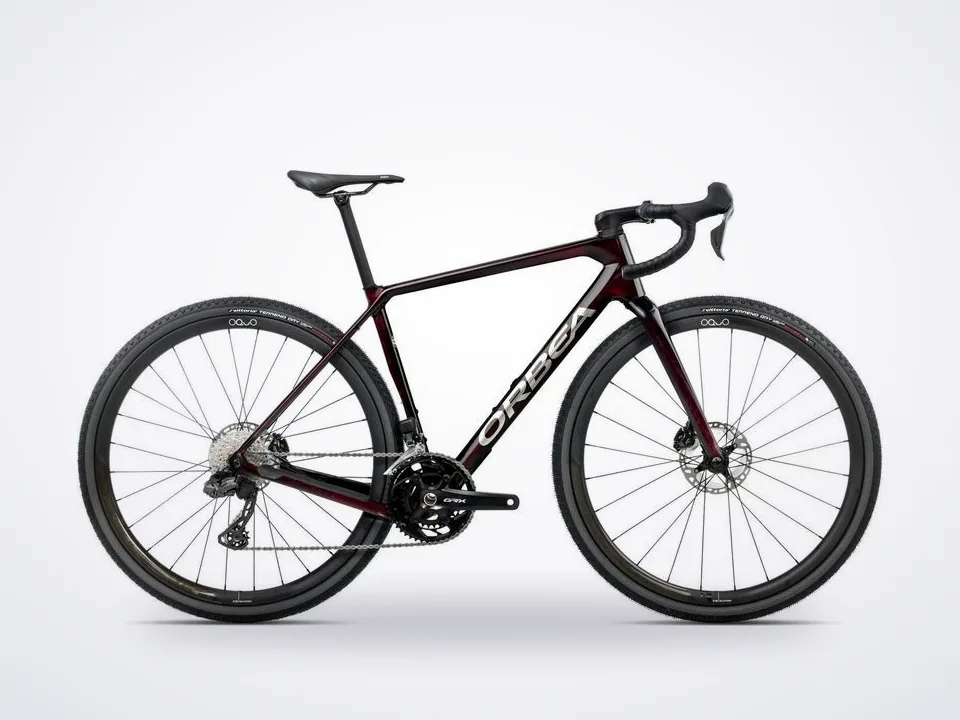

Orbea Terra M20iTEAM
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Terra M20iTEAM brings electronic Shimano GRX Di2 shifting and Oquo carbon-class TEAM wheels to the Terra OMR carbon platform. It's a fast, refined, race-ready gravel bike with crisp push-button shifting and a premium build.
Terra OMR Carbon Frame
The Terra OMR monocoque carbon frame is light and gravel-tuned, with internal routing, BB386EVO, a UDH dropout, power-meter compatibility, an integrated Lockr downtube storage compartment, plus MMS and fender mounts. The full-carbon Terra Race ICR fork keeps the front end light and precise.
Show full description and specs
Shimano GRX Di2 Electronic Shifting
A Shimano GRX Di2 RX825 2x12 electronic drivetrain delivers fast, consistent push-button shifts across an Ultegra 11-34t cassette. Hydraulic disc brakes give strong, modulated control.
Oquo TEAM Wheels + Gravel Roll
Oquo Road Control RC30TEAM wheels and Vittoria Terreno T30 700x45c tubeless tires make the M20iTEAM fast, light, and confident across all terrain.

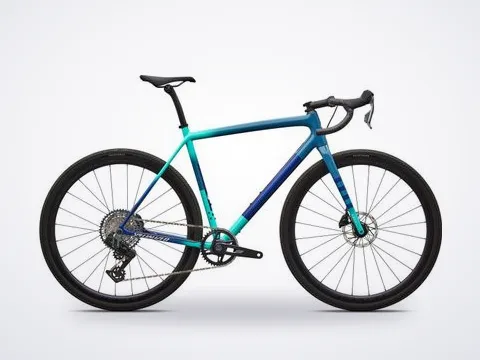

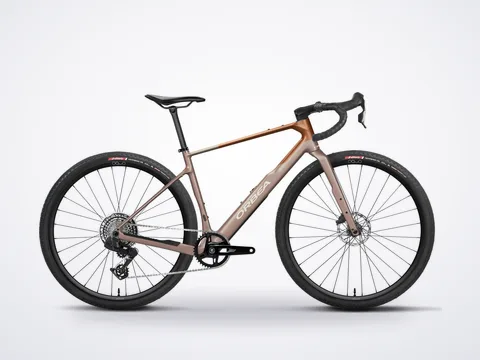

Available in three colorways: Nickel - Met Cinnamon, Acid Gum - Fantasy Purple Carbon View, and Caramel Carbon View - plus a custom MyO option - in sizes XS-XXL.
Key Features
- Orbea Terra OMR monocoque carbon frame, 12x142, internal routing, UDH, power-meter ready, Lockr storage
- Orbea Terra Race ICR full-carbon fork, 12x100
- Shimano GRX Di2 RX825 2x12 electronic drivetrain
- Shimano Ultegra 11-34t cassette
- Hydraulic disc brakes
- Oquo Road Control RC30TEAM wheels
- Vittoria Terreno T30 700x45c gravel tires
- Gravel geometry, sizes XS-XXL
Build Kit
- Frame: Orbea Terra OMR monocoque carbon, 12x142, internal routing, UDH, power-meter compatible, Lockr storage, MMS + fender mounts
- Fork
- Orbea Terra Race ICR full carbon, 12x100
- Brakes
- Shimano RX820 Hydraulic Disc
- Rear Derailleur
- Shimano GRX Di2 RX825 (electronic)
- Shifters
- Shimano GRX Di2 RX825
- Cassette
- Shimano Ultegra R8100 11-34t 12-Speed
- Chain
- Shimano M7100
- Wheels
- Oquo Road Control RC30TEAM
- Tires
- Vittoria Terreno T30 700x45c
- Saddle
- Fizik Terra Argo X3 Kium
- Seatpost
- OC Performance XP10 Carbon, 27.2mm
- Handlebar
- OC Gravel GR10 Carbon
- Stem
- OC Road Performance RP11
- Headset
- FSA 1-1/2" Integrated Aluminium
- Sizing
- Orbea's recommended rider height by size (approximate):
- XS
- 155-166 cm (5'1"-5'5")
- S: 167-172 cm (5'6"-5'8")
- M: 173-179 cm (5'8"-5'10")
- L: 180-185 cm (5'11"-6'1")
- XL
- 186-191 cm (6'1"-6'3")
- Xxl
- 192-207 cm (6'4"-6'9")
Frequently Asked
- Is the shifting electronic? Yes - Shimano GRX Di2 is semi-wireless electronic shifting.
- How does the M20iTEAM compare to the M20TEAM? The M20iTEAM upgrades to GRX Di2 electronic shifting and Oquo RC30TEAM carbon wheels over the M20TEAM's mechanical groupset and RC25PRO wheels.
- Can I add a power meter? Yes - the frame is power-meter compatible.
- What is the Lockr compartment? An integrated downtube storage door for tools and essentials.
- Can I run tubeless tires? Yes - the wheels and tires are tubeless-ready.
- What's new for 2027? Shimano GRX Di2 spec, Oquo TEAM…
