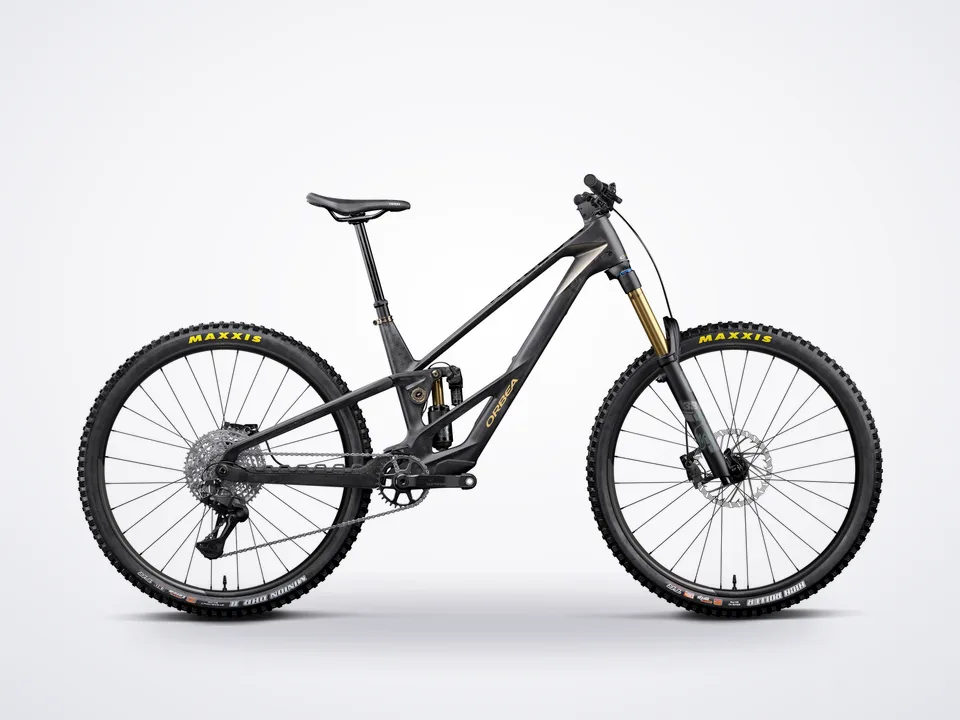

Orbea Rallon RS-LTD 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike

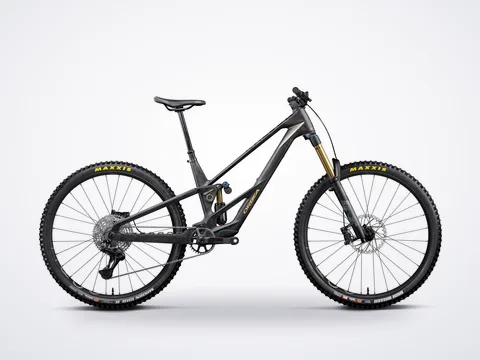

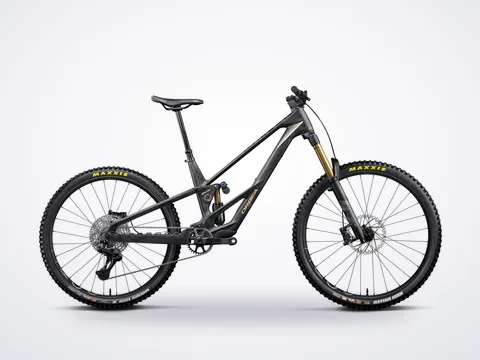

The 2027 Orbea Rallon RS-LTD is the flagship lightweight electric enduro mountain bike - an analog-feel eMTB with a quiet, intelligent helping hand. Built on Orbea's Rallon RS OMR carbon frame with 180mm of front travel and 170mm out back, powered by the ultra-compact TQ HPR40 motor and an integrated 290Wh battery, the RS-LTD adds Fox's electronically controlled Live Valve Neo suspension and a full Shimano XTR Di2 wireless build for the most refined, hard-charging ride in the range.
Show full description and specs
TQ HPR40 Lightweight Assist
The compact, near-silent TQ HPR40 Harmonic Pin Ring drive delivers up to 40Nm of torque and 200W of peak assistance that never overpowers your own input - so the Rallon RS climbs with a smooth, natural feel while keeping system weight to a minimum. The integrated 290Wh battery and clean cockpit keep the bike light and balanced, and as a Class 1, 20mph pedal-assist eMTB it's trail-legal wherever Class 1 ebikes are allowed.
Live Valve Neo Suspension, 170mm Travel
With 180mm up front from a Fox 38 Float Factory fork and 170mm out back via a Fox Float X2 Live Valve Neo electronic shock, the RS-LTD reads the trail and adjusts damping in milliseconds - firm and efficient on the climbs, fully open and composed on the descents. Downhill-inspired geometry, a low center of gravity, and Mullet-or-29" wheel compatibility let you charge the steepest, roughest enduro terrain.
Shimano XTR Di2 Flagship Build
The RS-LTD runs Shimano's wireless XTR M9260 Di2 12-speed drivetrain, top-tier Shimano XTR 4-piston hydraulic disc brakes, an integrated OC electronic dropper post, premium Oquo Mountain Control wheels, and grippy Maxxis High Roller III MaxxGrip tires - the lightest, highest-end finishing kit in the Rallon RS line.
Available in three colorways: Fuel Carbon View / Magic Gold (Matt), Frozen Concrete (Gloss) / Diamond Carbon View (Matt), and MyO custom paint - in sizes S-XL.
Key Features
- TQ HPR40 motor (up to 40Nm, 200W peak) with integrated 290Wh battery
- Class 1 / 20mph pedal-assist eMTB
- 180mm front / 170mm rear travel
- Fox 38 Float Factory fork + Fox Float X2 Live Valve Neo electronic shock
- Orbea Rallon RS OMR carbon frame (Mullet & 29" compatible)
- Shimano XTR M9260 Di2 wireless 12-speed drivetrain
- Shimano XTR 4-piston hydraulic disc brakes
- Maxxis High Roller III 2.40" MaxxGrip tires
- Oquo Mountain Control MC32LTD wheels
- Integrated OC electronic dropper post
Build Kit
- Frame
- Orbea Rallon RS OMR Carbon, Mullet & 29" compatible, Concentric Boost 12x148
- Fork
- Fox 38 Float Factory, GRIP X2, 180mm, QR15x110, Kashima
- Rear Shock
- Fox Float X2 Live Valve Neo Factory Trunnion, Evol LV custom tune, 205x62.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
- Motor
- TQ HPR40
- Battery
- TQ HPR 290Wh
- Charger
- TQ Charger 4A
- Crank
- e*thirteen Helix Race alloy 32T
- Chainguide
- Orbea eBike chainguide
- Shifter
- Shimano XTR M9250 (Di2 wireless)
- Rear Derailleur
- Shimano XTR M9260 12-Speed (Di2)
- Cassette
- Shimano CS-M9200 10-51t…
