Orbea Orca M30
In stock at 2 shops in Boston and Los Angeles
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike

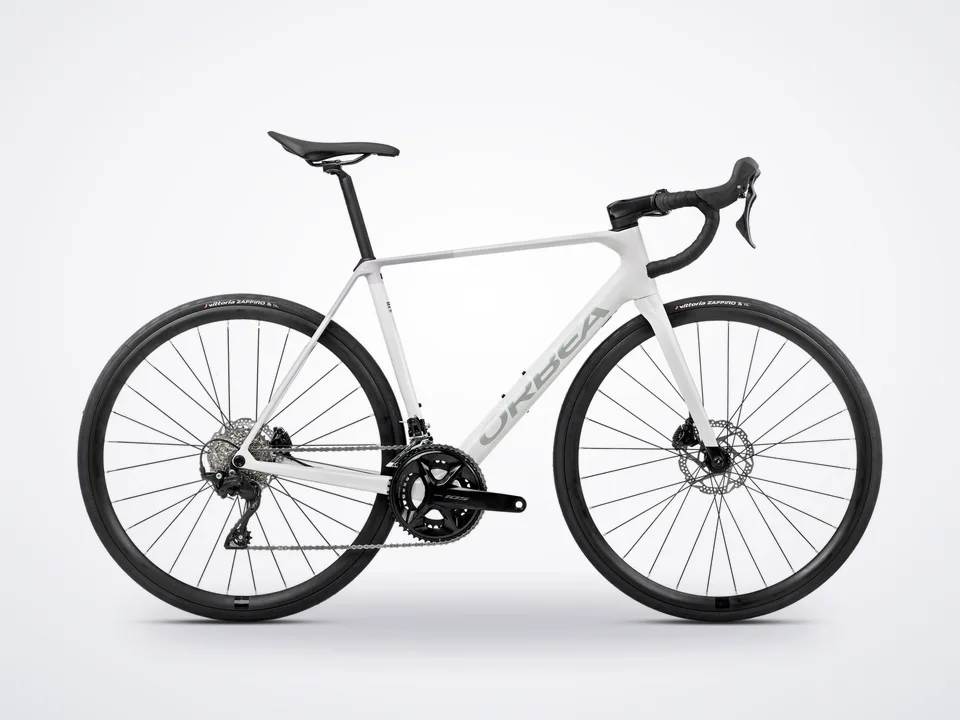

The 2027 Orbea Orca M30 is a lightweight carbon road race bike built on Orbea's Orca OMR monocoque carbon frame and full-carbon fork. Fast, responsive, and efficient, it pairs race-ready road geometry with a dependable Shimano 105 12-speed mechanical drivetrain and hydraulic disc brakes - the most accessible way into the Orca carbon race line.
Show full description and specs
Orca OMR Carbon Frame
The Orca OMR monocoque carbon frame is light, stiff, and efficient, with internal cable routing, a 12x142 thru-axle, and power-meter compatibility. Race road geometry keeps the M30 sharp and responsive on climbs, sprints, and fast group rides.
Shimano 105 12-Speed Drivetrain
A Shimano 105 R7100 2x12 mechanical drivetrain delivers crisp, precise road shifting across an 11-34t cassette and a 50/34 compact crank. Shimano 105 R7170 hydraulic disc brakes provide strong, controlled, all-weather stopping.
Race-Ready Roll
Tubeless-ready 700c alloy wheels and fast Continental Grand Prix 28c tires keep the Orca M30 quick and efficient, ready to ride out of the shop and upgrade as you grow.
Available in three colorways: Iris White (Gloss) - Lilac (Matt), Cobalt Blue - Carbon Raw (Matt), and Diamond Carbon View (Matt) - Titan Grey (Gloss) - in sizes 47-60.
Key Features
- Orbea Orca OMR monocoque carbon frame, 12x142, internal routing, power-meter ready
- Orca OMR full-carbon fork
- Shimano 105 R7100 2x12 mechanical drivetrain
- Shimano 105 11-34t cassette, 50/34 compact crank
- Shimano 105 R7170 hydraulic disc brakes
- Tubeless-ready 700c alloy wheels
- Continental Grand Prix 700x28c tires
- Race road geometry, sizes 47-60
Build Kit
- Frame: Orbea Orca OMR monocoque carbon, 12x142, internal routing, power-meter compatible
- Fork
- Orbea Orca OMR full carbon, 12x100
- Brakes
- Shimano 105 R7170 Hydraulic Disc
- Rear Derailleur
- Shimano 105 R7100
- Shifters
- Shimano 105 R7120
- Cassette
- Shimano 105 R7100 11-34t 12-Speed
- Crankset
- Shimano 105 R7100, 50/34t
- Wheels
- Alloy, Tubeless, 700c, 19c, 28H
- Tires
- Continental Grand Prix Foldable 700x28c
- Saddle
- Fizik Aliante R5
- Sizing
- Orbea's recommended rider height by size (approximate):
- 47: 157-165 cm (5'2"-5'5")
- 49: 163-170 cm (5'4"-5'7")
- 51: 168-175 cm (5'6"-5'9")
- 53: 173-180 cm (5'8"-5'11")
- 55: 178-185 cm (5'10"-6'1")
- 57: 183-190 cm (6'0"-6'3")
- 60: 188-198 cm (6'2"-6'6")
Frequently Asked
- Is the Orca M30 a real carbon race bike? Yes - it uses the same Orca OMR carbon frame as the higher trims, making it the most accessible way into the Orca race line.
- Is the shifting electronic or mechanical? The M30 uses mechanical Shimano 105 12-speed. The M30i steps up to 105 Di2 electronic shifting.
- Can I add a power meter? Yes - the frame is power-meter compatible.
- Can I run tubeless tires? Yes - the 700c wheels are tubeless-ready.
- What's the step up to the M30i? The M30i moves to Shimano 105 Di2 electronic shifting on the same frame.
- What's new for 2027? Updated Shimano 105 12-speed spec and new 2027 colorways.
