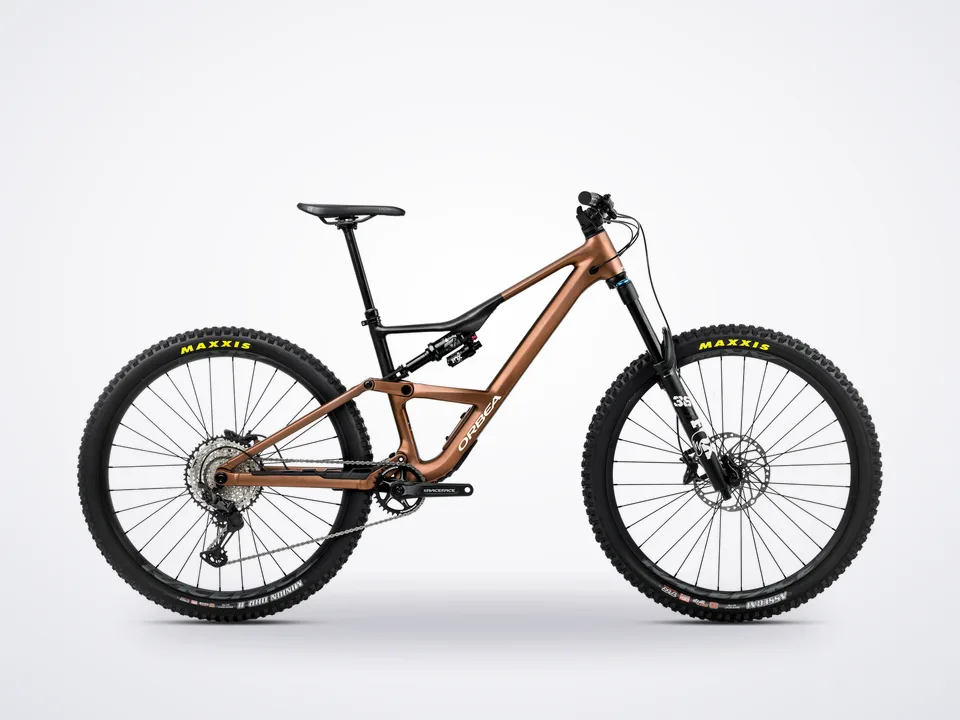

Orbea Occam LT H10
In stock at 2 shops in Los Angeles and Salt Lake City
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The 2027 Orbea Occam LT H10 is a long-travel trail bike built to charge hard, pairing a 160mm Fox 36 fork and grippy Maxxis Assegai rubber with a reliable Shimano XT drivetrain. With Concentric rear suspension, aggressive Pure Trail geometry, and a dropper post, the Occam LT H10 climbs efficiently and descends with serious confidence - an alloy all-mountain bike that loves steep, technical terrain.
Show full description and specs
Long-Travel Concentric Trail Frame
Orbea's Occam Hydro alloy frame uses the Concentric rear suspension layout and Pure Trail geometry, tuned here for long travel and aggressive riding. Boost 12x148 spacing, 29" wheels, and an asymmetric design deliver a stable, confident platform that's happy in steep, technical terrain.
160mm Fox 36 + Maxxis Assegai Grip
A 160mm Fox 36 Float Performance fork and Fox Float X rear shock deliver smooth, controlled long-travel suspension, while aggressive Maxxis Assegai 2.50" MaxxGrip tires dig in for maximum traction when you push hard into corners and steep, loose descents.
Shimano XT 12-Speed Drivetrain
A Shimano XT M8200 rear derailleur and shifter deliver crisp, precise mechanical shifting across a wide 10-51t range, and Shimano MT620 hydraulic disc brakes add extra stopping power. Race Face AR wheels and a Race Face Aeffect crank sharpen the package.
- Available in three colorways
- Cinnamon - Black, Green - Gum, and Tanzanite - in sizes S-XL.
Key Features
- Orbea Occam Hydro alloy frame, Concentric suspension, Pure Trail geometry
- 160mm Fox 36 Float Performance fork + Fox Float X shock
- Dropper seatpost with Shimano remote
- Shimano XT M8200 12-speed drivetrain
- Shimano MT620 hydraulic disc brakes
- Maxxis Assegai 2.50" MaxxGrip tires
- Race Face AR tubeless-ready 29" wheels
- Long-travel trail geometry, sizes S-XL
Build Kit
- Frame
- Orbea Occam Hydro alloy, Concentric, Boost 12x148, Pure Trail geometry, 29"
- Fork
- Fox 36 Float Performance 160mm, Grip 3-Pos, QR15x110
- Shock
- Fox Float X Performance 2-Pos, Evol LV, 210x55mm
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
- Stem
- OC Mountain Control MC21, 0deg
- Handlebar
- OC Mountain Control MC30, Rise 20, 800mm
- Brakes
- Shimano MT620 Hydraulic Disc
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus
- Shifter
- Shimano XT M8200 I-Spec EV
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Chain
- Shimano M6100
- Crankset
- Race Face Aeffect, 32t
- Wheels
- Race Face AR 30c, Tubeless Ready
- Tires
- Maxxis Assegai 2.50" 3C MaxxGrip Exo+ TR
- Seatpost
- Dropper post with Shimano SL-MT500 remote
- Saddle
- Fizik Terra Ridon X5 145mm
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-165 cm (4'11"-5'5")
- M: 165-177 cm (5'5"-5'10")
- L: 177-188 cm (5'10"-6'2")
- XL
- 186-198 cm (6'1"-6'6")
Frequently Asked
- What kind of bike is the Occam LT? It's a long-travel trail / all-mountain bike - 160mm front travel, Concentric suspension, and Pure Trail geometry built to descend hard while still pedaling efficiently.
- How much travel does it have? A 160mm fork…
