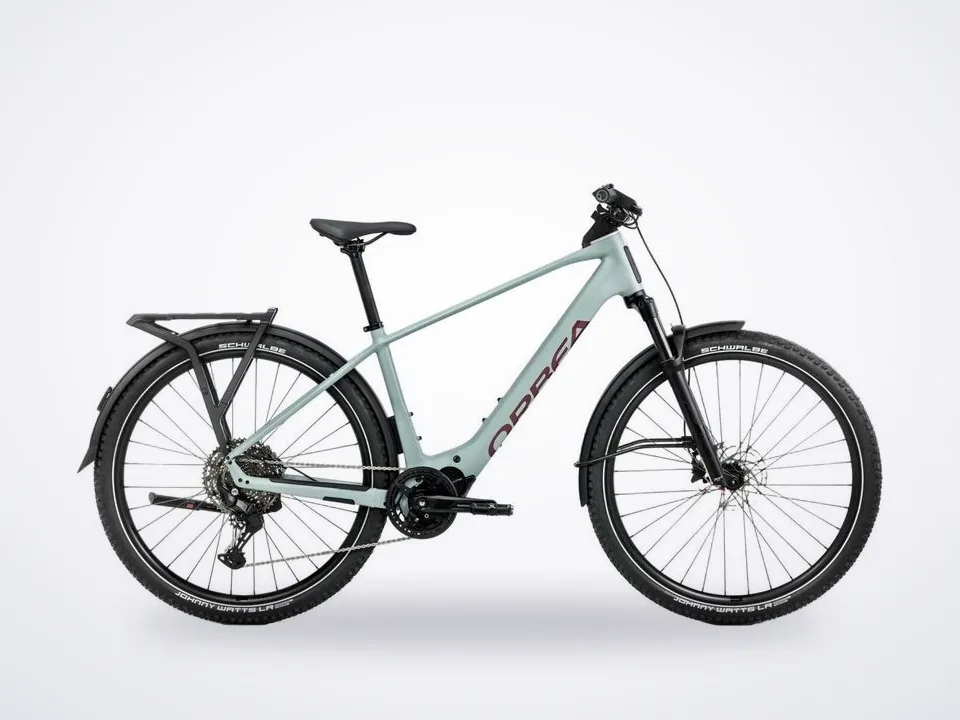

Orbea Kemen ADV 20

At the heart of the build is Shimano's EP600 mid-drive motor (600W, 85Nm of torque) paired with a 630Wh integrated battery, delivering smooth, powerful assistance that makes even the steepest climbs feel effortless — with enough range to keep going all day. And if you need even more capacity, an optional 252Wh range extender battery can be added for 33% more range.

The hydroformed 6061 aluminium frame is lighter and stiffer than it looks, with full internal cable routing for a clean, uncluttered build. A 100mm SR Suntour XCR Air suspension fork takes the edge off rough pavement and trail surfaces, while Magura AT2 hydraulic disc brakes deliver reliable stopping power in any conditions. Schwalbe Johnny Watts 60mm knobby tires with puncture protection and reflective stripes keep you rolling confidently on everything from wet asphalt to dirt paths.

Available in standard and low-step frame shapes across four sizes.

Key Features

Motor

Shimano EP600 mid-drive — 600W, 85Nm

Battery

630Wh integrated — compatible with 252Wh range extender (+33% capacity)

Suspension

SR Suntour XCR Air fork — 100mm travel, Boost 15mm thru-axle

Brakes

Magura AT2 hydraulic disc

Drivetrain

Shimano Cues 10-speed

Tires

Schwalbe Johnny Watts 60mm — puncture protection & reflective stripe

Frame

Hydroformed 6061 Alloy — internal cable routing (ICR), Boost 148x12

• Integrated automatic front & rear lighting

Rear rack

30kg capacity — MIK HD, MIK Side & Ortlieb QL3.1 compatible

• Front carrier compatible (10kg capacity, sold separately)
• Child seat & trailer compatible
• USB-C charging port integrated into cockpit

Available in

Diamond Top Bar & Low Step frame shapes

Sizes

SM, MD, LG, XL

Colours

Diamond Black, Blue Stone, Mars Red
