Amflow TL Carbon
In stock at 4 shops in Vancouver and London and Edinburgh
Prices and stock checked Oct 22.
Where to buy
4 shopsIn Canada
In the UK
About this bike
Pre-order now — Reserve yours from the first allocation arriving at Cit-E Cycles.
Details

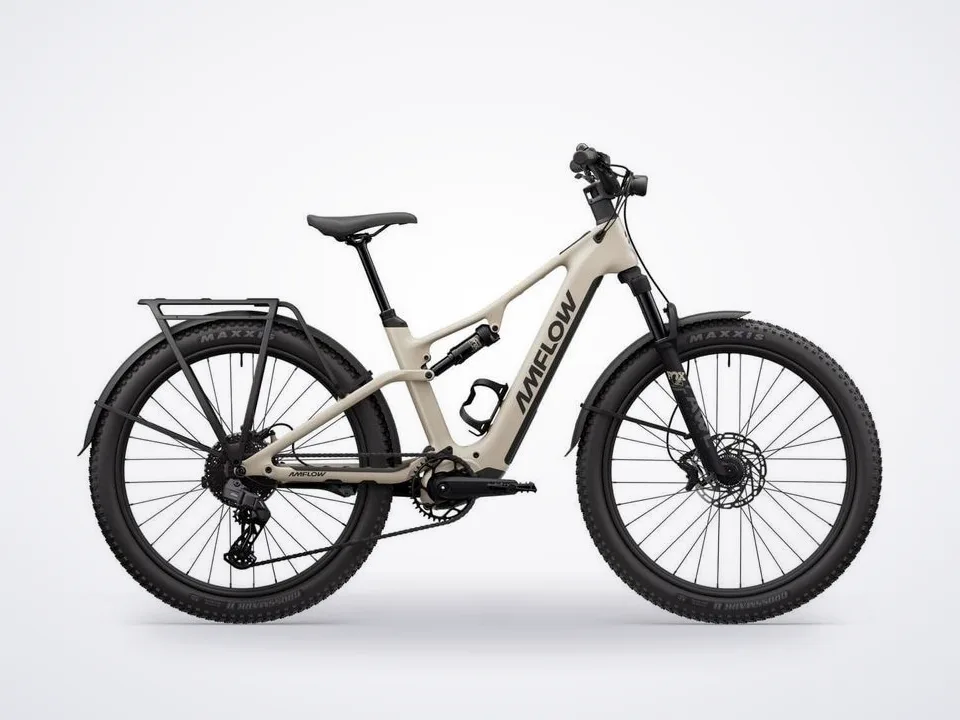

The Amflow TL Carbon is a full-suspension "SUV" e-bike built for trail riding, commuting and loaded touring. A 2.9 kg full-carbon frame carries the DJI Avinox M2 mid-drive (125 Nm peak torque, 1,100 W peak power) and a removable 800 Wh battery rated for up to 172 km — with an optional 480 Wh second battery taking capacity to 1,280 Wh.
Show full description and specs
Specifications
- Motor
- Avinox M2 mid-drive, 250 W rated, 1,100 W peak, 110 Nm nominal / 125 Nm peak
- Battery
- Avinox RS800, 800 Wh, removable
- Range Extender
- Optional Avinox RS480 480 Wh second battery (up to 1,280 Wh total)
- Range
- Up to 172 km (800 Wh, Eco mode)
- Charger
- Avinox 4A, 168 W
- Travel
- 120 mm front / 105 mm rear
- Frame
- Full carbon (2.9 kg), rack, mudguard and trailer mounts
- Fork
- FOX AWL Sport, 120 mm, RAIL 2.0 damper, 15×110 Kabolt axle
- Shock
- FOX Float Rhythm, 190×45 mm
Drivetrain: TRP E.A.S.I. electronic rear derailleur, 10-speed 11–43T, 38T chainring, Avinox SmoothShift
- Brakes
- Tektro TKD173 4-piston hydraulic disc, 180 mm rotors
- Wheels
- Amflow HTA-25 alloy, 27.5" (29" compatible)
- Tires
- Maxxis Crossmark II 27.5×2.35 EXO
- Display
- Avinox DPC100 2" OLED with two wireless remotes
Weight: 25.5 kg (S/M) / 25.9 kg (L/XL) as shipped with rack, mudguards, lights and pedals
- Max Load
- Rider up to 125 kg; ~200 kg total including rack loads
Included: Rear rack, mudguards, front and rear lights, kickstand, dropper post (150 mm S/M, 170 mm L/XL), pedals, bottle cage
- Rider Height
- S 155–162 cm · M 162–175 cm · L 175–182 cm · XL 182–190 cm
