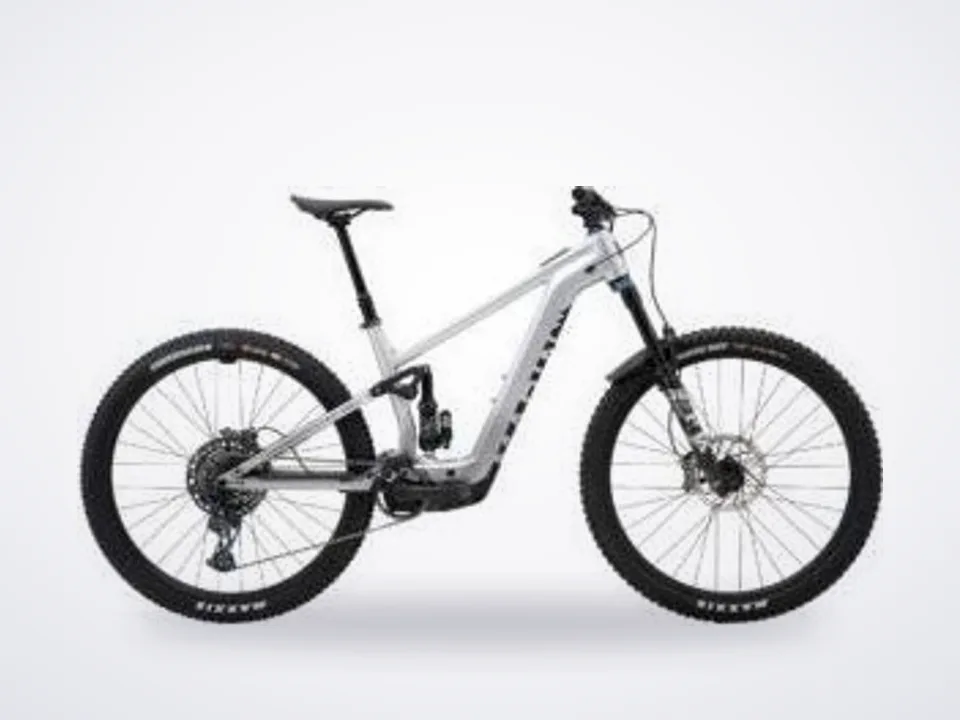

Marin Rift Zone El 2 Bosch

Made possible in part by Bosch’s new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride, with a power delivery so natural you might forget it’s an ebike. All of the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don’t require the full range and power output of more traditional eMTBs.

All three models are well-equipped with performance-focused components from top-tier supplier partners such as Fox, SRAM, Shimano, TRP and more. Throw a leg over one and discover just how agile and fun an eMTB can be.

Step up to EL2 and you're rewarded with Fox Performance suspension front and rear, along with Sram's GX Lunar 12-speed drivetrain and Code Bronze 4-piston brakes.

Specifications

Frame: All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

Fork

Fox 36 Performance, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset

Shock: Fox Float X, Performance, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper Mount, 25xM8 Upper & Lower Mount

Headset

FSA Custom, Adjustable HTA Design

Stem

Marin CNC, 35mm Length, 35mm Bar Bore

Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Grips

Marin Grizzly Lock On

Rims: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

Spokes

14g Black Stainless Steel

Front Hub

Formula DC-711, 110x15, 6-Bolt, 32H

Rear Hub

Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H

Tyres: Front: Maxxis Minion DHF, 29x2.4" Maxxgrip, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX Terra EXO+

Rear Shifter

SRAM GX Eagle Lunar MMX Mount

Rear Derailleur

SRAM GX Eagle Lunar

Crankset

e*thirteen e*spec Plus, 160mm Length, 34T

Cassette

SRAM XG 1275 Eagle Cassette 10-52T

Chain

SRAM NX Eagle

Chainguide

e*thirteen e*Spec Chainguide

Front Brake

SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor

Rear Brake

SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor

Brake Levers

SRAM Code Bronze Stealth

Seatpost: TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm

Saddle

Marin Speed Concept

Pedals

Marin MTB Plastic

Extras

Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Motor

Bosch Performance Line SX, 600W, 55Nm torque

Battery

Bosch 400 Wh Internal (Optional…
