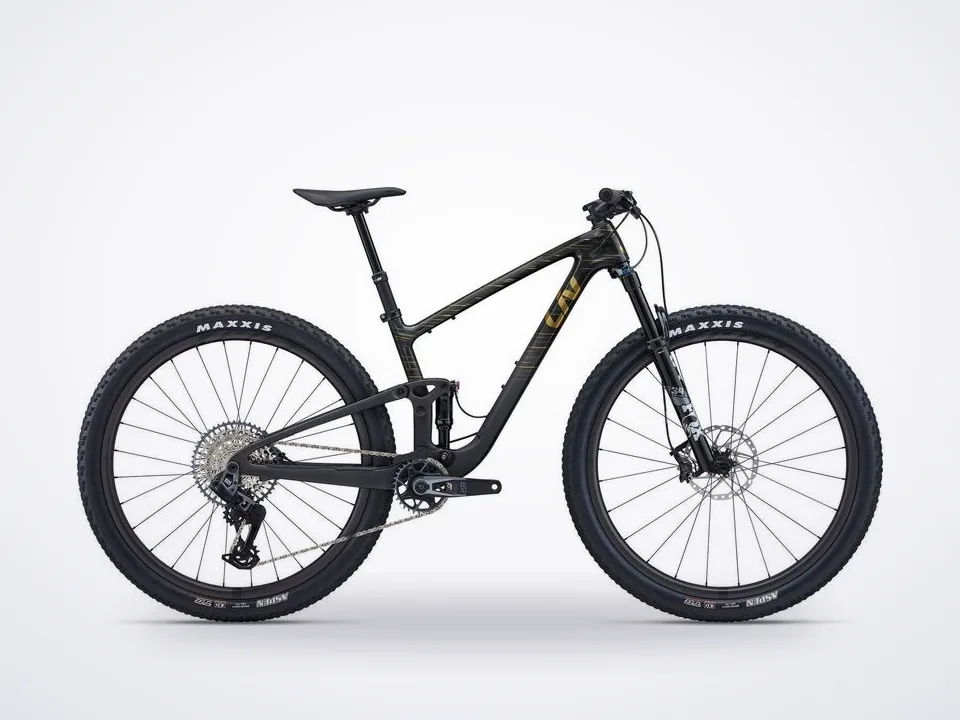

Liv Pique Advanced 29 1

Efficiency IS Speed

Now 297g lighter*, the Advanced-grade composite frameset also features greater stiffness for efficient power transfer, a massive advantage on climbs and at speed. New FlexPoint Pro suspension minimizes weight by minimizing parts. And a shorter chainstay offers greater agility for maneuvering switchbacks, and snappy acceleration for seizing every overtake opportunity. *Compared to previous generation

Control IS Power

With its patented, linkage-driven, single-pivot design, the new FlexPoint Pro suspension delivers 115mm of smooth, active rear-wheel travel, so you can maximize power and traction over ever-changing and uber-challenging terrain. Combined with a slacker head tube angle and 120mm of front suspension, this setup ensures you're equipped to dominate technical descents.

Stability IS Mastery

Roll over just about anything on 29-inch wheels designed for stability and efficiency. Updated geometry provides a longer reach, putting you in a lower and more aggressive body position. A steeper seat tube angle increases pedaling efficiency on even the steepest climbs. And the modified cockpit includes a 35mm composite handlebar and alloy stem for steering precision.

Specifications

• Sizes

Xs, S, M, L

• Colours

Gloss Raw Carbon/Matte Raw Carbon/Chrome

• Frame

Advanced-grade composite front and rear triangles, 115mm FlexPoint Pro Suspension

• Fork

Fox 34 Float SC Performance Elite, 120mm, FIT4 damper, Boost 15x110 KaBolt, tapered, 44mm offset, 3 position remote lockout

• Shock

Fox Float SL Performance Elite, 165x45, custom tuned for Liv

• Handlebar

Giant Contact SLR XC, composite, 35mm XS: 760mm, S: 760mm, M: 760mm, L: 760mm

• Grips

Liv XC Pro, 32mm silicone

• Stem

Giant Contact SL XC, alloy, 35mm XS: 60mm, S: 60mm, M: 70mm, L: 70mm

• Seatpost

Giant Contact Switch, adjustable dropper, remote XS: 110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 140-170mm travel / 30.9 x 470mm

• Saddle

Fi'zi

k Vento Argo R5

• Pedals

N/A

• Shifters

SRAM AXS, 1x12

• Front Derailleur

N/A

• Rear Derailleur

SRAM GX Eagle, T-Type AXS

• Brakes

Shimano XT, hydraulic, Shimano RT-64 centerlock rotors [F]180mm, [R]160mm

• Brake Levers

Shimano XT BL-M8100

• Cassette

SRAM GX CS 1275 T-Type, 10x52

• Chain

SRAM GX T-Type

• Crankset

SRAM XO T-Type, power meter, alloy chainring 32t, 55mm chainline XS:165mm, S:170mm, M:170mm, L:175mm

• Bottom Bracket

SRAM DUB, press fit

• Rims

Giant XCR 1 30 carbon WheelSystem, 30mm inner width

• Hubs

[F] Giant XC alloy, CenterLock, [R] Giant XC alloy, DT350 internal, 54t ratchet system, CenterLock

• Spokes

Sapim…
