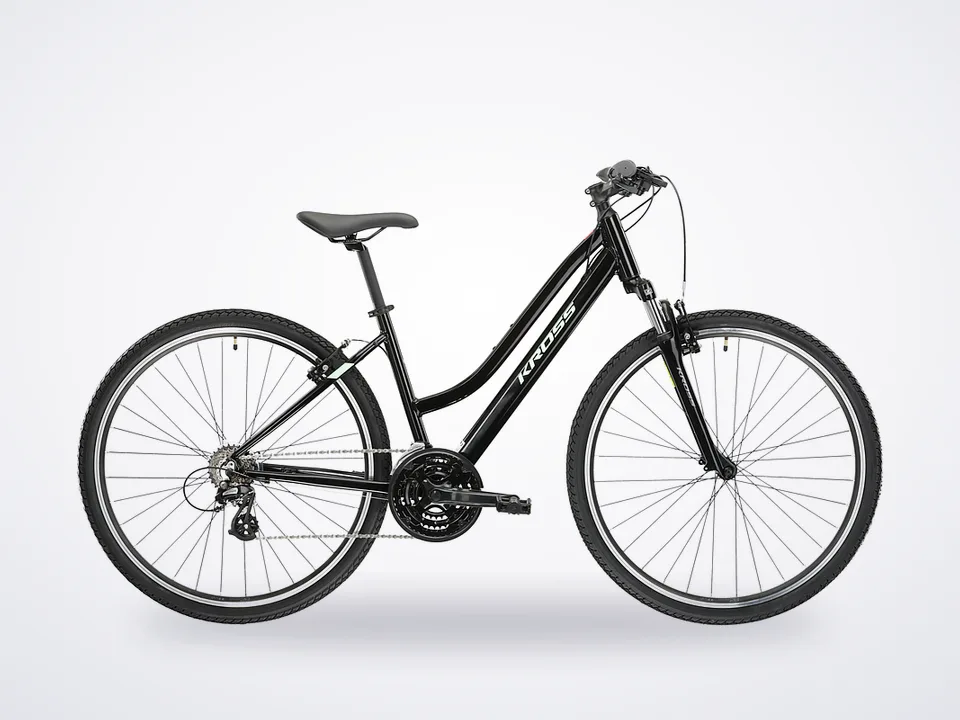

Kross Evado 2.0 Ladies

The drivetrain mixes a Shimano Tourney TY510 front derailleur with a Shimano Altus M310 rear derailleur, controlled by Shimano Tourney ST-EF41 combined shifter/brake levers. A Wheel Top TCRF2-CFPF crankset with 48-38-28T rings on 170 mm arms drives a Shimano Tourney MF-TZ500 14-28T freewheel through a KMC HV500 chain; the bottom bracket is an FP-B902.

Braking is by V-brakes front and rear from the same EF41 levers. The wheels are built on Guli GL-B01F/GL-B01R hubs with Kross aluminium 622 × 19 rims, standard steel spokes and brass nipples, shod with Wanda G5001 28 × 1.75 tyres.

Contact points are a 640 mm aluminium handlebar (31.8 mm clamp) on a 75 mm, 7° aluminium stem with Hermans Oxy DD29BL grips, a Selle Royal Shadow saddle on a 27.2 × 300 mm aluminium seatpost with a standard Kross clamp, an FP-H863 1-1/8" headset and FP-804 pedals.

Specification

Item

Detail

Frame

6061 aluminium, women's, 15"

Fork

HL Corp 120E, 30 mm travel

Gears

21-speed

Front derailleur

Shimano Tourney TY510

Rear derailleur

Shimano Altus M310

Shifters / brake levers

Shimano Tourney ST-EF41

Crankset

Wheel Top TCRF2-CFPF, 48-38-28T, 170 mm

Bottom bracket

FP-B902

Freewheel

Shimano Tourney MF-TZ500, 14-28T

Chain

KMC HV500

Brakes

V-brake front and rear

Tyres

Wanda G5001, 28 × 1.75

Hubs

Guli GL-B01F (front) / GL-B01R (rear)

Rims

Kross aluminium, 622 × 19

Spokes / nipples

Standard steel / standard brass

Handlebar

Aluminium, 640 mm / 31.8 mm

Stem

Aluminium, 75 mm / 31.8 mm / 7°

Grips

Hermans Oxy DD29BL

Headset

FP-H863, 1-1/8"

Saddle

Selle Royal Shadow

Seatpost

Aluminium, 27.2 × 300 mm, standard Kross clamp

Pedals

FP-804
