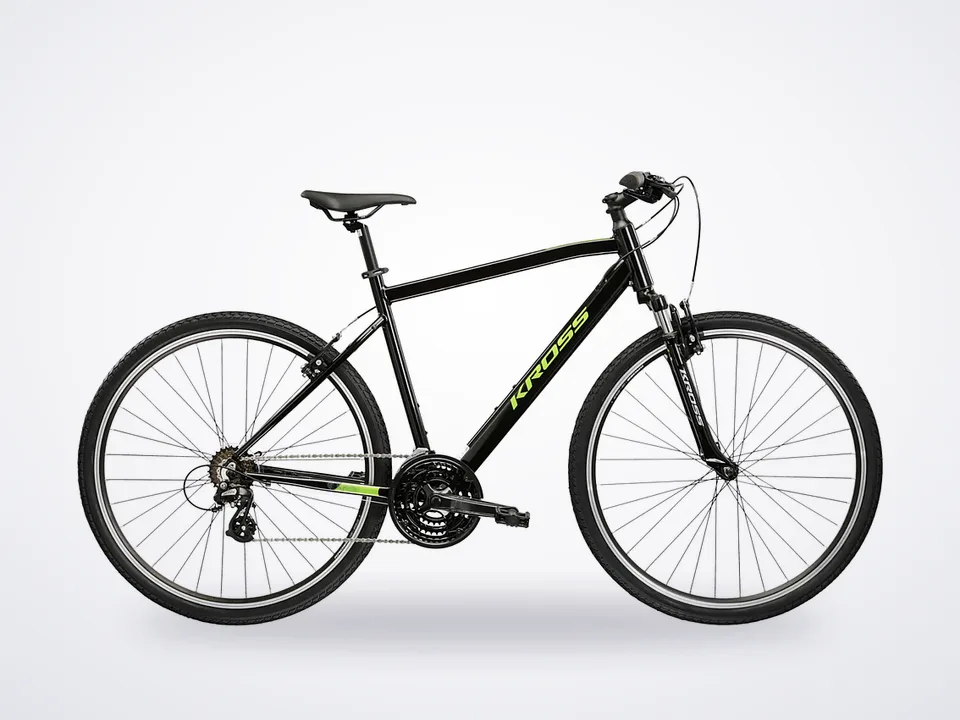

Kross Evado 2.0

Up front, an HL Corp 120E suspension fork with 30 mm of travel takes the edge off broken tarmac and light paths. The drivetrain pairs a Shimano Tourney TY510 front derailleur with a Shimano Altus M310 rear, both worked from Shimano Tourney ST-EF41 combined shifter and brake levers. A Wheel Top TCRF2-CFPF crankset carries 48-38-28 T chainrings on 170 mm cranks, driving a Shimano Tourney MF-TZ500 14-28 T freewheel through a KMC HV500 chain on an FP-B902 bottom bracket.

Braking is by V-brakes front and rear from the same ST-EF41 levers. The wheels are built on Kross aluminium 622 × 19 rims with Guli GL-B01F and GL-B01R hubs, standard steel spokes and brass nipples, shod with Wanda G5001 28 × 1.75 tyres.

Contact points are an aluminium 640 mm handlebar on a 90 mm stem (31.8 mm clamp, 7°), an FP-H863 1-1/8" headset, a Selle Royal Shadow saddle on a 27.2 × 350 mm aluminium seatpost with a standard Kross clamp, Hermans Oxy DD29BL grips and FP-804 pedals.

Specification

Component

Detail

Frame

Aluminium 6061, 19"

Fork

HL Corp 120E, 30 mm travel

Gears

21-speed

Front derailleur

Shimano Tourney TY510

Rear derailleur

Shimano Altus M310

Shifters / brake levers

Shimano Tourney ST-EF41

Crankset

Wheel Top TCRF2-CFPF, 48-38-28 T, 170 mm

Bottom bracket

FP-B902

Freewheel

Shimano Tourney MF-TZ500, 14-28 T

Chain

KMC HV500

Brakes

V-brake, front and rear

Rims

Kross aluminium, 622 × 19

Hubs

Guli GL-B01F (front) / GL-B01R (rear)

Spokes / nipples

Standard steel / standard brass

Tyres

Wanda G5001, 28 × 1.75

Handlebar

Aluminium, 640 mm, 31.8 mm

Stem

Aluminium, 90 mm, 31.8 mm clamp, 7°

Headset

FP-H863, 1-1/8"

Grips

Hermans Oxy DD29BL

Saddle

Selle Royal Shadow

Seatpost

Aluminium, 27.2 × 350 mm, standard Kross clamp

Pedals

FP-804

Gender

Men's
