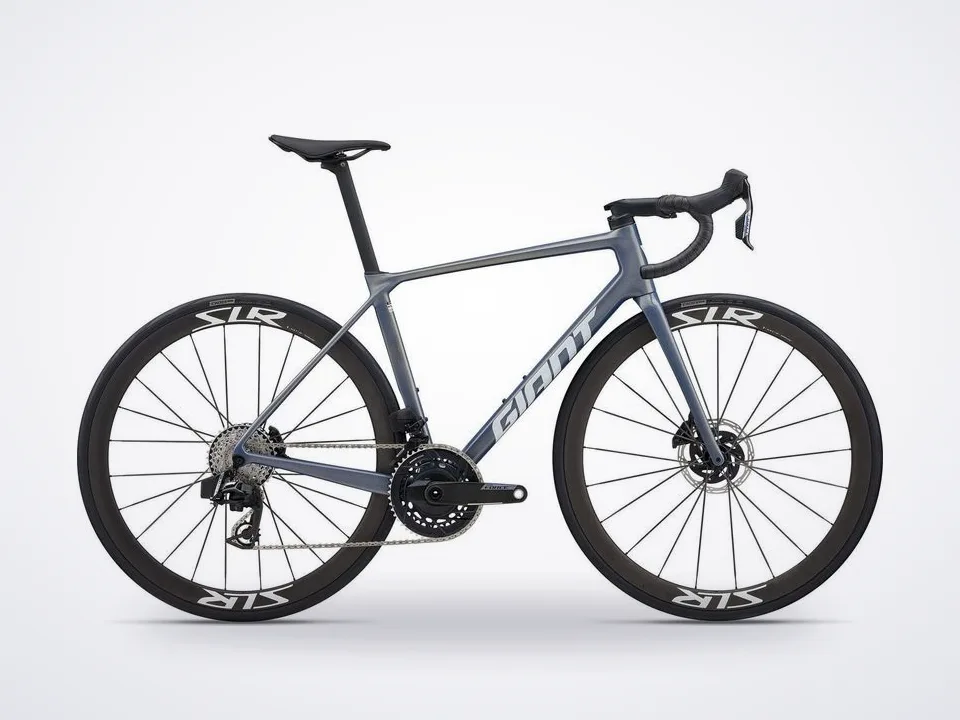

Giant TCR Advanced Pro 0 AXS Race

System Optimization

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

Winning Efficiency

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

Integrated Aerodynamics

All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Technical Specificaitons

• Sizes

Xs, S, M, M/L, L, Xl

• Colours

Midnight Moon, Carbon

• Frame

Advanced-grade Composite, 12x142mm thru-axle, disc

• Fork

Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

• Shock

N/A

• Handlebar

Giant Contact SLR XS

420/370mm, S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm, XL:440/390mm

• Grips

Stratus Lite 2.0

• Stem

Giant Contact SL AeroLight XS

80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm

• Seatpost

Giant Variant, composite, -5/+15mm offset

• Saddle

Giant Fleet SL

• Shifters

SRAM Force AXS E1

• Front Derailleur

SRAM Force AXS E1

• Rear Derailleur

SRAM Force AXS E1

• Brakes

SRAM Force E1 hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm

• Brake Levers

SRAM Force AXS

• Cassette

SRAM Force E1, 12-speed, 10x36

• Chain

SRAM Force E1

• Crankset

SRAM Force AXS E1, 35/48 with SRAM power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm

• Bottom Bracket

SRAM DUB, press fit

• Rims

Giant SLR 0 40 WheelSystem, [F]40mm, [R]40mm

• Hubs

[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle

• Spokes

Giant Aero Carbon Spoke

• Tires

Cadex Road Race GC, tubeless, 700x30mm, folding

• Extras

Computer mount , 33mm max tire size

• Max Tire Clearance

33mm

• Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes…
