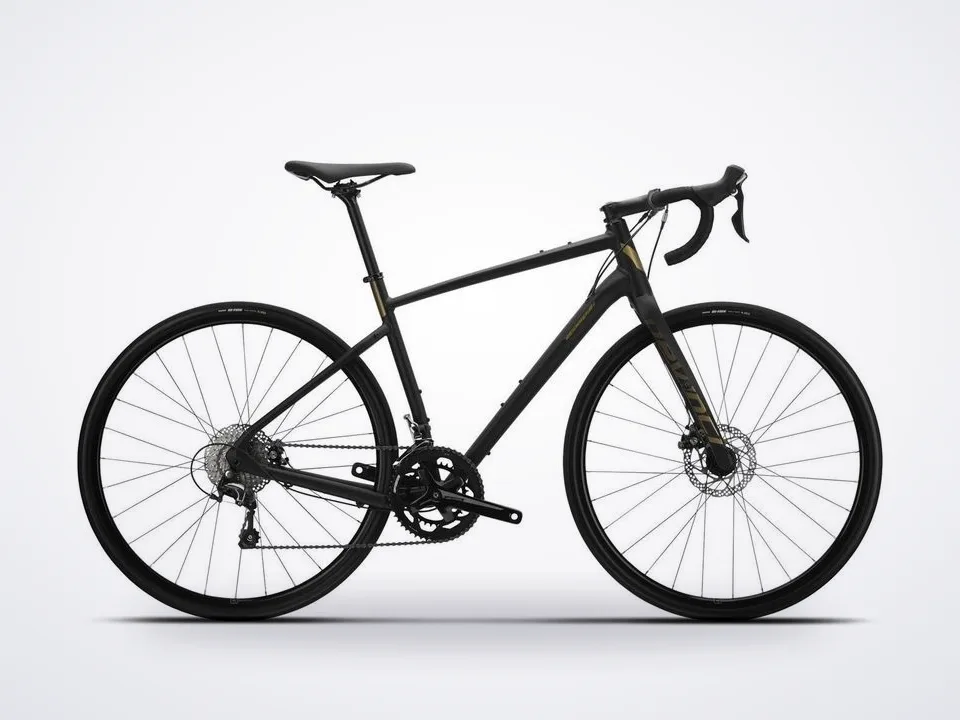

Devinci Hatchet Tiagra 20S

Wherever you roll, Hatchet is willing, able — and highly capable. This versatile, fun-igniting platform merges off-road DNA with a moonshot mindset that shreds Strava gravel, brings the party to Grinduro and even plays nice on pure pavement. Hatchet has 700c x 45mm / 650b x 2.1’’ tire clearance, and its MTB-inspired geometry includes a longer top-tube and shorter stem for enhanced handling on loose, technical terrain. When it’s time to slow your roll, 160mm flat-mount brakes stop on a dime. Additional details include three bottle mounts (two in the frames, one under the down tube), a top-tube mount for added storage on longer rides/races, discrete rack/fender mounts and a capped-thru axle fork for an ultra-clean look and a lifetime warranty that won’t let you down.

Designed in Canada

Frame: • FRAMEAluminum Optimum R03, • FORKDevinci Full Carbon, • Headsetfsa Orbit C40 Integrated, • SEAT CLAMPAlloy 31.8mm

Cockpit

HANDLEBARV2 Pro 31.8mm R

70mm | D:120mm

• STEMV2 Pro 31.8 | 6°
• SADDLEDevinci
• SEATPOSTDevinci 27.2mm
• Handlebar TAPESuper Soft

Brakes: • REAR Brake CALIPERShimano RS305 Mechanical, • Front Brake CALIPERShimano RS305 Mechanical, • Front Shifter / BRAKEShimano Tiagra ST-4700, • REAR Shifter / BRAKEShimano Tiagra ST-4700

• ROTORSShimano SM-RT56 160mm

Drivetrain: • REAR DERAILLEURShimano Tiagra 4700, • Front DERAILLEURShimano Tiagra 4700, • Cranksetfsa Vero Pro 50/34T, • CASSETTEShimano HG500 10s 11-34T

• Chainkmc HG54

Wheels: • Front RIMV2 Comp db | 21mm inner, • Front HUBFormula Disc sealed bearing | QR 9x100, • REAR RIMV2 Comp db | 21mm inner, • REAR HUBFormula Disc sealed bearings | QR 10x135

• SPOKESStainless 14G
• TIRESMaxxis Refuse 60tpi foldable 700x32c

Weight

10.96 kg / 24.16 lb

• For a size medium complete bike, weight approximate and subject to change.
