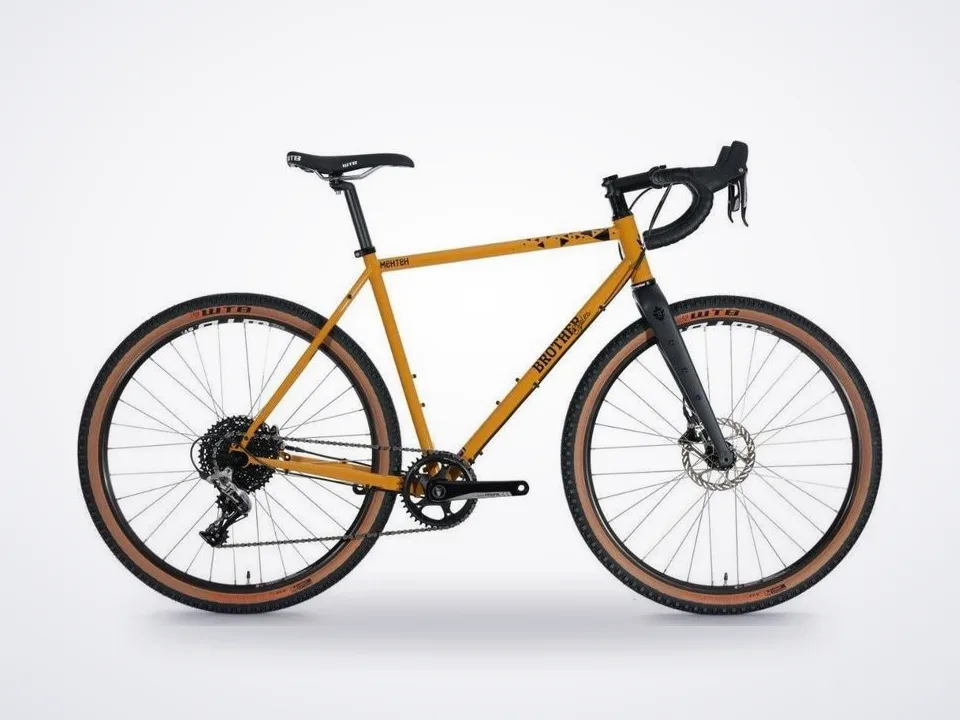

Brother Cycles Mehteh

Wheels: Rims: WTB ST i23 TCS, Tires: WTB Venture 27.5x2.0" TCS, Front Hub: Formula RX812 Disc, 32h. 12x100mm, Rear Hub: Formula RX300 Disc, 32h. 12x142mm

Weight

10.3kg (Medium)

Please note: Your bike will arrive 90% assembled. You will need to attach the pedals, front brake, front wheel, handlebars, seat and a few other minor parts as well as adjust, tighten and tune. It is possible to build with moderate bicycle knowledge, however we highly recommend that you have your bike put together and checked by a professional bike mechanic for safety and proper functioning.

Features

Frame tubing

Reynolds 725 heat treated chromoly double-butted main triangle, ED coated

Brake compatibility

flat mount, 160mm max rotor size

Rear Dropouts

12x142mm TA

Seat post diameter

27.2mm

Seat clamp diameter

30mm

Headset

44mm, ZS44/28.6 upper, EC44/40 lower

Front derailleur clamp diameter

28.6mm

Bottom bracket shell

68mm bottom bracket, ISO threaded

Maximum tyre clearance

700c x 45mm, 650b x 2.1"

Fork: 1.5″ – 1.1/8″ tapered steerer full carbon disc fork, mudguard mounts, triple cage mounts, 12x100mm TA

Full-length cable housing guides for derailleurs and brakes

Stealth dropper post routing

3 sets bottle cage mounts on all sizes

Rear rack and mudguard mounts

Chainring clearance

up to up to 52-39-30t triple, 50-34t double, 48t single

Frame weight (medium)

2.2kg

Fork weight (uncut steerer)

0.55kg
