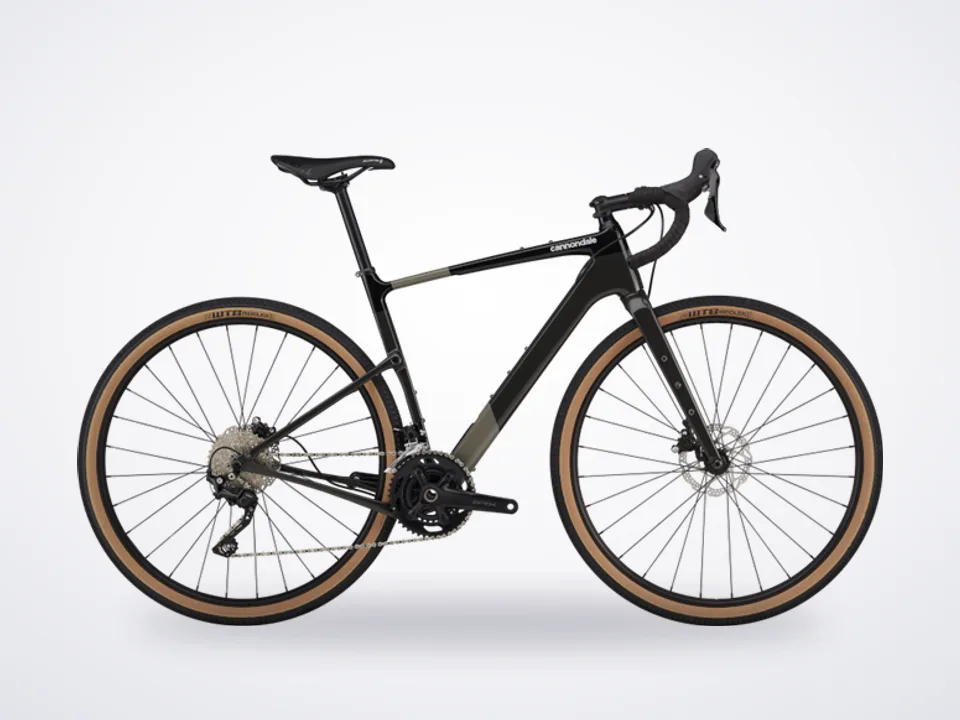

Cannondale Topstone Carbon 4
In stock at 2 shops in Dallas
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The best gravel bike for everything from rough roads to trails. With the grip and comfort of the Kingpin suspension, there are no limits.
Key Features
- Carbon Synapse frame and fork /Cannondale App connectivity /SmartSense compatibility
- Shimano GRX 400 10-speed group
- WTB ST i23 rims, lightweight 700x45c WTB Riddler TCS tires
Show full description and specs
Kingpin Suspension
Kingpin is our answer for the most demanding gravel riders who seek maximum absorption without the weight or complexity of traditional shock and pivot suspension systems. Kingpin offers everything you need: more comfort for longer rides, more traction to push your limits, lightweight, and advanced technology. Kingpin fulfills your needs: maintenance-free and light.
Load It Up. Ride Out.
With plenty of accessory and bottle mount points on the frame and fork, the Topstone Carbon is ready to be loaded and go the distance.
- Frameset
- • Frame
Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
- Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
- Headset
Integrated, 1-1/8" - 1.5"
Drivetrain: • Rear Derailleur, Shimano GRX 400, Shadow RD+, • Front Derailleur, Shimano GRX 400, braze-on
- Shifters
Shimano GRX 400, 10-speed
- Chain
KMC X10, 10-speed
- Crank
Shimano GRX 600, 46/30
- Rear Cogs
SunRace, 11-36, 10-speed
- Bottom Bracket
Shimano BSA 68
Wheels: • Rims, WTB ST i23 TCS, 700c, 28h, tubeless ready, • Spokes, Stainless Steel, 14g
- Tire Size
45
- Wheel Size
700c
- Hubs
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
- Tires
- WTB Riddler Comp, 700x45c (Europe/UK
- Vittoria Terreno Dry 700x40c)
- Front Tire
- WTB Riddler Comp, 700x45c (Europe/UK
- Vittoria Terreno Dry 700x40c)
- Rear Tire
- WTB Riddler Comp, 700x45c (Europe/UK
- Vittoria Terreno Dry 700x40c)
Components
- Handlebar
Cannondale 3, butted 6061 Alloy, 16 deg flare drop
- Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
- Grips
Cannondale Bar Tape, 3.5mm
- Saddle
Fizik Aliante Delta, S-alloy rails
- Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Brakes: • Brakes, Shimano GRX 400 hydraulic disc, 160/160mm RT54 rotors, • Brake Levers, Shimano GRX 400 hydraulic disc
