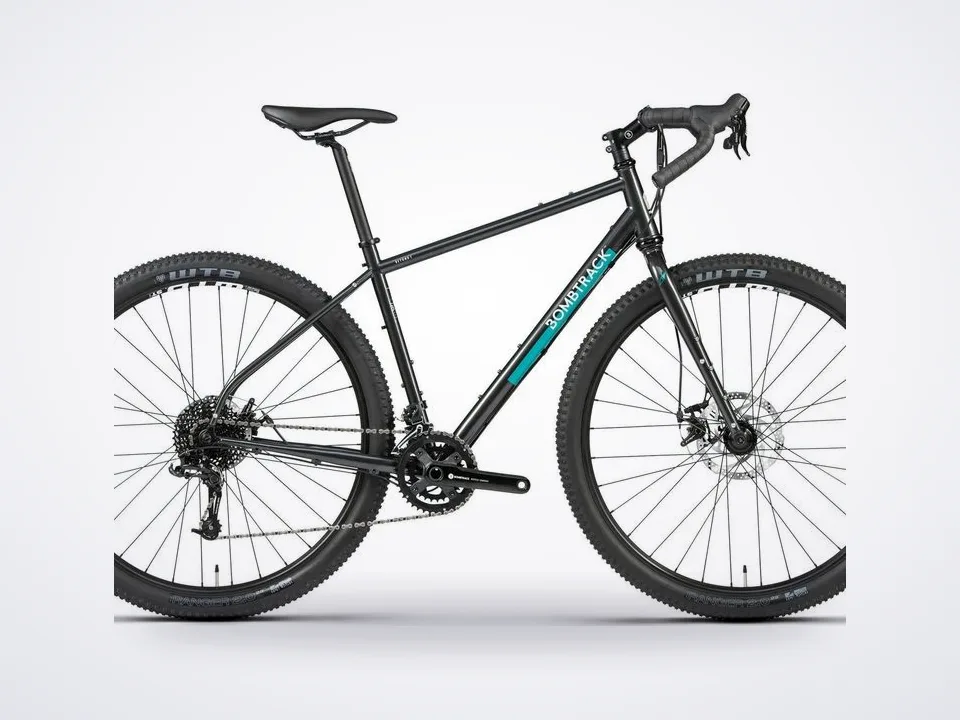

Bombtrack Beyond 1
In stock at 2 shops in Toronto and Edinburgh
Prices and stock checked Oct 22.
Where to buy
2 shopsIn Canada
In the UK
About this bike
The Beyond 1 serves as the perfect first bike for fledgling adventurists. With tyres as wide as a mountain bike accompanied by a 28 / 40T chainset, this bike will be able to reach wherever you’ve plotted on the map. Leverage-boosting bars provide added control, and an eye-watering selection of mounting points mean you won’t need to leave anything at home. Its simplicity makes it easy to service, too.
Frame: 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Show full description and specs
Fork: 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing
- Handlebar
- Bombtrack Beyond travel bar, 31.8 mm, 30° flare
- Grips
- Bombtrack Command bar tape
- Stem
- Bombtrack Wander forged aluminium stem, +17°
- Headset
- Sealed external aheadset, 1.1/2'' - 1.1/8''
- Levers
- SRAM Apex double tap mechanic
- Shifter
- SRAM Apex double tap 2 x 10
- Brakes
- TRP Spyre C mechanic disc brakes with 180 mm F / 160 mm R rotors
- Crankset
- Bombtrack AMES forged aluminium crank, 24 mm spindle
- BB
- BSA sealed BB, external cups
- Pedals
- -
- Chain
- KMC X10 chain, 1/2'' x 11/128'', 114L
- Chainring
- Aluminium / Steel, 40 / 28 T
- Cassette
- SRAM PG-1020 10-speed, 11 - 36 T
- Front derailleur
- Microshift FD-M612-B
- Rear derailleur
- SRAM GX, long cage
- Front hub
- Bombtrack GRAD sealed hub, 6-bolt disc
- Rear hub
- Bombtrack ARC sealed hub, 11-speed, 6-bolt disc
- Through axle
- 15 x 100 mm / 12 x 142 mm
- Front rim
- WTB ST i23 double wall, TCS 2.0, 32h
- Rear rim
- WTB ST i23 double wall, TCS 2.0, 32h
- Saddle
- Bombtrack Origin saddle
- Seat post
- Bombtrack Beech 27.2 mm x 400 mm
- Seat clamp
- Bombtrack Origin 29.8 mm
Front tire: WTB Ranger TCS Light / FAST Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready
Rear tire: WTB Ranger TCS Light / FAST Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready
- Fender
- -
- Rack
- -
- Light
- -
- Weight
- 12.9 kg (size M)
Weight frameset: 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA)
- Maximum rider weight
- 140 kg incl. luggage
- ASTM riding condition
- 2
