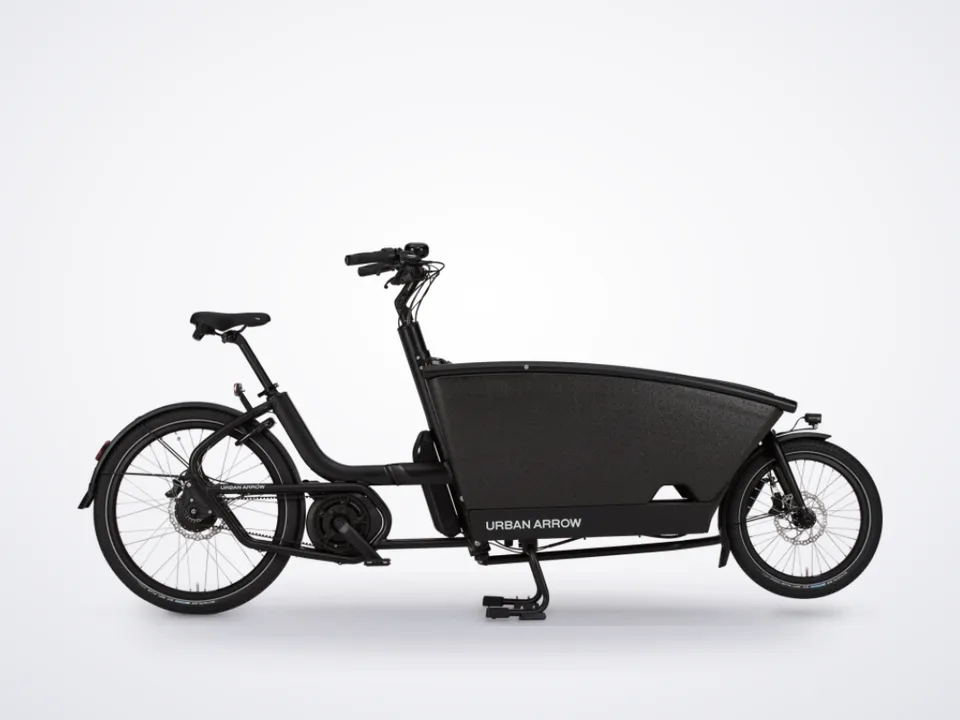

Urban Arrow Family

fromC$8,500C$10,000-15%

In stock at 1 shop in Toronto

Buy at Curbside Cycle

Prices and stock checked Oct 22.

Where to buy

1 shop
Curbside Cycle412 Bloor St W, Toronto, ON M5S 1X5 · Toronto · Directions
Ask the shop for sizes
from C$8,500C$10,000
View
1 more listing at Curbside Cycle
  • “Family - Performance Line - Smart System”C$8,500View
  • “Family - Cargo Line - Smart System”C$9,500View

About this bike

A Standard

The award-winning Urban Arrow Family represents a revolution in materials and technology when compared to other classic Dutch 'bakfiets'(front bucket bikes). The frame is made of rust-proof, lightweight aluminum that is large in diameter to increase stiffness across the long wheelbase. Every Urban Arrow is designed and manufactured to last many years and cover thousands of kilometers each year. With over 100 000 Urban Arrow cargo bikes in use around the world their commitment to producing high quality and durable bikes is evident.

Show full description and specs

Safe

The Urban Arrow cleverly uses lightweight EPS foam(the same impact resistant material found in bicycle helmets) for the cargo box resulting in a distinctive, lightweight and super safe cargo area. Inside the box you find sturdy seats and 3 point harnesses. The bikes' low centre of gravity and comfortable upright riding position result in a stable but maneuverable bike that offers the rider a great view of the street.

Spacious

Have you got a big family or do you like to carry large loads of cargo? Good news! The Urban Arrow Family offers the biggest box. Add a car seat mount and carry a kid in a car seat and 2 kids on the bench. Install the optional extra bench and carry 3 kids in the box. With the optional rear rack you can carry panniers or even add a child seat to carry 4 kids on your Urban Arrow.

Performance Line

The Urban Arrow Family Performance Line model is for those who carry cargo and have a varied commute on flat roads and hills. It has 75nm of torque from the Bosch motor -- plenty capable to get you and your cargo to and from. It comes equipped with powerful hydraulic Tektro Cargo 4 piston brakes for ultimate stopping power under all conditions. The Performance line model uses a chain driven system that is fully enclosed with a Hebie Chainglider, so there is no chance of your clothes getting caught or dirty from the road muck.

  • Want to learn more?Book a consultation with one of our Cargo Bike experts
  • Bosch Performance Line Mid-Drive Motor with 75nm of torque will get you up any hill
  • Bosch 545Wh 36v Lithium-Ion Battery will take you up to 80km on a single charge
  • Enviolo Heavy Duty stepless internal gear hub has a massive 330% gear range
  • Room for two little ones with dual three-point harnesses (four if you insert the optional extra bench and mount a baby seat on a rear rack)
  • Lightweight and highly impact-resistant EPS foam cargo box
  • Optional Rain Tent for four season comfort
Maximum Capacity
250kg (Box=125kg, Rider=125kg)
Frame
Aluminum Alloy -Powder-coated
Box
Expanded Polypropylene (EPP) foam
Drive Unit
Bosch Performance Line with 75nm torque
Battery
Bosch 545Wh
Computer
Bosch Intuvia 100
Computer Modes
Eco, Tour, Sport, Turbo
Max Assisted Speed
32km/h
Range
50-80km
Charge Time
0-80% - 2 Hours, 0-100% - 4 Hours
Stem
110mm 31.8mm adjustable
Handlebar
Ergotec Moon Cruiser 31.8mm
Grips
Ergon GC10
Seatpost
UA Custom
Seat
Selle Royal Rio Plus
Brakes
Tektro Hydraulic…
Description from Curbside Cycle.
