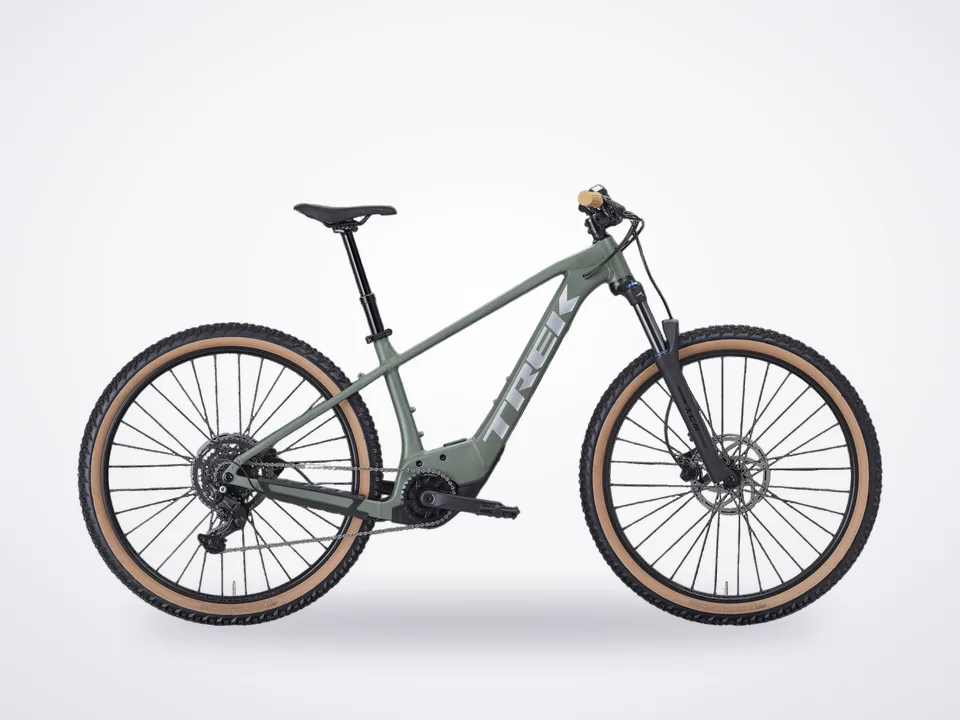

Trek Marlin+ 6 Hardtail
In stock at 1 shop in Edmonton
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Trek Marlin+ 6 Hardtail Electric Bike 2026
Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.
Specifications
- Please note
- spec applies to all sizes unless listed separately
- Frameset
- *Frame, Size: XS
Show full description and specs
Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
- Size
- S , M , L , XL
Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
- Fork
- Size
- XS
SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel
- Size
- S , M , L , XL
SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
Wheels: Hub front, Shimano TC500 alloy, centerlock, 110x15mm thru axle, Hub rear, Shimano TC500 alloy, centerlock, 148x12mm thru axle
Bontrager Switch thru axle, removable lever
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve, *Tire, Size: XS , S, Bontrager Montrose comp, Tubeless Ready, wire bead, 30 tpi, 27.5x2.40"
- Size
- XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
- Size
- M , L , XL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''
- Size
- M , L , XL
Bontrager Montrose comp, Tubeless Ready, wire bead, 30 tpi, 29x2.40"
Max tire size
- Frame
- 29x2.60" (XS: 27.6x2.60"), Fork: See manufacturer
E-system
- Battery
- Bosch CompactTube 400Wh
Charger: Bosch standard 2A, 110V, smart system, Computer, Bosch Purion 200, E-bike Classification
Drivetrain
- Shifter
- Shimano U4000, 9 speed
- Rear derailleur
- Shimano CUES U4000
- Crank
- FSA CK-220, 165mm length, Chain ring, FSA, 32T, steel
- Cassette
- Shimano Linkglide LG300, 11-46, 9 speed
- Chain
- Shimano LG500
- Pedal
- VP-536 nylon platform, Max chainring size, 1x: 36T, min 32T, Components
Saddle: Bontrager Verse P3, steel rails, *Seatpost, Size: XS , S, TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
- Size
- M , L
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
- Size
- XL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
- Handlebar
- Size
- XS , S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
- Size
- M , L , XL
Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Grips: Trek Line Comp, nylon lock-on, *Stem, Size: XS , S, Bontrager Comp, 31.8mm, 7 degree, 35mm length
- Size
- M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
- Size
- XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom, Brake rotor, Tektro, centerlock, 203mm, Brake Set
Tektro HD-M275 hydraulic disc
Rotor…
