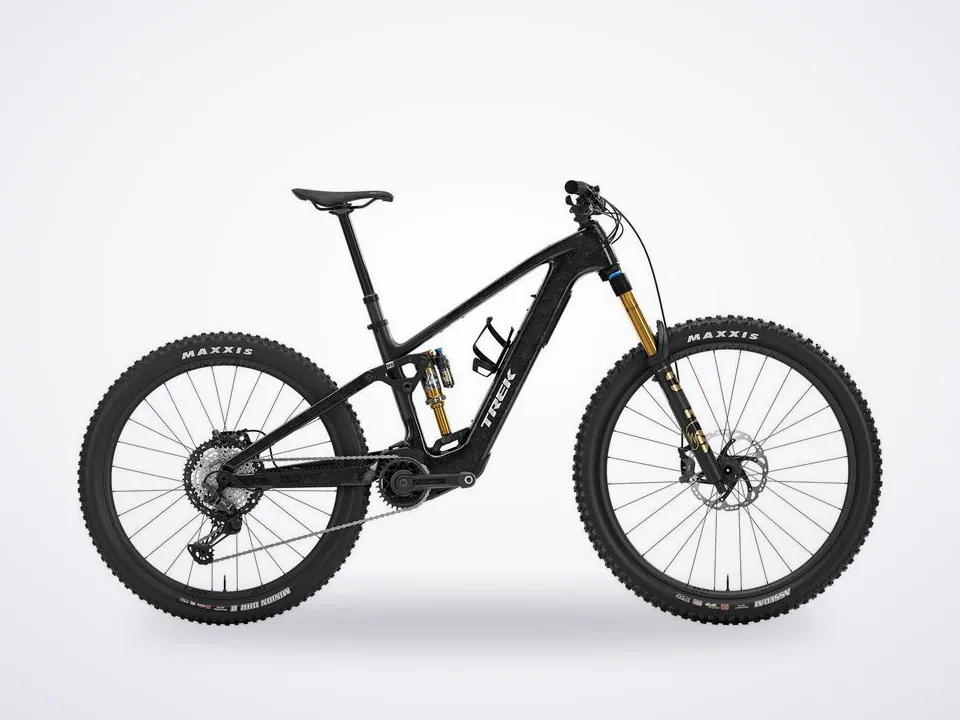

Trek Fuel+ MX 9.8 XT
In stock at 1 shop in Edmonton
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Trek Fuel+ MX 9.8 XT (Gen 2) Full Suspension Electric Bike 2026
Fuel+ MX 9.8 XT is a chaos-craving carbon e-MTB for chasing side hits, lap after lap. It starts off with an OCLV Mountain Carbon frame with TQ's HPR60 motor, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting wild on the trail. A mechanical Shimano XT 12-speed drivetrain gives you clean, reliable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.
Show full description and specs
Techincal Specifications
- Please note
- spec applies to all sizes unless listed separately
- Frameset
- Specifications, *Mainframe Size: S, XL, L, M, XXL
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork Size
- S, XL, L, M, Xxl
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
- Shock Size
- S, XL, L, M, Xxl
Fox Factory Float X, 205mm x 60mm
Wheels: Specifications, *Front Wheel Size: S, XL, L, M, XXL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29", *Rear Wheel Size: S, XL, L, M, XXL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5"
- Rear Skewer Size
- S, XL, L, M, Xxl
Bontrager Switch thru axle, removable lever
- Tire Size
- S, XL, L, M, Xxl
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, Maxxgrip, folding bead, 29x2.5''
- Size
- S, XL, L, M, Xxl
Maxxis Minion DHR II, tubeless ready, 3C, Double Down, Maxxgrip, 27.5x2.5"
- Tire Part Size
- S, XL, L, M, Xxl
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size Frame
- 29x2.50", Fork: See manufacturer
Specifications
- Battery Size
- S, XL, L, M, Xxl
TQ 580Wh
- Charger Size
- S, XL, L, M, Xxl
TQ 4A charger
- Controller Size
- S, XL, L, M, Xxl
TQ color LED display with Bluetooth & ANT+ connectivity
- Motor Size
- S, XL, L, M, Xxl
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Drivetrain: Specifications, *Shifter Size: S, XL, L, M, XXL, Shimano XT M8100, 12 speed, *Rear Derailleur Size: S, XL, L, M, XXL
Shimano XT M8100, long cage
- Crank Arm Size
- S, XL, L, M, Xxl
E*thirteen E*spec Plus, 160mm length
- Chain Ring Size
- S, XL, L, M, Xxl
E*Thirteen Helix Core Steel 32t steel, 55mm chainline
- Cassette Size
- S, XL, L, M, Xxl
Shimano XT M8200, 10-51, 12 speed
- Chain Size
- S, XL, L, M, Xxl
Shimano Ultegra/XT M8100, 12 speed
- Max chainring size 1x
- 34T, min 30T
Specifications
- Saddle Size
- S, XL, L, M, Xxl
Verse Short Comp, steel rails, 145mm width
- Seatpost Size
- S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
- Size
- M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
- Size
- XL, L, Xxl
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing,…
