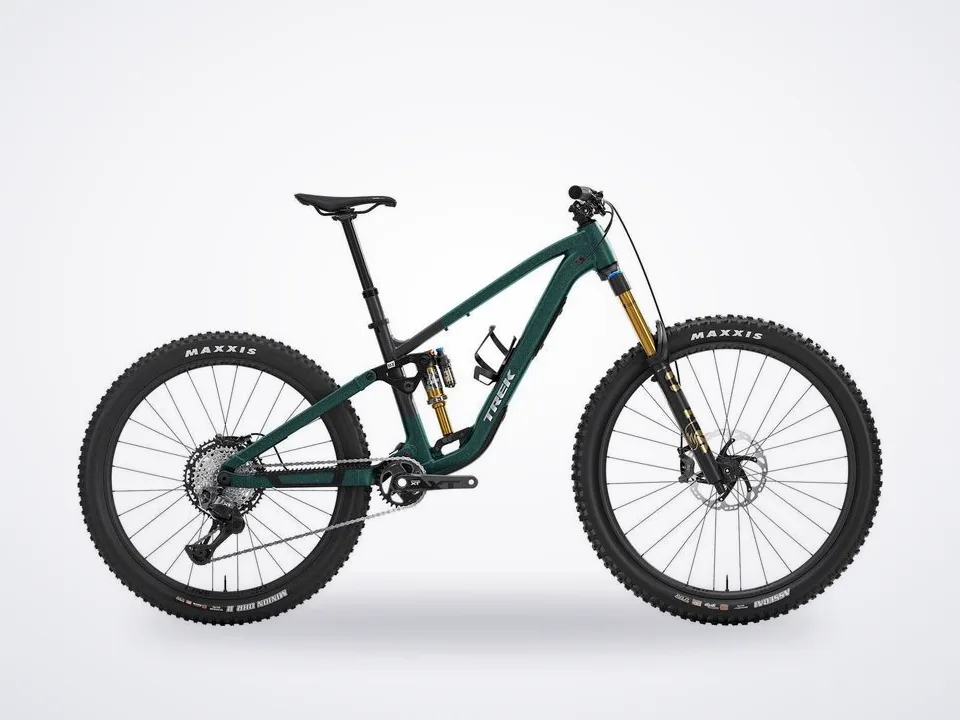

Trek Fuel MX 9 XT Di2 (Gen 7) Full Suspension Bike 2026
Fuel MX 9 XT Di2 is a playful trail bike made for hunting down side hits and chasing chaos. Its Alpha NEXT Platinum aluminum frame it paired with a Fox Factory suspension package (150mm rear, 160mm front) and MX wheels for a ride that's flickable and zippy. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customizable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.
Show full description and specs
Specifications
- Please note
- spec applies to all sizes unless listed separately
- Frameset
- Specifications, *Mainframe Size: S, XL, L, M
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork Size
- S, XL, L, M
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
- Shock Size
- S, XL, L, M
Fox Factory Float X, 205mm x 60mm
Wheels: Specifications, *Front Wheel Size: S, XL, L, M, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29", *Rear Wheel Size: S, XL, L, M
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5"
- Rear Skewer Size
- S, XL, L, M
Bontrager Switch thru axle, removable lever
- Tire Size
- S, XL, L, M
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, Maxxgrip, folding bead, 29x2.5''
- Size
- S, XL, L, M
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, Maxxterra, folding bead, 27.5x2.5''
- Tire Part Size
- S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size Frame
- 29x2.50", Fork: See manufacturer
Drivetrain: Specifications, *Shifter Size: S, XL, L, M, Shimano XT Di2 M8250, 12 speed, *Rear Derailleur Size: S, XL, L, M
Shimano XT M8250, long cage
- Crank Size
- S, XL, L, M
Shimano XT 8200, 30T, 55mm chainline, 170mm length
- Bottom Bracket Size
- S, XL, L, M
Shimano BB-MT501 BSA
- Cassette Size
- S, XL, L, M
Shimano XT M8200, 10-51, 12 speed
- Chain Size
- S, XL, L, M
Shimano XT M8100, 12 speed
- Max chainring size 1x
- 34T round, 32T oval, min 30T, 32T oval
Specifications
- Saddle Size
- S, XL, L, M
Verse Short Comp, steel rails, 145mm width
- Seatpost Size
- S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
- Size
- M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
- Size
- XL, L
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length
- Handlebar Size
- S, XL, L, M
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips Size
- S, XL, L, M
Trek Line Elite, lock-on
- Stem Size
- S, XL, L, M
Bontrager Elite, 35mm, 0 degree, 45mm length
- Brake Size
- S, XL, L, M
Shimano XT M8200 4-piston hydraulic disc
- Brake Rotor Size
- S, XL, L, M
Shimano RT86, 6-bolt, 203mm
- Size
- S, XL, L, M
Shimano RT86, 6-bolt,…
