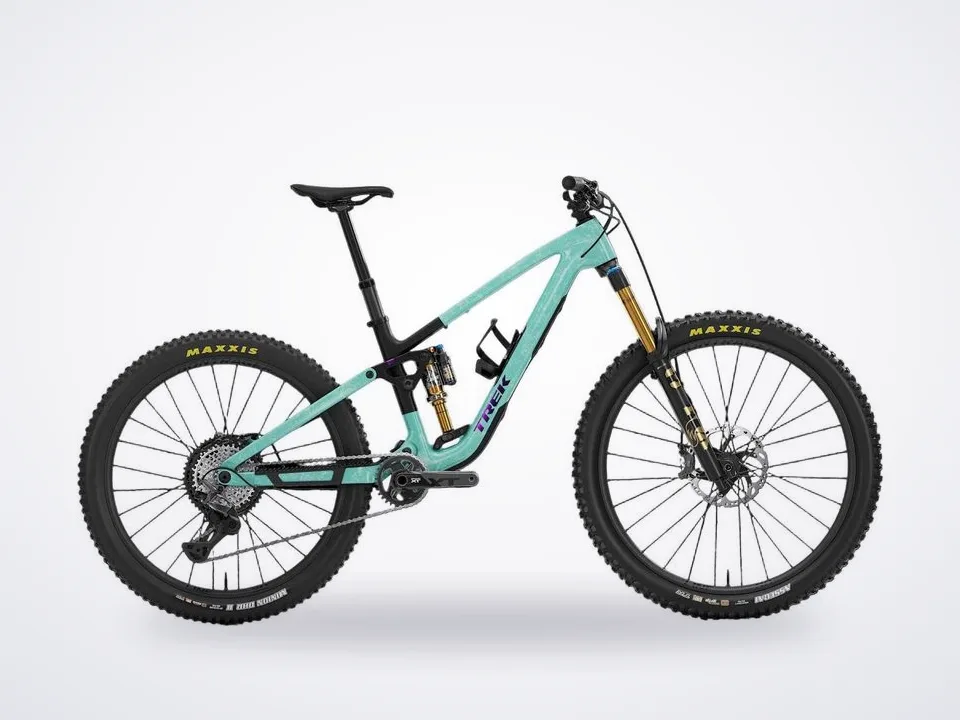

Trek Fuel MX 9.8 XT Full Suspension Trail
In stock at 1 shop in Edmonton
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Trek Fuel MX 9.8 XT (Gen 7) Full Suspension Trail Bike 2027
Fuel MX 9.8 XT is a chaos-craving carbon trail bike built for hitting bonus features. It starts off with an OCLV Mountain Carbon frame, spec’d with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting wild on the trail. A mechanical Shimano XT M8200 12-speed drivetrain gives you clean, reliable shifting, and 4-piston Shimano XT M8220 brakes provide excellent modulation and stop-on-a-dime power.
Specifications
- Please note
- spec applies to all sizes unless listed separately
Show full description and specs
Frame
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
- Size
- S, M, L, XL, Xxl
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
- Size
- S, M, L, XL, Xxl
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt, 160mm travel
Fox Factory Float X, 205mm x 60mm
Wheels: Wheel front, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29", Wheel rear
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29''
Bontrager Switch thru axle, removable lever
- Tire
- Size
- S, M, L, XL, Xxl
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, Maxxterra, folding bead, 27.5x2.5''
- Size
- S, M, L, XL, Xxl
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, Maxxgrip, folding bead, 29x2.5''
Max tire size
- Frame
- 29x2.50", Fork: See manufacturer
Drivetrain
- Shifter
- Shimano XT M8200, 12 speed
Rear derailleur: Shimano Deore M8200, long cage, *Crank, Size: S, M, L, XL, XXL, Shimano XT 8200, 30T, 55mm chainline, 170mm length
- Size
- S, M, L, XL, Xxl
Shimano XT M8200, 30T, 55mm chainline, 165mm length
- Bottom bracket
- Shimano BB-MT501 BSA
- Cassette
- Shimano XT M8200, 10-51, 12 speed
Chain: Shimano Ultegra/XT M8100, 12 speed, Max chainring size, See service manual, Components
Saddle: Verse Short Comp, steel rails, 145mm width, *Seatpost, Size: S, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
- Size
- M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
- Size
- L, XL, Xxl
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length
- Handlebar
- Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips
- Trek Line Elite, lock-on
- Stem
- Bontrager Elite, 35mm, 0 degree, 45mm length
Brake: Shimano XT M8220 4-piston hydraulic disc, *Brake rotor, Size: S, M, L, XL, XXL, Shimano RT86, 6-bolt, 203mm
- Size
- S, M, L, XL, Xxl
Rotor size
- Max brake rotor sizes
- Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- Weight limit, This…
