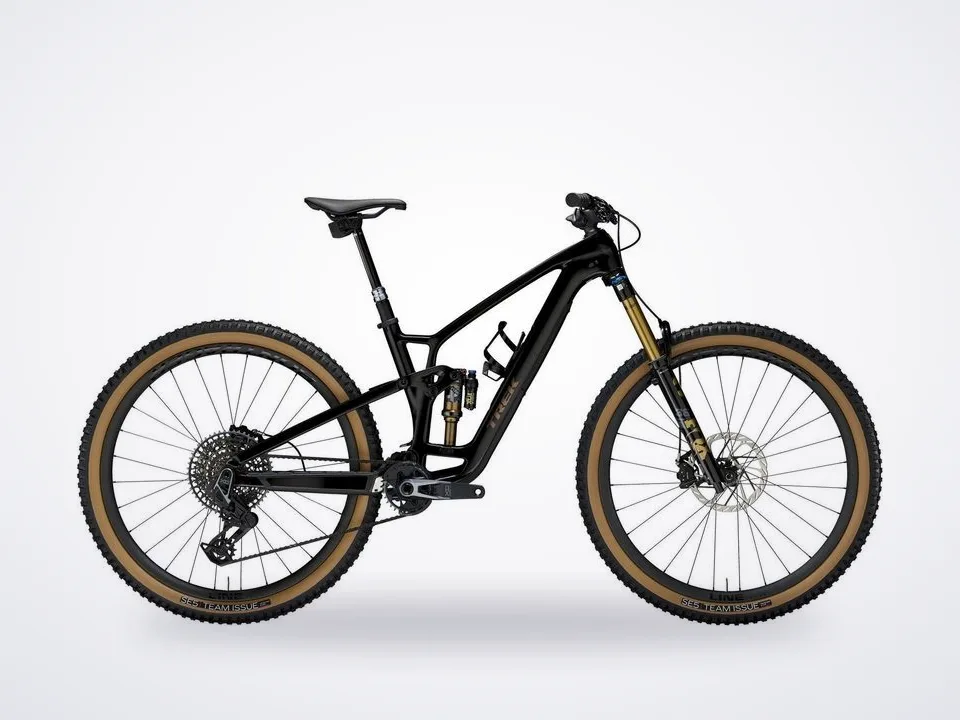

The Fuel EX 9.9 X0 AXS is a top-tier trail bike built for riders who have an appreciation for the finest things in life. It combines a cream-of-the-crop carbon frame with top-tier components, from the carbon fibre wheels all the way up to the 150 mm Kashima-coated FOX Factory fork and rugged, fully wireless SRAM X0 transmission. It's a bike that rules the mountain and doesn't hesitate to lay claim to its domain, ripping up rock gardens, blasting berms and rocketing back to the top to conquer it all once again.

Show full description and specs

Technology

Internal Storage: Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

Specification

Frame: OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel OCLV Mo

Frame Material: Carbon
Rim Size: 27.5
Fork: Fox

Fork: Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 180 mm direct mount brake tab, 140 mm travel Fox Factory 36, Float EVOL air spring, GRIP X2 damper

Rearsuspension: Fox
Suspension Rear: Fox Factory Float X, 2-position damper, 185 mm x 55 mm
Wheels: Bontrager Line Pro 30

Tires: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50" // Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5 x 2.50"

Shifter: SRAM
Derailleur Rear: SRAM X0 Eagle AXS, T-Type
Crank: SRAM X0 Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length
Bottom Bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Chain: SRAM X0 Eagle, T-Type, 12-speed
Brake: SRAM

Brakeset: SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc

Brake Rotor: SRAM HS2, 6-bolt, 180mm
Saddle: Verse Short Pro, carbon rails, 145 mm width
Seatpost: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Stem: Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length

Headset: Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
