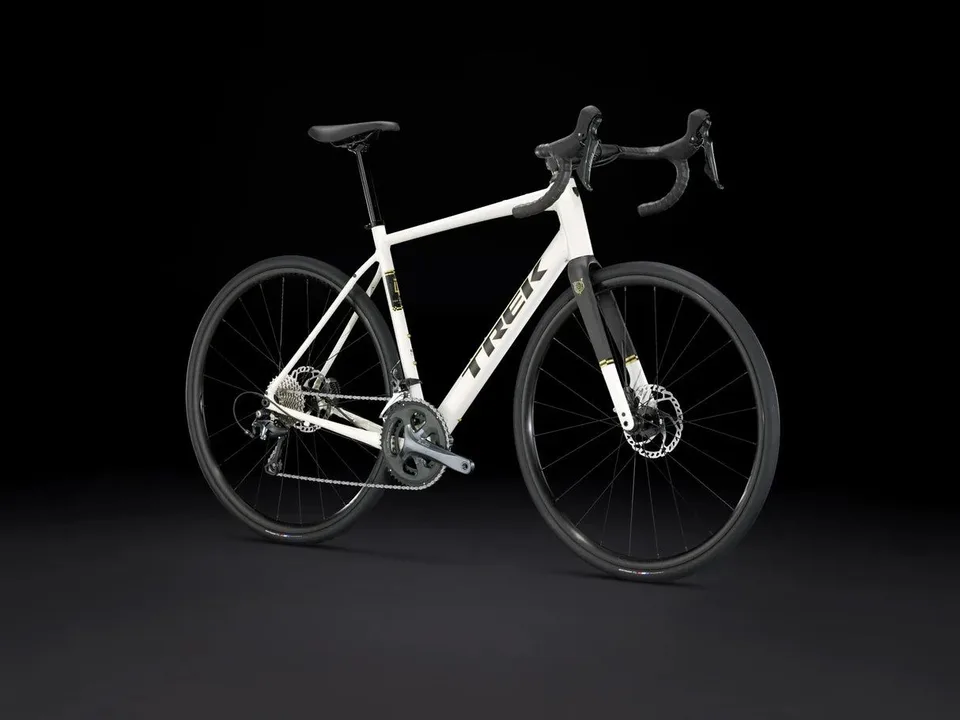

Trek Domane AL4
In stock at 1 shop in New York City
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Domane AL 4 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, a 10-speed Shimano Tiagra drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 4 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.
Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Show full description and specs
Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Weight
- Weight
- 56 - 10.35 kg / 22.82 lbs, Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Drivetrain
- Shifter
- Shimano Tiagra R4720, 10 speed
- Front derailleur
- Shimano Tiagra 4700, 31.8mm clamp
Rear derailleur: Shimano Tiagra 4700, long cage, 34T max cog, *Crank, Size: 44, Shimano Tiagra 4700, 50/34, 165mm length
- Size
- 49, 52
Shimano Tiagra 4700, 50/34, 170mm length
- Size
- 54, 56
Shimano Tiagra 4700, 50/34, 172.5mm length
- Size
- 58, 61
Shimano Tiagra 4700, 50/34, 175mm length
- Bottom bracket
- Shimano RS501 BSA
- Cassette
- Shimano HG500, 11-32, 10 speed
- Chain
- Shimano Tiagra HG54, 10 speed, Max chainring size, 1x: 50T, 2x: 50/34
Wheels: Hub front, Formula RX-512 alloy, 6-bolt, 100x12mm thru axle, Skewer front, Bontrager Switch chamfered thru axle
Hub rear
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Bontrager Switch chamfered thru axle, removable lever
- Rim
- Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
- Spokes
- 14g stainless steel, black
- Tire
- Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm, Components
Saddle: Verse Short, steel rails, 145mm width, *Seatpost, Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
- Size
- 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2mm, 8mm…
