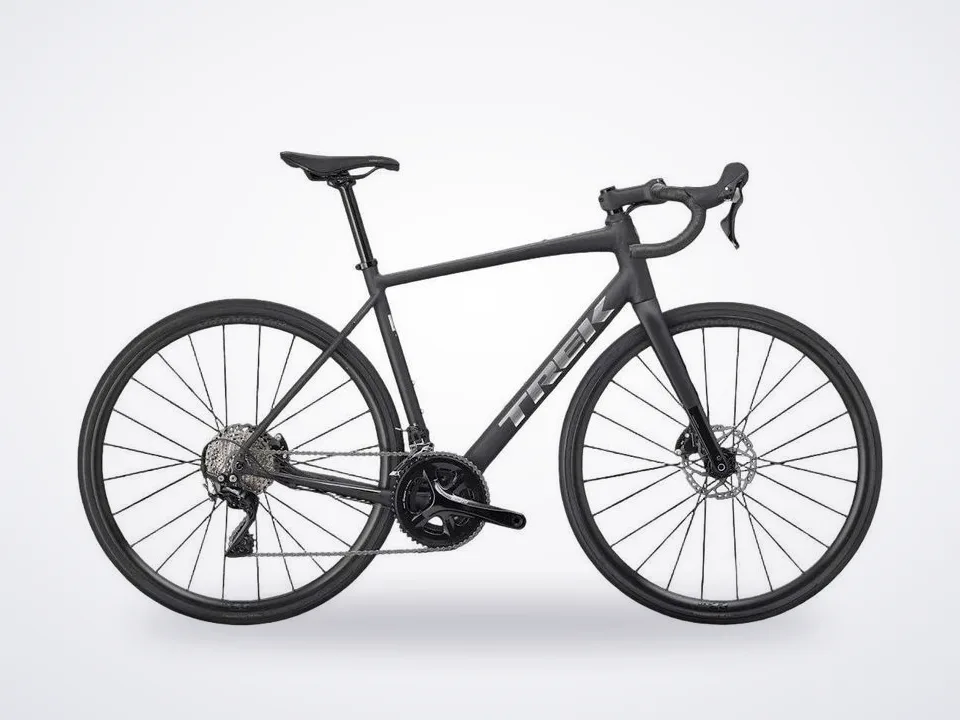

Trek Domane AL 4 Performance
In stock at 1 shop in Edmonton
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Trek Domane AL 4 (Gen 4) Performance Road Bike 2027
Domane AL 4 is a versatile road bike that’s ideal for riders looking to go faster and farther on every ride. Its Alpha Aluminum frame and all-day comfort geometry pair with an 11-speed Shimano Tiagra drivetrain for smoother shifting and better range than entry-level builds. With top tube mounts, larger tire clearance, and confident handling, it’s ready for everything from long group rides to adventurous gravel detours.
Specifications
- Please note
- spec applies to all sizes unless listed separately
Show full description and specs
Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Weight
- Weight
- 56 - 10.10 kg / 22.27 lbs, Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Drivetrain
- Shifter
- Shimano Tiagra R4020
Front derailleur
Shimano Tiagra R4000, dolní tah.
Rear derailleur: Shimano Tiagra R4000, *Crank, Size: 44, 49, 52, 54, 56, Shimano Tiagra R4000, 50/34, 165mm length
- Size
- 58, 61
Shimano Tiagra R4000, 50/34, 170mm length
- Bottom bracket
- Shimano RS501 BSA
- Cassette
- Shimano RS400, 11-36, 11 speed
- Chain
- Shimano LG500, Max chainring size, 1x: 50T, 2x: 50/34
Wheels: Hub front, Formula RX-512 alloy, 6-bolt, 100x12mm thru axle, Skewer front, Bontrager Switch chamfered thru axle
Hub rear
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Bontrager Switch chamfered thru axle, removable lever
- Rim
- Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
- Tire
- Bontrager Kwaremont Comp, Hardcase Lite, wire bead, 60 tpi, 700x32mm, Components
Saddle: Verse Short Comp, steel rails, 145mm width, *Seatpost, Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
- Size
- 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
- Handlebar
- Size
- 44
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
- Size
- 49, 52
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
- Size
- 54, 56, 58
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
- Size
- 61
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Trek EcoTack
- Stem
- Size
- 44
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
- Size
- 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
- Size
- 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
- Size
- 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Size
- 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Rotor size
- Max brake rotor sizes
- 160mm front & rear
We reserve the right to make changes to the…
