Trek Check-OUT SL 5
In stock at 5 shops in Edmonton and Ottawa and Calgary and Edinburgh
Prices and stock checked Oct 22.
Where to buy
5 shopsIn Canada
In the UK
About this bike

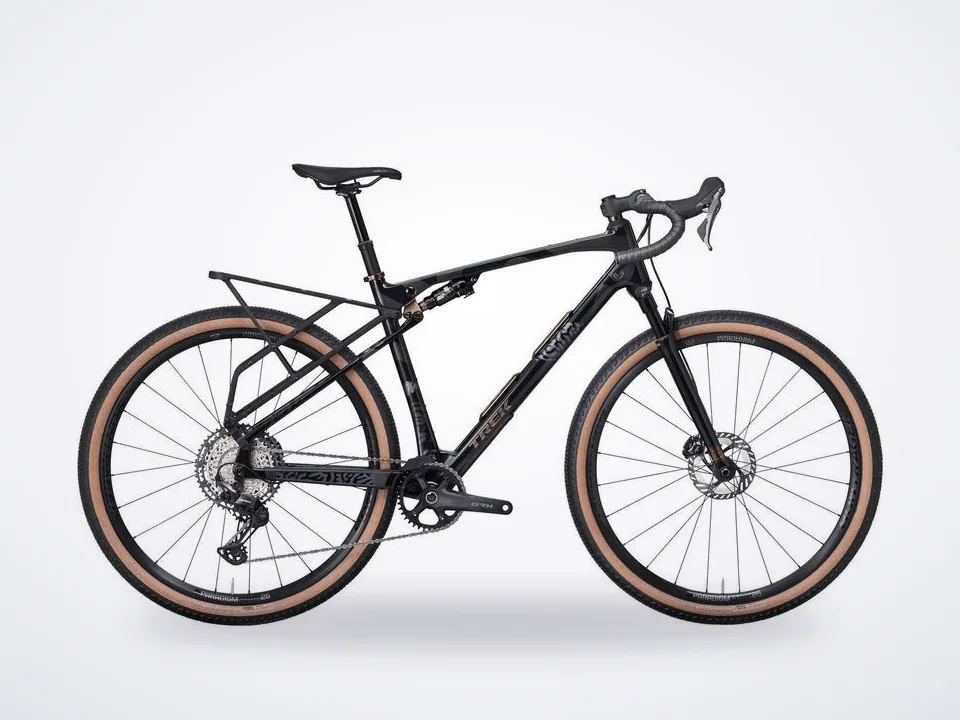

Trek Check-OUT SL 5 Gravel Bike 2027
CheckOUT SL 5 is an adventure-ready full suspension gravel bike for getting way, way out there. Its carbon frame delivers 55mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain, and TranzX dropper post.
Specifications
- Please note
- spec applies to all sizes unless listed separately
Show full description and specs
Frame
500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel
Fork
RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel
Weight
Weight: ML - 12.74 kg / 28.09 lbs (with TLR sealant, no tubes, excluding rear rack), Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Drivetrain
- Shifter
- Shimano GRX RX820, 12 speed
Rear derailleur: Shimano GRX RX822, 51T max cog, *Crank, Size: S, Shimano GRX RX610, 38T, 160mm length
- Size
- M, ML
Shimano GRX RX610, 38T, 170mm length
- Size
- L, XL
Shimano GRX RX610, 38T, 172.5mm length
- Bottom bracket
- Praxis, T47 threaded, internal bearing
- Cassette
- Shimano XT M8200, 10-51, 12 speed
- Chain
- Shimano XT M8100, 12 speed, Max chainring size, 1x: 38T
Wheels: Wheel front, Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle, Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Bontrager Switch chamfered thru axle, removable lever
Tire: Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x50mm, Tire part, Bontrager TLR sealant, 180 ml/6 oz, Rim strip
Components
- Saddle
- Verse Short Comp, steel rails, 145mm width
Seatpost: TranzX JD-YSI36, 100mm travel, internal routing, 31.6mm, 328mm length, *Handlebar, Size: S, Bontrager GR Checkout, 42cm
- Size
- M
Bontrager GR Checkout, 44cm
- Size
- ML, L
Bontrager GR Checkout, 46cm
- Size
- XL
Bontrager Supertack Perf tape
- Stem
- Size
- S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
- Size
- ML, L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
- Size
- XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Rotor size
- Max brake rotor sizes
- 180mm front & rear
Checkout rear rack
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing.
Bike and frame weights are based off…
