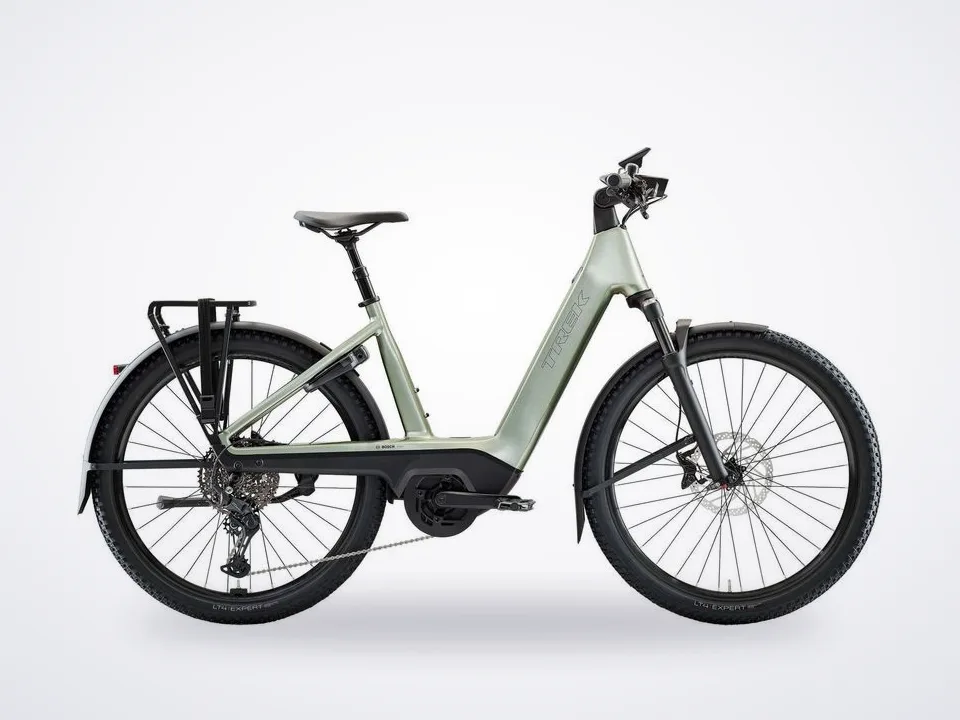

Trek Charter+ 4 Trail 800 Wh Lowstep
In stock at 2 shops in Edinburgh
Prices and stock checked Oct 22.
Where to buy
2 shopsAbout this bike
The Charter+ Trail 800 Wh low-step is an adventure-ready city e-bike designed to give you a boost wherever you explore. It comes ready to ride off the beaten track with a 9-speed Shimano CUES drivetrain, 80 mm coil-sprung fork, off-road ready wheels and tyres, and flat handlebars with 5 mm of rise for control getting up and over potholes and kerbs. A Bosch Performance Line motor with a huge 800 Wh battery lets you explore far out there, and still have plenty of power for the ride back.
Show full description and specs
Technology
Assembled in Germany: Explore the factory in Saxony, Germany, where every European Trek, Electra, and Diamant bike is built.
Specification
Frame: Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR
- Frame Material
- Aluminium
- Rim Size
- 27.5
- Fork
- SR Suntour
Fork: SR Suntour XCR32, tapered steerer tube, coil spring, preload adjuster, lockout,100mm QR, 80mm travel
- Tires
- Bontrager Connection Elite, reflective strip, wire bead, 60 tpi, 27.5x2.40"
- Hub Front
- Shimano Tourney HB-QC300, centerlock
- Hub Rear
- Shimano TC500-HM
Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
- Shifter
- Shimano
- Shifters
- Shimano U4000, 9 speed
- Crank
- ProWheel alloy, 170 mm length
- Cassette
- Shimano Linkglide LG300, 11-46, 9-speed
- Chain
- Shimano LG500, 9/10/11-speed
- Brake
- Shimano
- Brakeset
- Shimano MT200 hydraulic disc
- Brake Rotor
- Shimano EM300, CentreLock, 180 mm
- Pedals
- Bontrager City pedals
- Saddle
- Bontrager Commuter Comp
- Seatpost
- Alloy, suspension, 31.6 mm, 300 mm length
- Handlebar
- Bontrager alloy, 31.8mm, 5mm rise, 720 width
- Stem
- Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length
- Grips
- Trek Ergonomic Comp, lock-on
- Fenders
- Trek Charter alloy mudguard
- Kickstand
- Pletscher Comp Flex 40
- Battery
- Bosch PowerTube 800Wh, smart system
- Controller
- Bosch Purion 200
- Motor
- Bosch Performance Line, 250W, 75Nm, 20mph
- Size Chart Rider Height
- Rider Height - 170.0 - 185.0
- Size Chart Rider Inseam
- Inseam - 80.0 - 99.0
