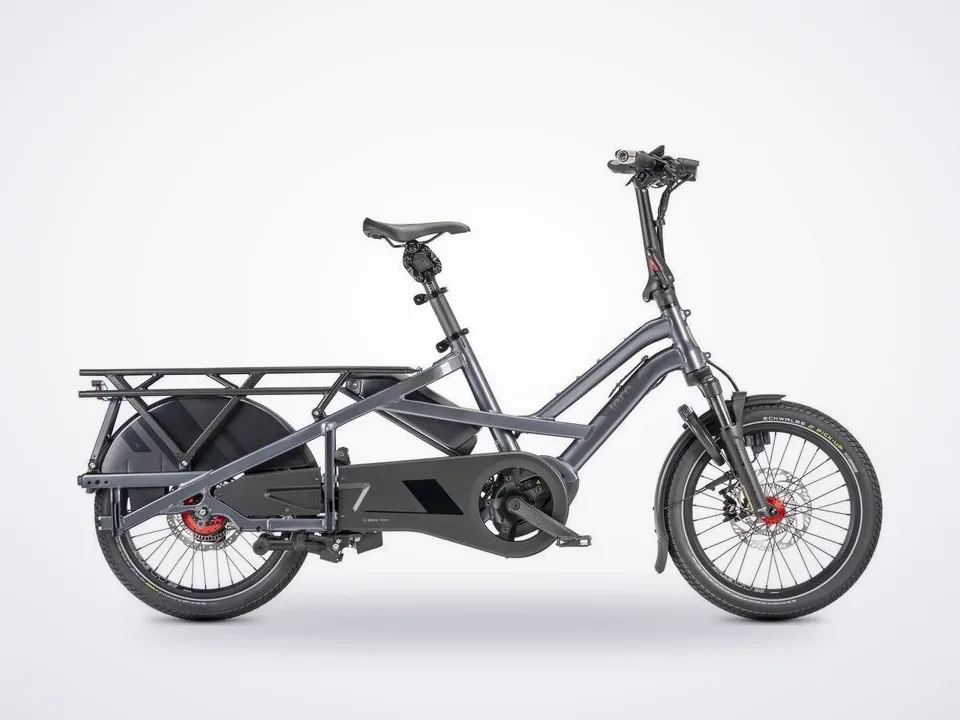

Tern GSD R14 Electric Cargo
$10,999
In stock at 1 shop in Philadelphia
Buy at Mechanic Bicycle Pro ShopPrices and stock checked Oct 22.
Where to buy
1 shopMechanic Bicycle Pro Shop1327 Darby Rd, Haverford Township, PA 19083 · Philadelphia · Directions
Ask the shop for sizes
$10,999
View About this bike
What makes it an R14?
- Bosch Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more
- Bosch Anti-Lock Braking System enables safer, more efficient braking
- Dual-battery compatible, ready to power through heavy use and long distances of up to 288 km (179 mi)
- Silent, smooth, and low-maintenance Gates Belt Drive
- Maintenance-free Rohloff E-14 electronic shifter with a huge 526% gear range, perfect for tackling various terrains and riding styles with ease
Show full description and specs
GSD highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified Bosch e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
- EN 15194 compliant, European standard for Electrically Power Assisted Cycles (EPACs)
Frame & Build
- Frame
- Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 462 lb
Fork: Suntour custom for Tern, 1.5" tapered chromoly steerer, 34 mm stanchions, thru-axle, DIN 79010 certified: 210 kg
Cockpit: Tern Physis 3D handlepost, Tern Andros adjustable stem, Tern Sweep handlebar, Tern VLT seatpost with Cane Creek suspension
- Folding
- Folds in 5 seconds; folded size 185 x 46 x 88 cm (72.8 x 18.1 x 34.6 in)
Drivetrain & Motor
- Motor
- Bosch Cargo Line, 250 W nominal, 85 Nm torque, 400% support
Battery: Bosch 800 PowerPack, Fast Swap, dual-battery bays, optional 2 x 800 Wh (1600 Wh) max capacity
- Display
- Bosch Kiox 300 color display with LED remote
- Range
- 42-89 mi on 800 Wh; 83-179 mi on 1600 Wh
- Anti-Lock Braking
- Bosch ABS, Gen 2
- Shifter
- Rohloff E14, electronic 14-speed, 526% gear range
- Drive
- Gates Carbon Drive CDX belt, Gates CDX CNC machined beltring
Brakes: Front & Rear: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor, Levers: Magura MT-C e-stop with brake light sensor, Wheels & Tires, Rims: Tern Atlas, ultra-wide 36 mm, dual reinforced joint
- Front Hub
- Tern Atlas with cooling fins, Boost thru-axle
- Rear Hub
- Rohloff E14, 526% range, Boost
- Tires
- Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex
Capacity & Weight
- Bike Weight
- 38.77 kg (85.5 lb)
- Max Gross Vehicle Weight
- 210 kg (463 lb)
- Max Rider Weight
- 130 kg (286.6 lb)
- Rear Rack Capacity
- 100 kg (220 lb)
- Suggested Rider Height
- 153-200 cm (60.2-78.7 in)
Geometry
- Overall Length
- 192 cm (75.6 in)
- Overall Width
- 68 cm (26.8 in)
- Overall Height
- 118 cm (46.5 in)
- Wheelbase
- 136 cm (53.5…
