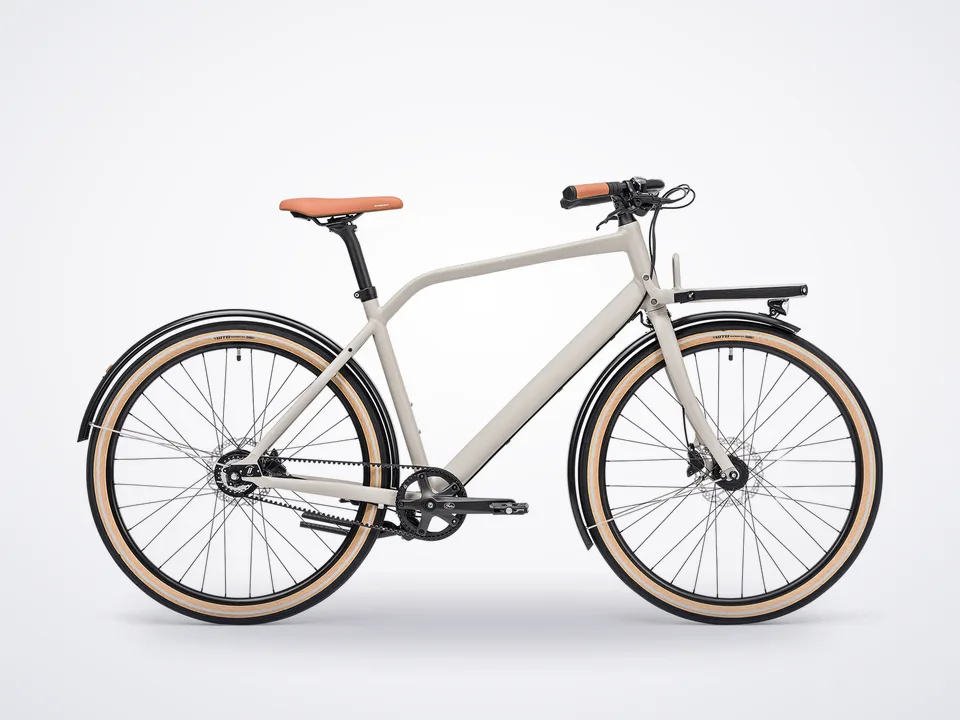

Schindelhauer Gustav 8 Gates Carbon Belt Drive Commuter
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
With a practical, functional but reduced design, Gustav is an urban all-rounder built to make the lives of everyday commuters easier. A key design highlight is the built-in front rack with its clever strap system. The rack is attached to the head tube and won’t upset the balance as you steer around corners. We’ve also designed an extremely adaptable strap system for the rack, so you can be sure that anything from picnic baskets to parcels remain securely fastened. Even with heavier objects on board, Gustav glides effortlessly through the city streets and you can enjoy a smooth ride.
Show full description and specs
The new frame geometry we’ve developed for Gustav uses a longer head tube and shorter stem for a more comfortable cycling position. It is possible to attach a child seat onto the seat tube, as well as a Thule trailer onto the rear axle. Wider tyres also make for a comfier ride and mean cobblestones or uneven surfaces are no longer something you need to avoid.
- 8-speed Shimano-Nexus
- Comfortable riding position
- 15 kg payload capacity on front rack
- Front rack surface area
- 35 cm x 26 cm x 20 cm (W x D x H)
- Child seat mounting possible
Feature List
Frame: Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded
- Fork
- curved aluminium fork for disc brake mount
- Headset
- Tange Seiki - integrated, 1 1/8
- Power transmission
- Gates Carbon Drive - CDN, front 46T, rear 24T, belt 115T
- Gear shift
- Shimano - Nexus 8-speed
- Crank set
- Gates Carbon Drive - S150
- Bottom bracket
- THUN - Zumba
- Pedals
- VP - Nylon, with grip tape
- Stem
- Schindelhauer
- Handlebar
- Schindelhauer - Jane, Aluminium
- Saddle
- Schindelhauer
- Seat post
- Schindelhauer
- Grips
- Schindelhauer
Wheels: Shimano - DH-T4050 hub dynamo, Shimano Nexus 8-speed, Alexrims - DP23 27,5“ rims, Sapim spokes, 3-cross and 2-cross laced
- Brakes
- Shimano – MT200 disc brakes (hydraulic) 160 mm
- Tyres
- WTB - Horizon 47 - 584, with reflex stripes
- Weight
- 13.0 kg
- Max. total weight
- 130 kg (bike + rider + luggage)
- Mudguards
- Curana – Apollo (extrusion profile mudguards)
- Pannier rack
- Schindelhauer - aluminium , frame mounted, with VarioStraps
- Lighting
- Busch und Müller Lumotec Eyc N Plus front and ILU jr. rear
Additional features: Pletscher Twin stand Mounting of bottle cage or lock onto the frame is possible Attaching a child seat onto the seat tube is possible Installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information
We reserve the right to make minor changes to features without prior notice.
